Description

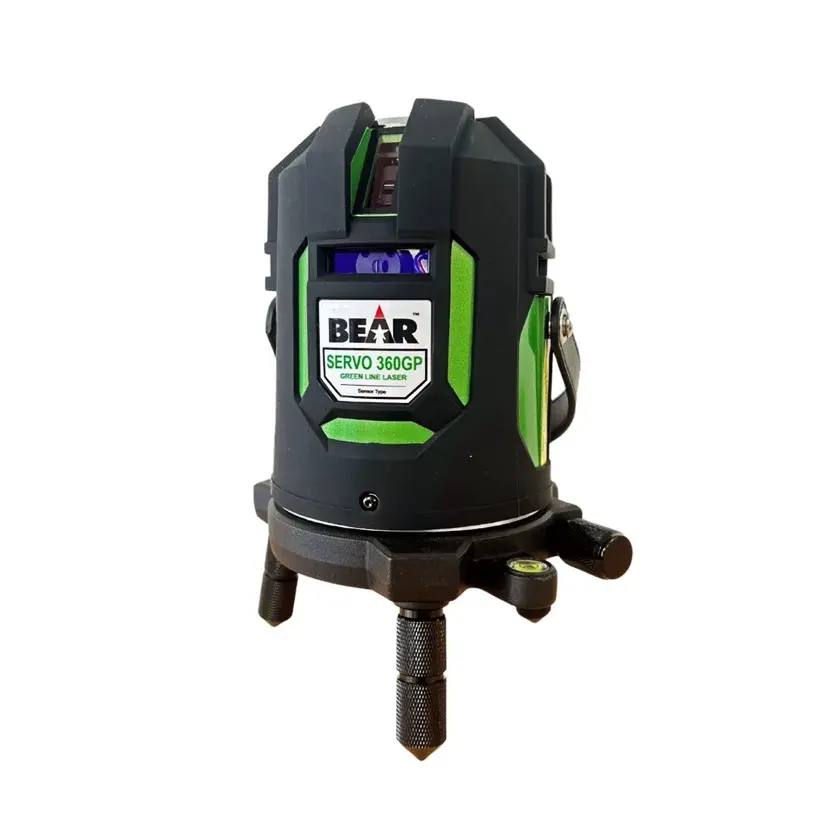

Bear Servo 360GP Green Beam Multiline Laser Level

Suggested Mount:  geo-FENNEL MH 1 Multi-Functional Mount For Line and Dot Lasers

Receiver Options

• Add on Bear Green Line Laser Receiver
• Add on Onyx Omni60 universal “mm” receiver
• Add on geo-FENNEL FR 75-MM

For longer range, or outdoor use, this laser can be used with a laser receiver.
Options mentioned above are:

Add on Bear Green Line Laser Receiver

Basic Laser level receiver, to suit LL6Mini and Servo360 lasers. Includes battery and clamp.

Add on Fluke PLS XLD+

The PLS XLD+  is a digital mm receiver, which works with both a rotary and line lasers whether green beam or red beam. Its working range is, Rotary Radius: 200m and Line Radius: 75m. Its detection Height is 60mm.

Add on geo-FENNEL FR 75 MM Receiver

The FR 75MM, is a digital mm receiver, which can work all red and green multi line lasers. It boasts a extra long receiving window of 100mm with a accuracy in mm-indication of ± 1 mm.

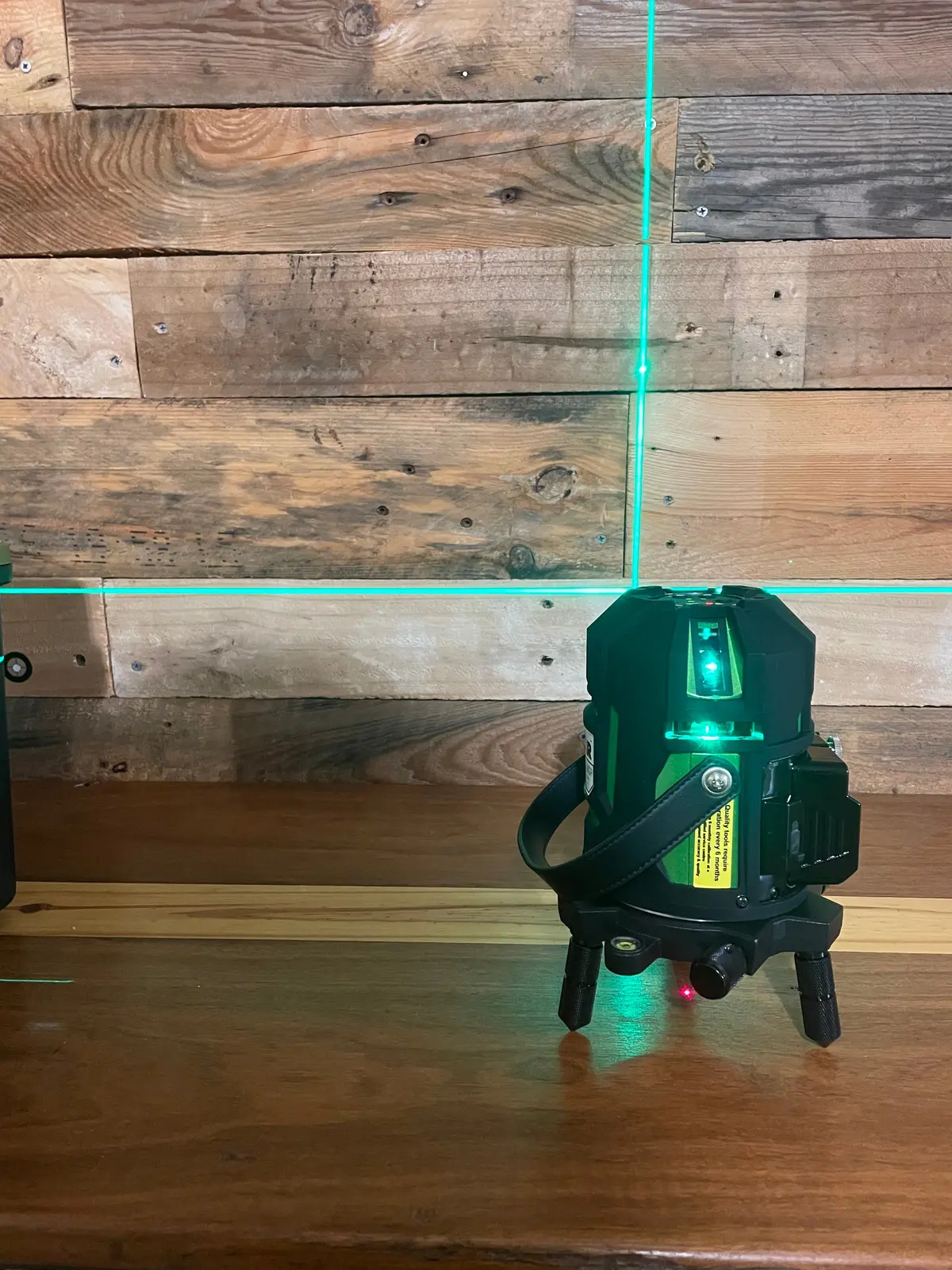

The most compact and accurate green beam auto levelling set out laser on the market. The professional trade tool is suitable for all interior layout and engineering applications. Additionally, with a receiver option, it can be used outside up to 80 meters away for squaring, levelling and vertical work.

FEATURES

• Electronic compensator ensures quick and accurate self-leveling.
• When using outdoors, the receiver will pick up the laser lines a distance of up to 80 meters away from the laser.
• Manual slope function for 1 axis, for small drainage or landscaping tasks
• Laser brightness adjustment to save battery life
• A sophisticated software system with temperature compensation.
• LED indication beam selection, tilt direction, levelling status and Low power indication

INCLUDES

• Heavy duty carry case
• Laser glasses
• Target

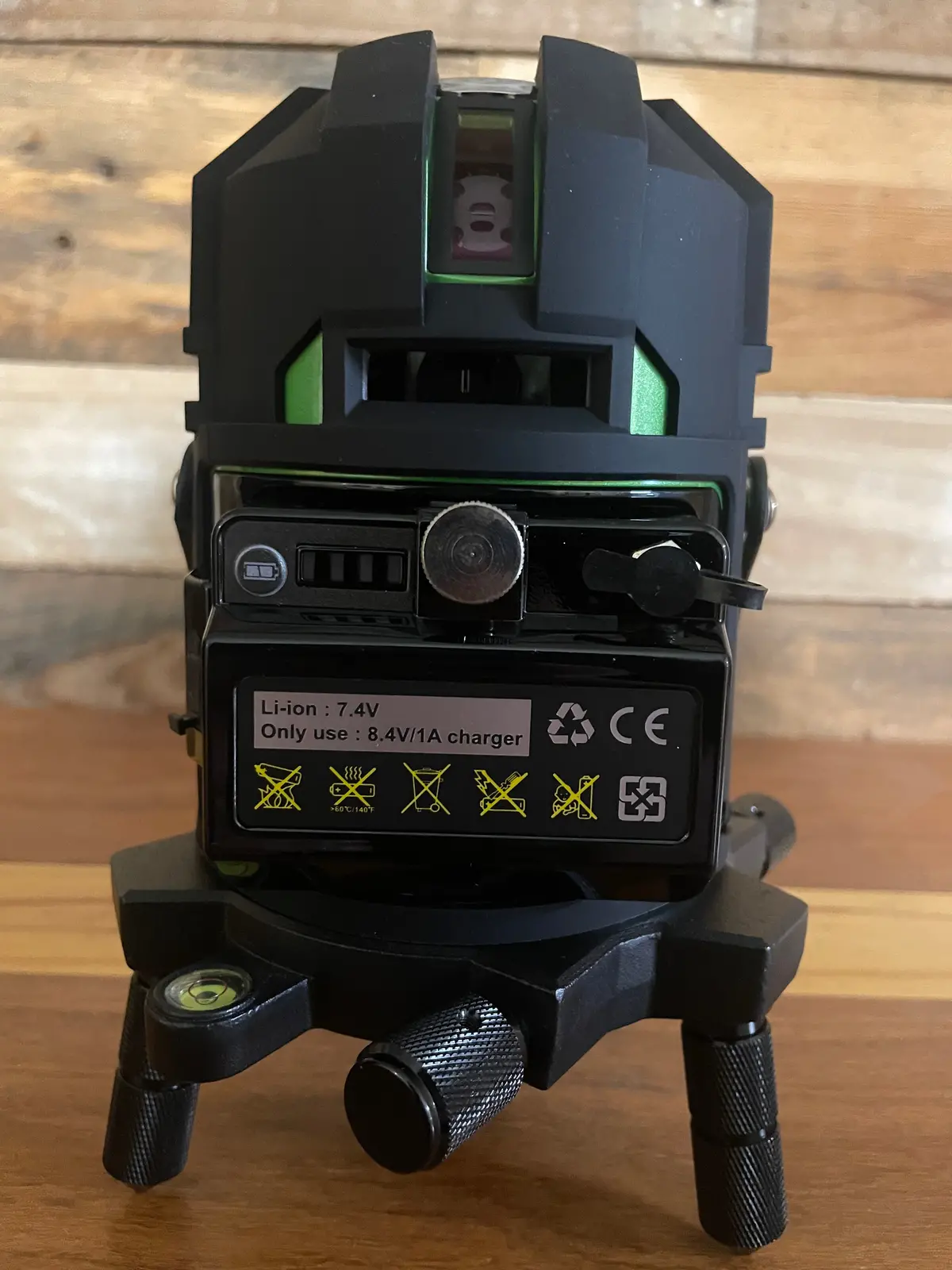

• Rechargeable batteries and charger
• Optional receiver available for external use (Bear B-LLR Receiver) with 1 year warranty

SPECIFICATION

Light Sources	635nm laser diode/floor point 650nm
Anti-dust and water	IP-54
Accuracy	+1mm/10m
Self-leveling range	+5°
Working range(with detector)	360° rotation/360° fine adjustment mechanism
Power supply	4xAA Batteries/rechargeable batteries/AC adaptor
Service time	Approx 5-10 hours with all lines ON
Mounting thread	5/8″ x 11 female
Operating temperature	-10 ° c-+40°c
Weight	1.9kgs
Size	152x223mm
