Name: CHCNAV I93 GNSS Base Station Kit with DL8 Datalink and UHF Whip Antenna
Brand: CHCNAV
SKU: 8001010367
Availability: InStock

Description

CHCNAV DL8

Radio Modem for GNSS Corrections

Highlights
The DL8 UHF radio modem provides reliable base-to-rover GNSS RTK corrections over long distances. Designed for harsh environments, it supports up to 28 W of adjustable output power, ensuring robust communication even in challenging conditions. With customizable frequency channels and a rugged IP67-rated enclosure, the DL8 is an essential tool for surveyors requiring dependable and high-performance data links

Main Features

Adjustable Power
6 levels from 5 W to 28 W, adapting to your environmental conditions.

Frequency Range
Operate across 410 MHz to 470 MHz.

Rugged
IP67-rated for durability in harsh environments.

Multiple Protocols
CHC, Transparent, and TT450S for versatile data transmission.

Benefits and Performances

Wide Frequency Range
Operate over 410 MHz to 470 MHz frequency range. The DL8 supports multiple frequency channels, providing flexibility and compatibility with different GNSS receivers and ensuring optimal performance in different environments.

High Power UHF Data Link
Ensure reliable communications with the DL8’s high power output, adjustable from 5 W to 28 W. Operators can adjust the power level to suit specific environmental conditions, ensuring consistent GNSS RTK corrections over long distances.

Advanced Communication Protocols
Supports industry standard UHF protocols including CHC, Transparent and TT450S. The DL8 is compatible with a wide range of GNSS receivers and data formats, expanding its versatility in a variety of applications.

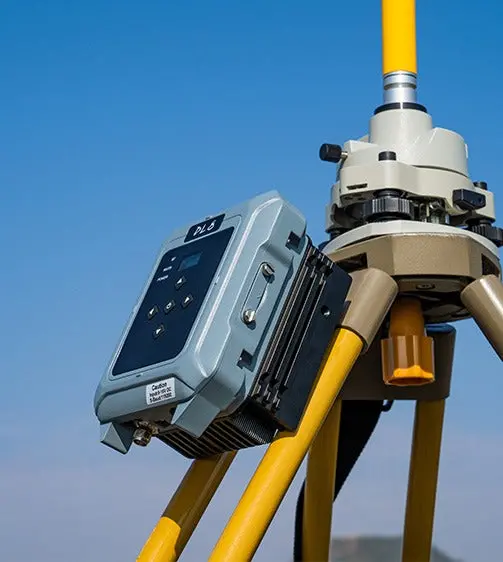

Efficient Data Transmission
The DL8 features high link rates of 4800 bps, 9600 bps and 19200 bps for efficient data transmission, maintaining the integrity and accuracy of GNSS RTK corrections over long distances.

Extensive Channel Support
Manage up to 200 editable channels with the DL8 and take advantage of channel selection flexibility for seamless operation in a variety of survey environments.

Weather-Resistant Design
The DL8’s rugged IP67-rated enclosure is dust and water resistant. This robust design ensures reliable performance in the harsh conditions of outdoor surveying.

Specification

Connectivity
Modem : 410-470 MHz, Rx/Tx
Environmental
Protection rating : IP67
Physical
Weight : 2 kg
Dimensions : 175 x 140 x 65 mm

CHCNAV i93 Advanced IMU-RTK with Visual Surveying

Highlights

The i93 Visual IMU-RTK GNSS receiver combines advanced GNSS, IMU, and dual-camera video-photogrammetry to deliver a superior user experience. Its 3D visual stakeout and offset measurement features boost efficiency on construction sites. Powered by the CHCNAV iStar algorithm, it uses multi-band GNSS channels and hybrid positioning for reliable accuracy in challenging environments, making it a versatile tool for any project.

Main Features

Visual Surveying

Dual cameras extract survey-grade 3D coordinates improving measurement efficiency.

Visual Stakeout

Guidance by a clear, eye-catching directional information.

3D Modeling

Dynamic panoramic video capture.

Auto-IMU Technology

200 Hz Auto-IMU for automatic pole tilt compensation.

Benefits and Performances

AR Visual Stakeout

The i93 cameras provide an immersive 3D visual stakeout experience. With the 3D visual view, surveyors are guided by a clear, bold directional arrow and real-time distance to the stakeout point and lines marked directly on the ground.

3D Visual Surveying

The i93 quickly delivers survey-grade 3D coordinates from real-world video capture, making it easy to survey hard-to-reach, signal-obstructed, or hazardous points in the field—such as areas under overpasses, eaves, or near power poles.

3D Modeling

By merging drone data with the i93’s dynamic panoramic video capture, 3D joint modeling of buildings and facades is easily achieved. Compatibility with standard 3D modeling software provides flexibility and convenience.

Auto-IMU Technology

The i93’s Auto-IMU provides simple and reliable pole tilt compensation, delivering accuracy to within 3 cm over a 60-degree tilt range without the need for manual initialization.

Superior GNSS Performance

Experience unmatched GNSS performance with the i93’s 1408-channel receiver. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations, the iStar2.0 algorithm provides over 96% reliable fix rate in areas of high solar activity.

Versatile Field Use

The i93 offers all the connectivity features a surveyor needs for any project scenario. Built-in Wi-Fi, Bluetooth, and NFC technologies ensure seamless connections to field data controllers. Integrated 4G and UHF modems support all GNSS RTK surveying modes.

Detailed Specifications

Positioning

GNSS : Full GNSS
IMU : 200 Hz
Precision max. : 0.8 cm H / 1.5 cm V

Sensors

Camera : Dual

Physical

Weight : 1.15 kg
Dimensions : 152 x 81 mm
Battery life : Up to 34 hours RTK rover

Connectivity

Wireless : Bluetooth, Wi-Fi, NFC
Cellular : 4G LTE
Modem : 410-470 MHz, Rx/Tx

Includes – i93 W/ DL8 Base Kit	1
i93 GNSS Receiver	1
UHF Whip Antenna(450-470MHz KQT450GT）	1
Type-C USB Cable	1
Transport Hard Case/ Base	1
Transport Hard Case Floam/AR	1
Transport Hard Case/ Base inner carton box	1
Transport Hard Case/ Base outer carton box	1
GNSS Receiver Case Label (CHCNAV)	1
Tribrach Adaptor	1
H.I. Tape	1
Tribrach w/ Opti	1
Extension Pole(30cm)	1
Auxiliary H.I. Tool (Silver)	1
Power Adapter (5V2.4A)	1
DL8 Datalink (410-470 MHz)	1
Datalink Power Cable (7-pin)	1
Datalink Antenna (QC450AL)	1
Datalink Antenna Mounting Pole Kit	1
Pole Mounting	1
