Description
OPTIONS:
Pre-alarm option
• Provides a pre-alarm set point
• (2) additional mechanical NO/NC relay outputs (8A);
External alarm Package
• Multi tone programmable electronic alarm (LVMT4-115-SBOX) (110 VAC)
000810-32 laser extension cable M12 M to F
• Male to Female
• 32 ft long
• 5 pin sealed threaded sealed connector
Override options:
LVX0072PKG 30mm inductive prox sensor, 5m cable, bracket
• Use as hoist side pull override detecting wire rope in lands of drum
• Purchaser responsible for making frame to mount
• Use as hoist side pull override detecting wire rope in lands of drum
• Purchaser responsible for making frame to mount
• 24 VDC; wire to controller; do not need override relay option
The Crane Sentry® Wire Rope Hoist Side Pull Detection is capable of detecting excessive side pull on a wire rope hoist and alerting the operator of the condition or disabling functions.
Reasons For Side Pull Detection
1. Damage to Hoist
Most standard hoists are not engineered to handle side pull load
2. Personnel Injury
Injury is possible if the load shifts once it is lifted from its resting place on the floor or a staging fixture
3. Damage to Equipment
Damage to nearby equipment is possible once the load shifts after it is lifted
Why Crane Sentry® Wire Rope Hoist Side Pull Detection?
- Usage of hoists for lifting loads in industrial applications has inherent risk, requiring the need for safety precautions
- If a load is not lifted directly vertical and is permitted to side load a hoist, referred to as “side pulling”
- Side pulling can damage to the hoist, injury to personnel, and/or damage to nearby equipment
- Detection of potential side pull conditions can be tied into hoist controls to not permit a lift under this condition
- Side pulling a hoist is not permitted by OSHA regulations under most conditions
- Many hoists installed in industry do not have any form of side pull protection installed
Our Solution
- Solid state side pull detection system consists of an
assembly that mounts to the wire rope - Mount assembly to the dead end (fixed end) or
around the equalizer sheave - Install on single or double reeved hoists
- Adapts to a range of wire rope diameters
- Controls mount to the hoist or trolley and provide an
intuitive menu driven interface - One button zero feature
- Set limits, timing, hysteresis
- Built in error logging (time and date); last 5 event
| CONTROL SPECIFICATIONS | ||
| Power Requirement | 0.5 A @ 110 VAC | |
| Number of Outputs | 2 | |
| Relay Output Type | SPST NO/NC; rated for 100k operations at max load | |
| Rated Current | 8A max per output | |
| Rated Voltage | 250 VAC | |
| Graphic Display Type | STN LCD, Backlight Illumination, 2 line display | |
| Operating Temp (Control Box) | 0ºC to 50ºC | |
| Storage Temp | -20ºC to 60ºC | |
| Memory Backup | 7 years typical at 25ºC | |
| Ingress Protection | IP65 | |
| Enclosure Material | Polycarbonate | |
| SENSOR SPECIFICATIONS | ||
| Max Measuring Range | +/- 90º per axis | |
| Measuring Axis | Output = Omnidirectional (combination of X and Y) | |
| Operating Temp | -40ºC to 85ºC | |
| Ingress Protection | IP67 | |
| Sensor Assembly | Fits wire ropes sizes 5-20mm | |
Includes
Controller P/N 001017-03
- Connects to (1) 2 axis sensor
- M12 quick connect cable
- Simple and intuitive menu driven controls show set point and live readings
- Set limits
- Manual zero feature;
- Set hysteresis, error time out, and delay
- Built in error logging (time and date); last 5 events
- 2) Mechanical NO/NC relay outputs (8A); behavior is user configurable
- X/Y omnidirectional axis limit (upper/lower)
- X/Y omnidirectional axis auxiliary limit (upper/lower)
- 110 VAC/220 VAC single phase power required; control box self-powers the connected sensors
- Polycarbonate wall mount sealed enclosure mounts on hoist

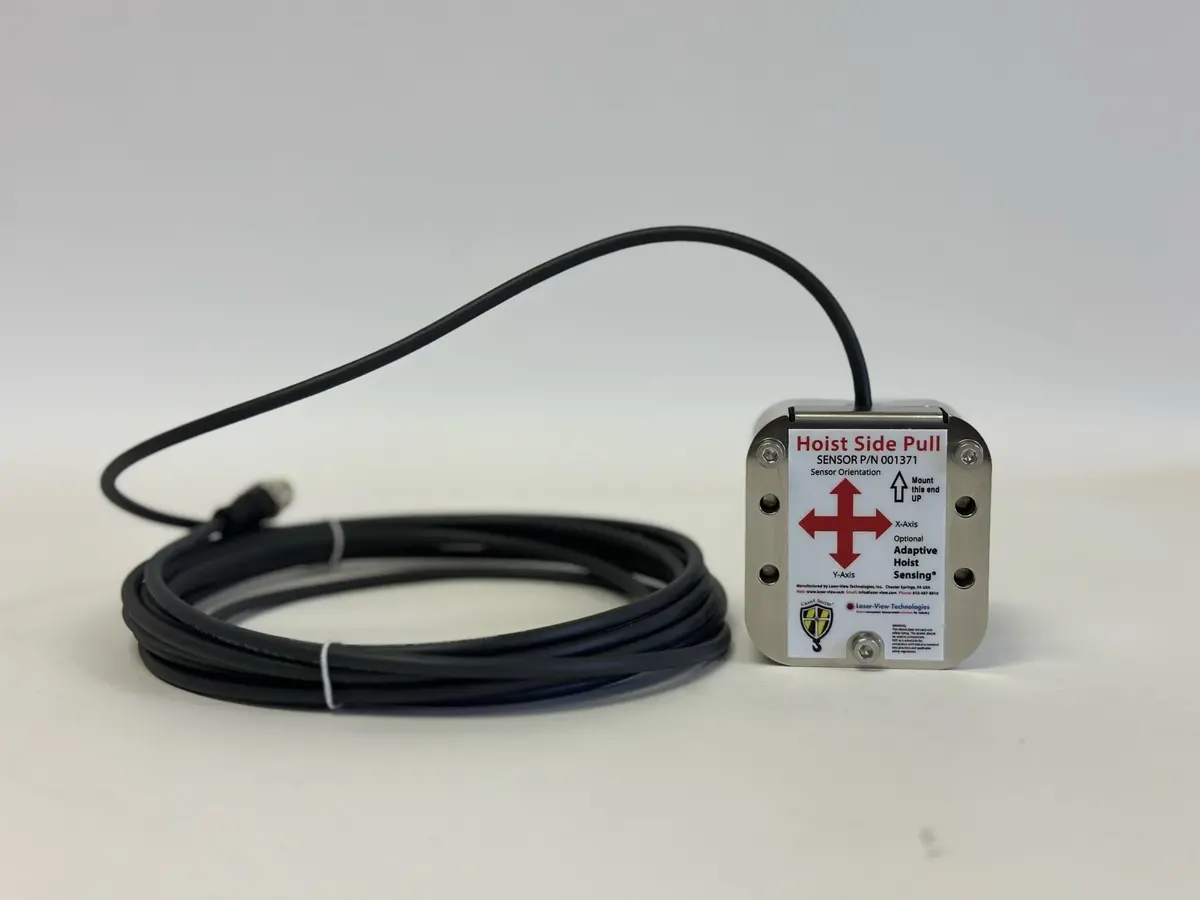

Sensor head assembly, Low profile P/N 001371
- Solid state sensor
- (2) axis with +/-90 deg range each axis
- M12 quick connect cable
- IP67 ingress protection ; fully potted and sealed (internal sensor head only)
- 12-30 VDC self-powered from controller
- -40 .. +80°C operating temp
- Frequency response: 10 Hz.
- Sensor accuracy: +/-0.4 deg at best; with 0.1 deg resolution Accuracy may be dependent upon mounting orientation.
- Accepts wire rope clamp assembly
- Aluminum and stainless steel construction
Wire rope clamp bracket assembly;
- Specify wire rope dia range at order
- 5-12 mm dia / 12-20 mm dia
- Clamps near dead end of wire rope, on side of equalizer sheave, or near equalizer bar
LV77 3430 0000 50005 0500 quick connect cable;
- M12 sealed connector for sensor; 15 ft 5 pin M-F
Download Brochure
