Fluke 376FC Wireless 1000A AC/DC True RMS Clamp Meter with iFlex

Description

 (item no. 4695861)

Product overview

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Offers improved performance ideal for a various range of current measurement situations and comes supplied with True RMS ac voltage and current measurements, this tool can read up to 1000 V and 1000 A in both ac and dc modes. Additionally, this instrument includes the iFlex™ flexible current probe which expands the measurement range to 2500 A ac while enabling increased display flexibility, the ability to measure around awkward sized conductors, and improved wire access.

Features

• Connect your meter to your smartphone with Fluke Connect Measurements
• Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
• Record results directly to your phone and the Cloud
• Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included)
• TPAK magnetic hanging strap (included)
• Integrated VFD low pass filter for accurate motor drive measurements
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• CAT IV 600 V, CAT III 1000 V safety rating
• Three-year warranty
• Soft carrying case

Specifications: Fluke 376 FC True-RMS Clamp Meter

AC Current via Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Current via iFlex™
Range	2500 A
Resolution	0.1 A
Accuracy	3% ± 5 digits
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	1000 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digits
DC Voltage
Range	1000 V
Resolution	0.1 mV
Accuracy	1% ± 5 digits
Resistance
Range	60,000 Ω
Resolution	0.1 Ω
Accuracy	1% ± 5 digits
Frequency
Range	500 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Capacitance
Range	1000 µF
Resolution	1 µF
Accuracy	1% ± 4 digits
Mechanical Specifications
Wire Capacity	750 MCM or 2 to 500 MCM
Safety Rating	CAT III 1000 V, CAT IV 600 V

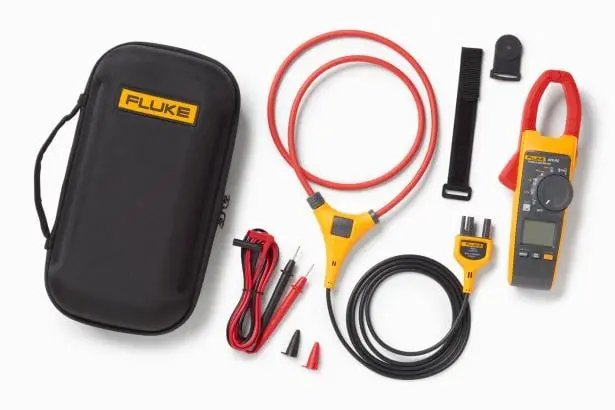

Includes:

• 18-inch iFlex® Flexible Current Probe
• TPAK magnetic hanging strap
• Soft carrying case
• TL75 test leads
• Two AA Alkaline batteries
• Coated instruction card
• Safety information sheet

 Manuals

• 374 FC/375 FC/376 FC | Users manual
• 374 FC/375 FC/376 FC | Statement of memory volatility
• 374 FC/375 FC/376 FC | Safety sheet
• 374 FC/375 FC/376 FC/902 FC | Calibration manual

Data Sheets

• 370 FC Clamps Data Sheet
