Fluke A283 FC True-RMS Wireless Current Clamp – CAT III 1500V

Description

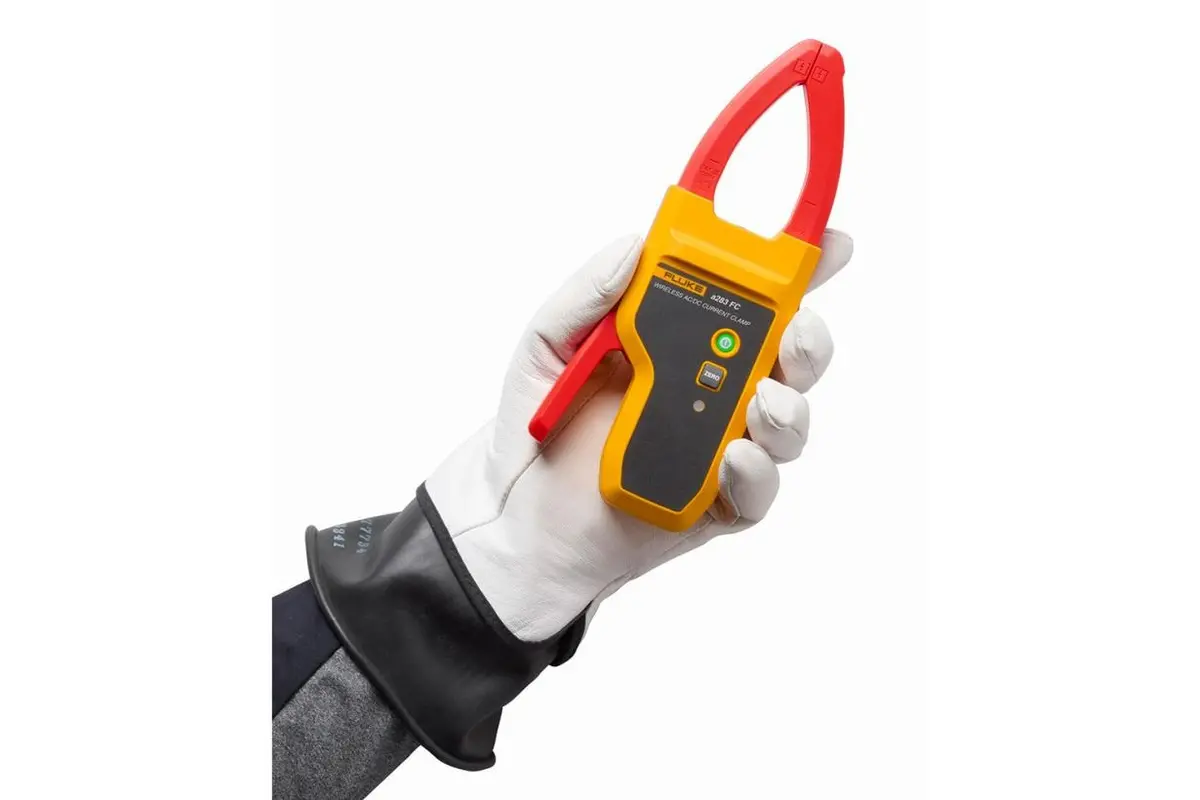

Product overview: Fluke a283 FC True-RMS CAT III 1500V Wireless Current Clamp

The a283 FC True-RMS wireless current clamp is compatible with the 283 FC Digital Multimeter and is designed to simplify the troubleshooting process without compromising on safety and reliability. It can measure both AC and DC current up to 60 A, ensuring precise and reliable readings for a wide range of applications including solar installations, electrical systems, and industrial equipment.

With its non-contact design, the clamp allows for safe connections without the need to touch live wires, enabling you to close the clamp in a cabinet and take measurements from a safe distance. It carries a CAT III 1500 V, CAT IV 1000 V rating that matches the safety rating of the 283 FC.

Wireless connectivity allows for convenient transmission of measurements, eliminating the hassle of tangled wires and allowing you to install the current clamp in an enclosure so you can safely measure at a distance. The clamp has a thin jaw design to ensure easy access to combiner boxes and tight spaces, enhancing overall efficiency in your measurement process.

What’s in the box:

• Wireless Current Clamp
• 1-year warranty

Specifications: Fluke a283 FC True-RMS CAT III 1500V Wireless Current Clamp

Function	Range	Resolution	Accuracy
AC current (True-RMS)[1]	60 A	0.01 A	1.5% + 0.15 A, 45～500Hz
DC current[1]	60 A	0.01 A	1.5% + 0.15 A

General specifications – Fluke a283 FC Wireless Current Clamp
Operating temperature	-10 °C to 60 °C
Storage temperature	-30 °C to +70 °C
Humidity (without condensation)	0 % to 90 %, 5 °C to 30 °C
	0 % to 75 %, 30 °C to 40 °C
	0 % to 45 %, 40 °C to 60 °C

Warranty and Protection
Electromagnetic compatibility	IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
Overvoltage category	CAT III 1500 V, CAT IV 1000 V
Agency approvals	ETL (AMER and EMEA), CSA (APAC), CE, UK CA
Drop test	2 meter (6.5 ft) drop test
Ingress protection	IP52
Warranty	1-year

Mechanical and general specifications
Size	226.0 mm x 91.0 mm x 42.0 mm (8.9 in x 3.6 in x 1.7 in)
Jaw opening	34 mm (1.34 in)
Weight	0.375 kg (13.2 oz)
Battery life	> 80 hours typical (Alkaline, 2 AAA)

Features
LED indicator	Indicates wireless connection and data transmission status
Battery indicator	Indicates battery status
Power Key	Power On/Off
Zero Key	A DC zeroing function

Download the product manual

Download the data sheet
