Description

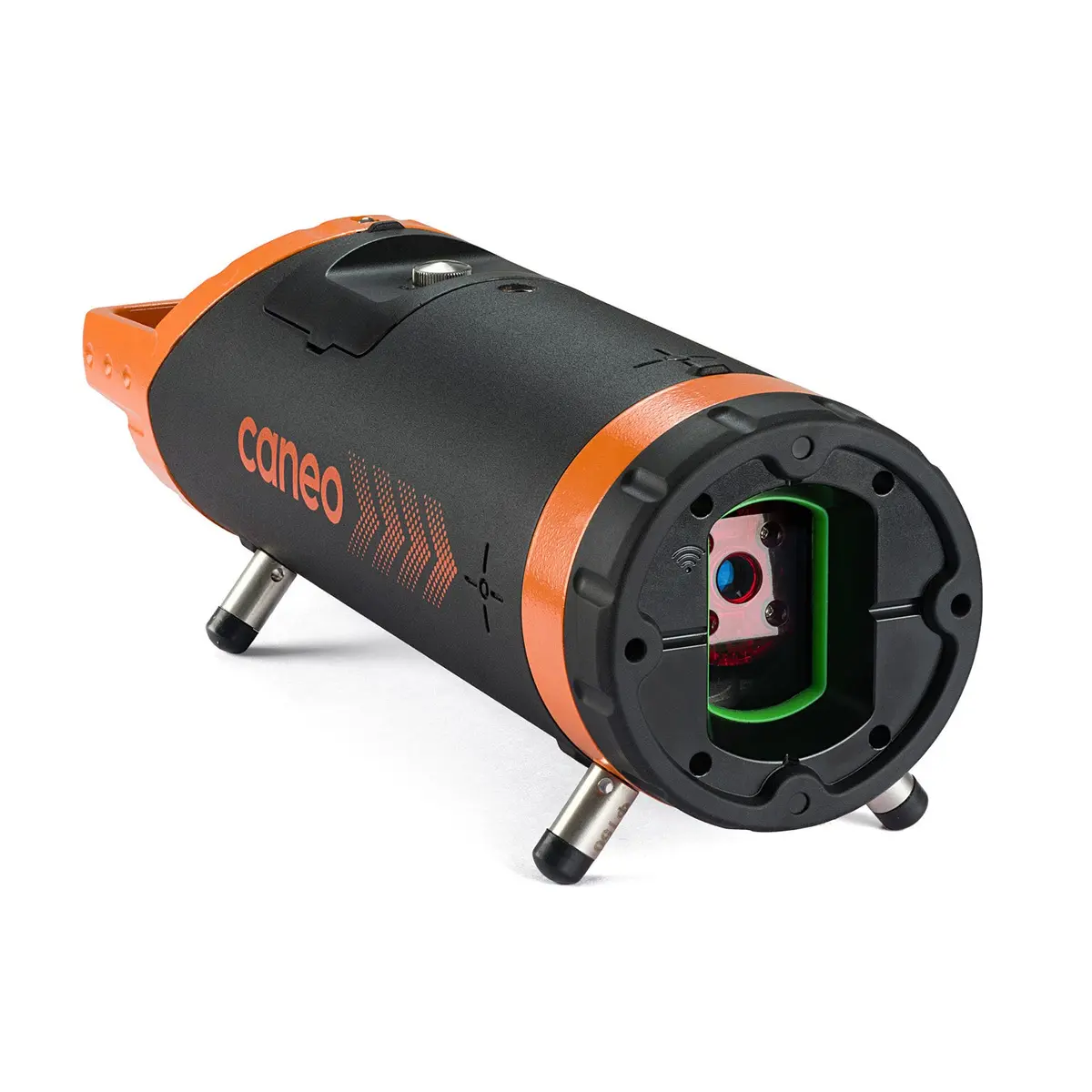

The new Caneo® – Pipe Laser
A completely new technical and functional development in a familiar but new colored design. The pipe laser has been technically redesigned and optimized with practical features required on the job. It now combines stability, reliability, and profes-sional performance. Technology on Point.job. It now combines stability, reliability, and profes-sional performance. Technology on Point.
Functions at a glance
- Robust full-metal housing
- Extremely easy-to-read OLED display
- Automatic leveling
- Direction centering
- Laser point direction adjustment: accelerated
- movement of the laser point
- Manual slope adjustment at the push of a button
- (similar to lateral movement, but vertical)
- Lock button to lock individual or all functions
- MAN button to deactivate the self-leveling mode
- LED indicator for laser output
- Infrared remote control – long range up to 150 m
Technical Data
| Laser class | 2 | |
| Laser diode | green | |
| Beam diameter | 10 mm | |
| Range | 120 m | |
| Slope range | -20% – +30% | |
| Self-leveling range | ± 5° | |
| Reading accuracy | 0,000 % | |
| Horizontal accuracy | ± 5 mm / 100 m | |
| Operating time | 24 h | |
| Power supply | 8000 mAh Li-Ion | |
| IR remote control range (front / rear) | 150 m / 10 m | |
| Temperature range | -20°C – +50°C | |
| Protection class | IP 68 | |
| Dimensions | Ø 96 mm, L = 332 mm | |
| Weight (device only) | 2,8 kg | |
Scope of Delivery
• Target board frame with target boards DN 100–300
• Infrared remote control
• Set of feet: 125 / 150 / 200 / 250 / 300
• Li-ion battery and international charger
• Cigarette lighter adapter
• Carrying case
