Description
geo-FENNEL Totalstation FTS 310
Product information “FTS 310”
The geo-FENNEL total station FTS 310 is an innovative solution with reflectorless distance measuring module with a range of over 300 m (with reflector up to over 5,000 m). Equipped with an electronic bubble level, the FTS 310 offers an exceptionally powerful, cost-effective solution for a wide range of general and specialised applications in construction and engineering.
Integrated and comprehensive software package
Choice of applications
- Construction & engineering surveying
- Stake-out
- Point-to-line, bends
- Point-to-point
- Free stationing
- Height determination
- 2D/3D interface
- Right-angle coordinates, polar coordinates
- Roads
Features
- Easy-to-use on-board software

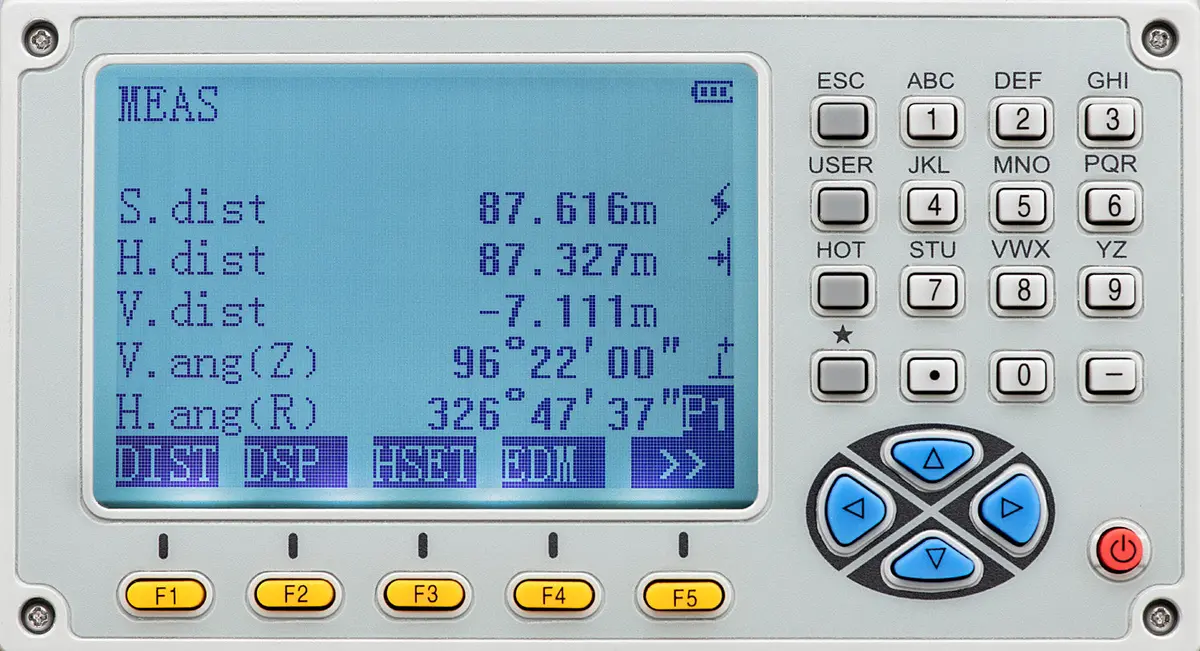

- Easy to read display also by direct sunlight
- Fast import and export of different data formats without an additional software
- Fast and accurate measurements
- Bluetooth connection to other software solutions possible
- Compact and smart design
Properties: “FTS 310”
| Laser class: | 2 |
| Resolving Power: | 3″ |
| Working range: | 1,5 – 300 m (Reflectorless), 1,5 – 500 m (Reflective tape target), 1,5 – 5000 m (Single standard prism) |
| Weight: | 6,5 kg |
| Extended size: | 190 x 210 x 350 mm |
| Temperature range: | -20°C to 55°C |
| Operating time: | 2 x 6 h |
| Visible laser beam: | ± 1.5 mm / 1.5 m |
| Accuracy: | +/- 2mm + 2ppm (working range), 2″ (angle measurement) |
| Field of View: | 1°30′ |
| Circular bubble: | 8′ / 2 mm |
| Minimum reading resolution: | 1″ / 5″ / 10″ |
| Dust / water protection: | IP 56 |
| Plate level: | 30″ / 2 mm |
| Range: | ± 3° |
| Axis: | 2 |
| Angle units: | 100 % / 360° / 400 gon |
| Image: | Erect |
| Shortest focussing distance: | 1,5 m |
| Telescope magnification: | 30 x |
| Objective diameter: | 45 mm |
| Power supply: | NiMH Akku |
Included in scope delivery:
|
|
|
|
|
