Geo-Fennel GEO1X-360 Green 360° Horizontal Line Laser Level

Description

Receiver Options:

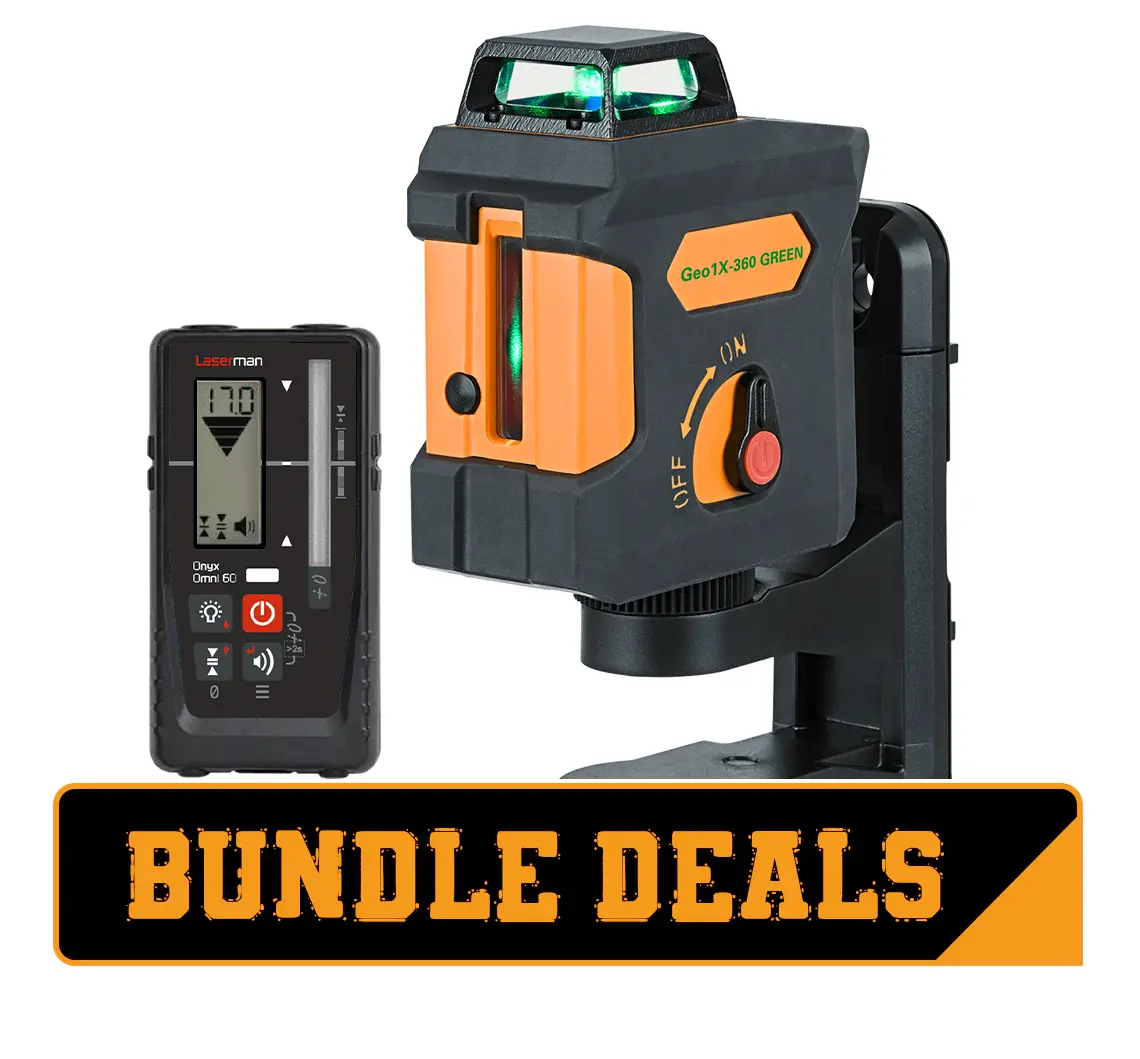

• Onyx Omni 60 Universal MM Receiver
• FR 50 Laser Receiver
• FR 60-MM Receiver
• FR 80-MM Receiver

Product Overview

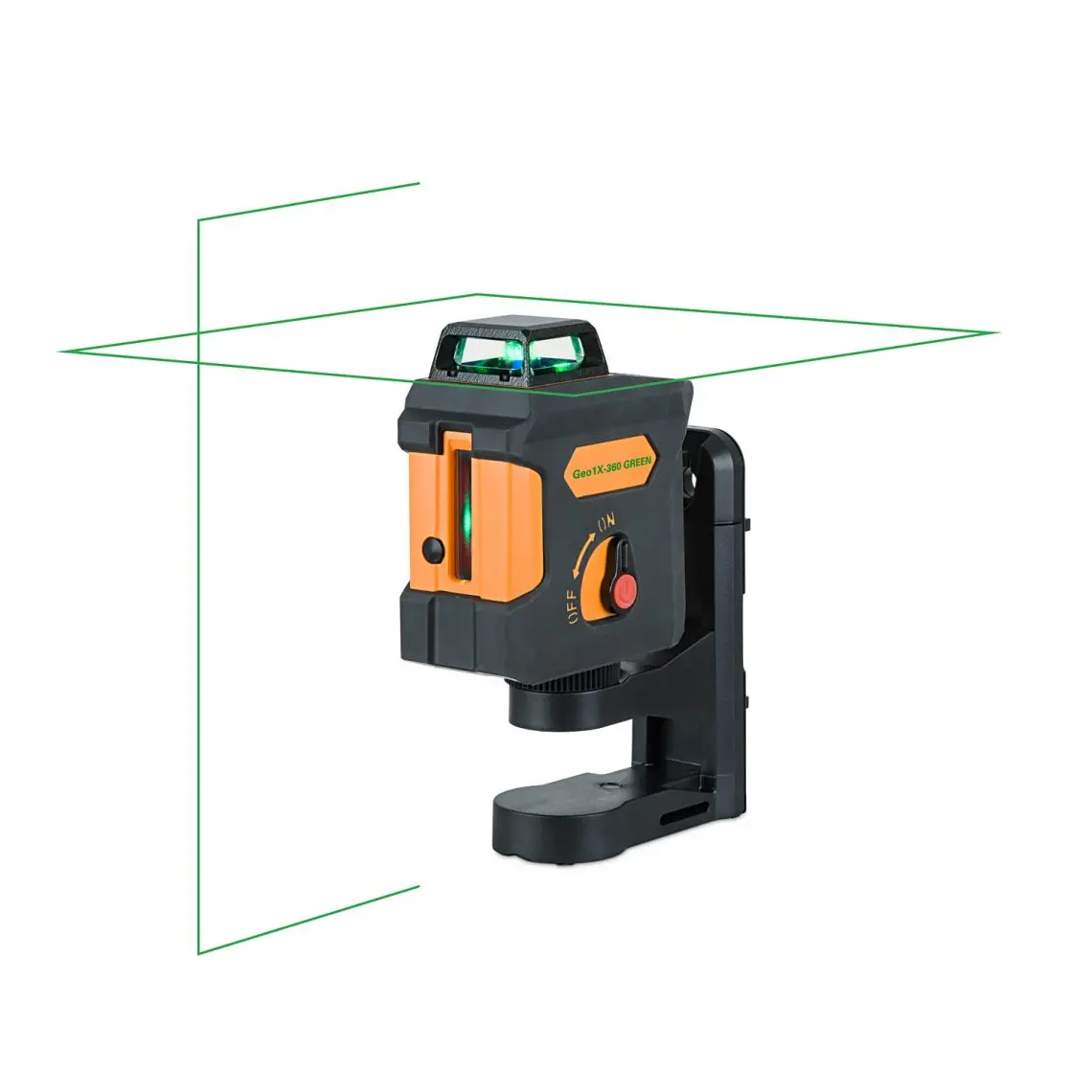

A self-levelling GREEN line laser with outstanding line visibility

• Self-levelling function can be switched off for manual use
• Pulse-function to extend working range with receiver (optional)

Features

• 1 Laser cross

• 1 x 360° horizontal laser line

• Laser lines switchable separately

• TILT function for manual use

• Visual alarm when out of level

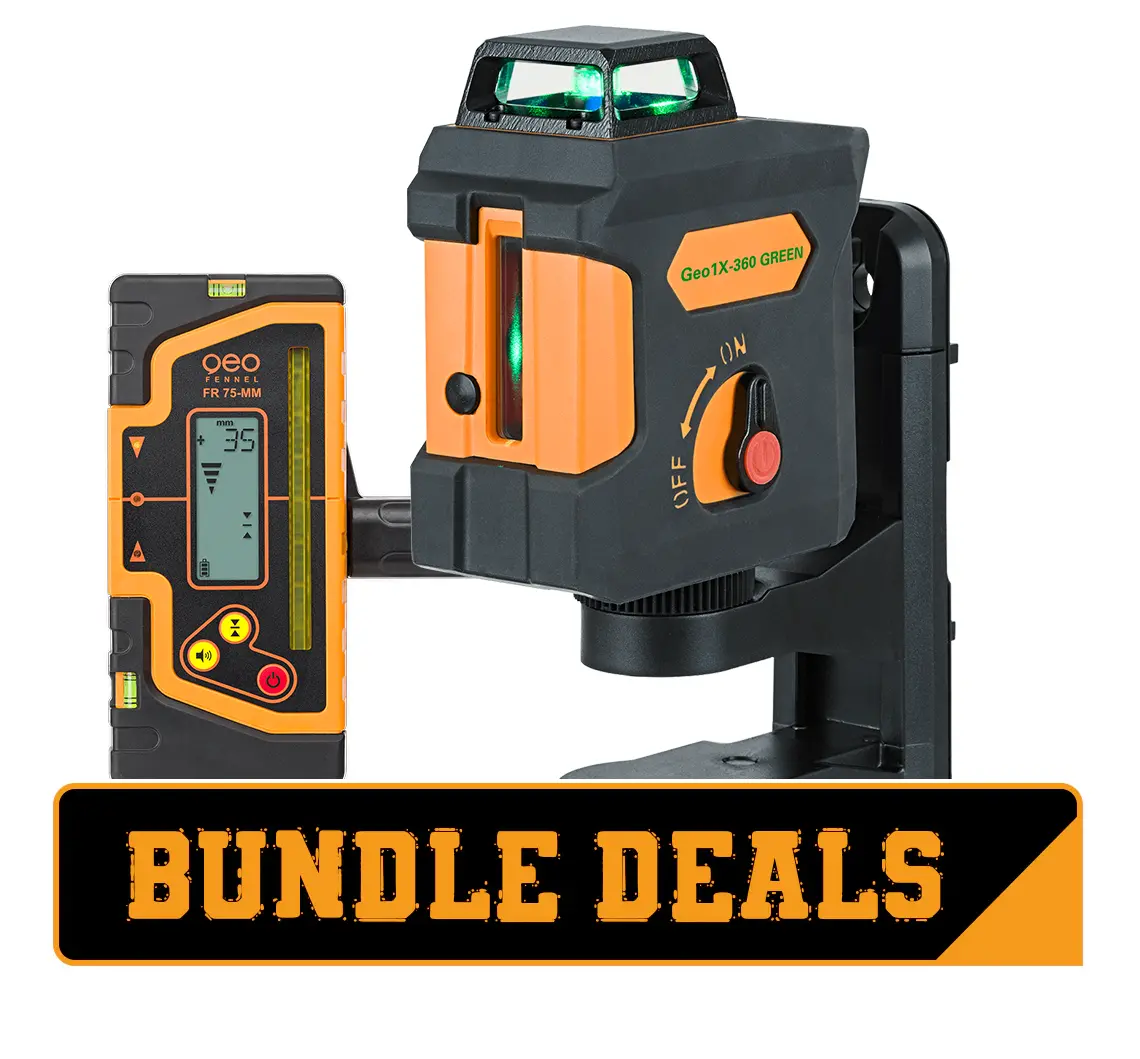

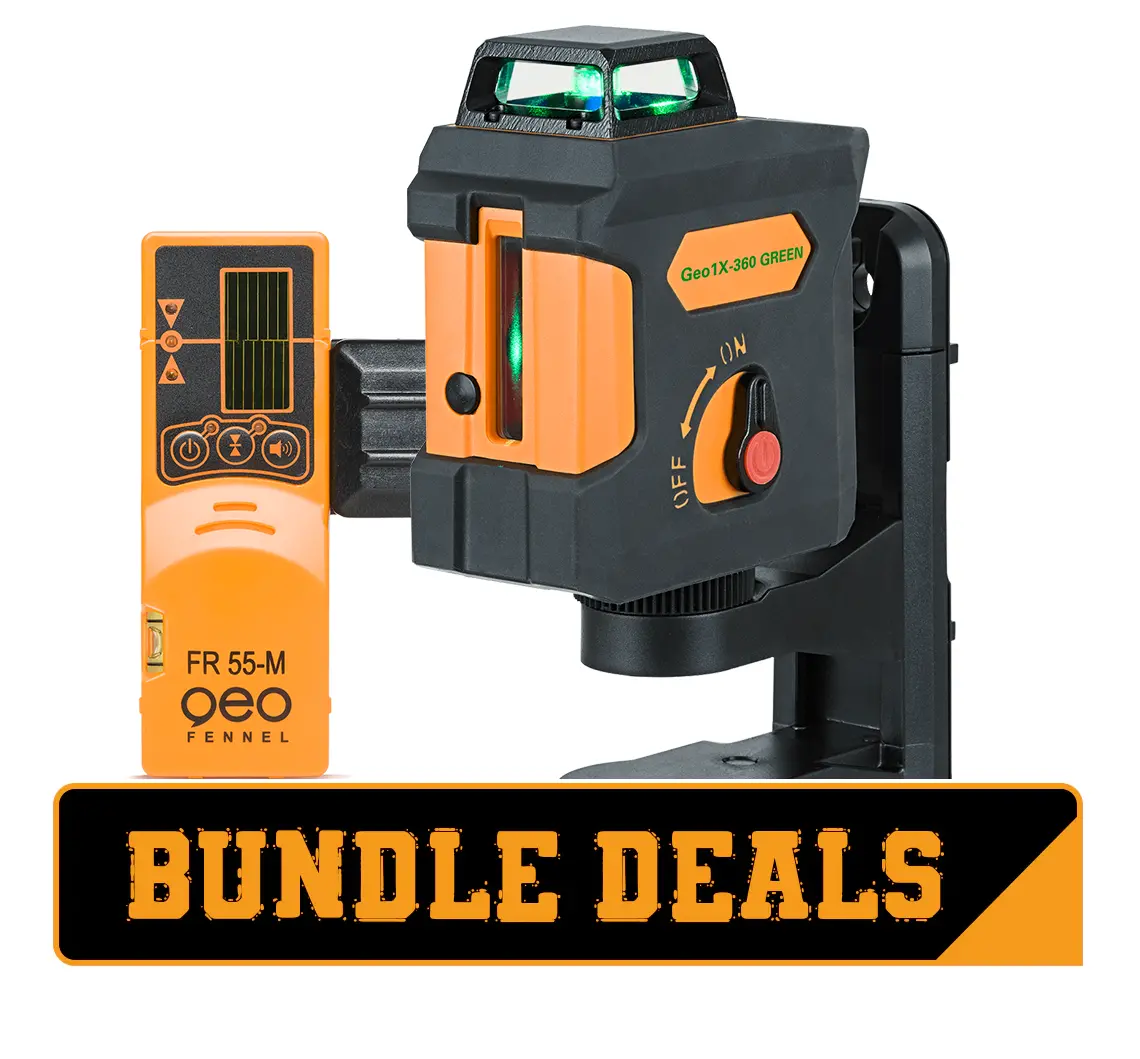

• Use with receiver FR 75-MM / FR 55 / 55-M (optional)

• Multi-functional mount

• height adjustable

• for wall-hanging with screw

• strap attachment

• strong magnet on back side

• 1/4“ and 5/8“ thread for use with tripods etc.

Includes

• Multi-functional mount

• 4x AA Alkaline battery

• Padded bag

Specifications

• Self-levelling range ± 3°

• Accuracy ± 3 mm / 10 m

• Working range w/o receiver 30 m* (radius)

• Working range with receiver 50 m** (radius)

• Fan angle Hz Line 360°

• Fan angle V Line 135°

• Power supply 4 x AA Alkaline

• Operating time (all lines switched on) 10 h

• Dust / water protection IP 54

• Laser diode / class green / 2

• Temperature range -10°C to +45°C

• Weight (instrument with battery) 0.65 kg

• *depending on room illumination

• **depending on direction of the laser

Download

• geo-FENNEL Catalogue 2022
