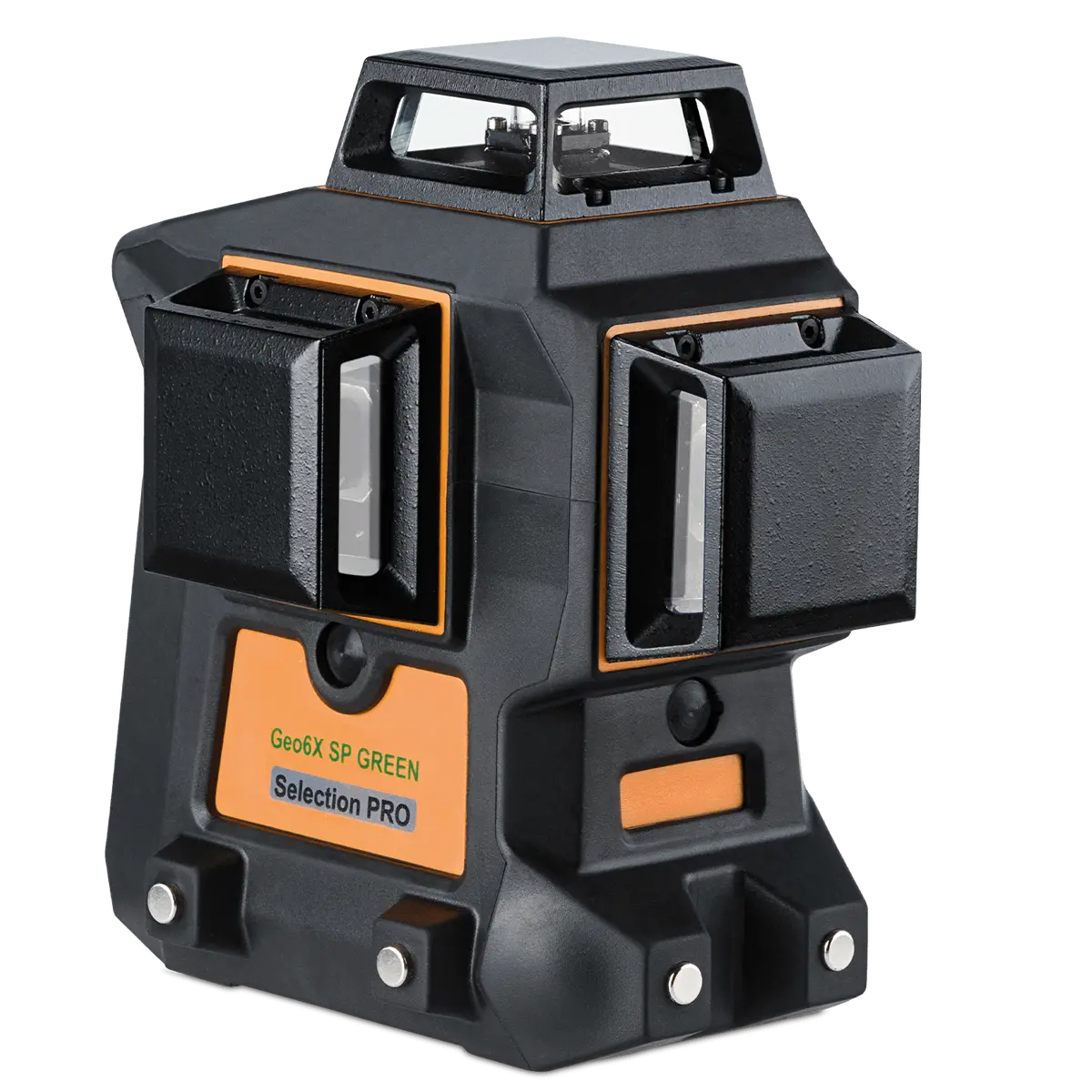

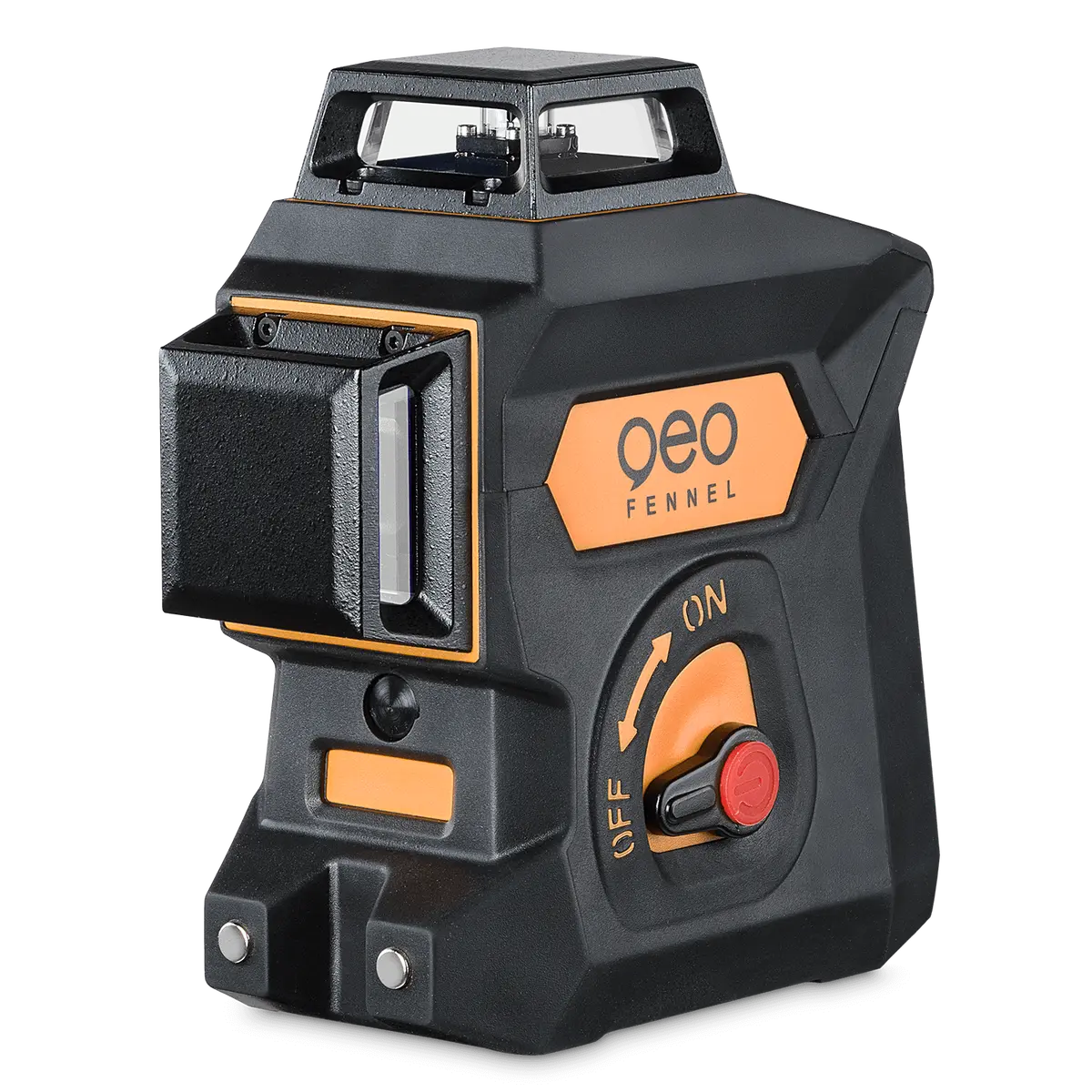

Geo-Fennel GEO6X SP Green 3×360° Multi-Line Laser Level with Hard Carry Case

Description

geo-FENNEL Geo 6X SP Green 3 x 360 Multiline Laser Level Kit

This item comes within a hard carry case.

For longer range, or outdoor use, this laser can be used with a laser receiver.
Options mentioned above are:

Product Overview

Multi-functional for versatile leveling jobs.

The new multi-line lasers Geo6X are our innovative tools for professional construction sites. 3 x 360°-Laser lines form 6 laser crosses with an outstanding visibility. The Geo6X product family comprises 3 models: Geo6X SP, Geo6X SP KIT as well as the Geo6X SP GREEN KIT.

• 3 x 360°-Laser lines
• Compact & rubberized housing
• Outstanding visibility of the laser lines up to Ø 60 / Ø 80 m
• Li-Ion battery for convenient operation (Geo6X SP KIT/ GREEN KIT)
• Full kit with Li-Ion batteries, charger, wall mount and container
• Self-levelling function can be locked for manual use  (inclined applications)

Features

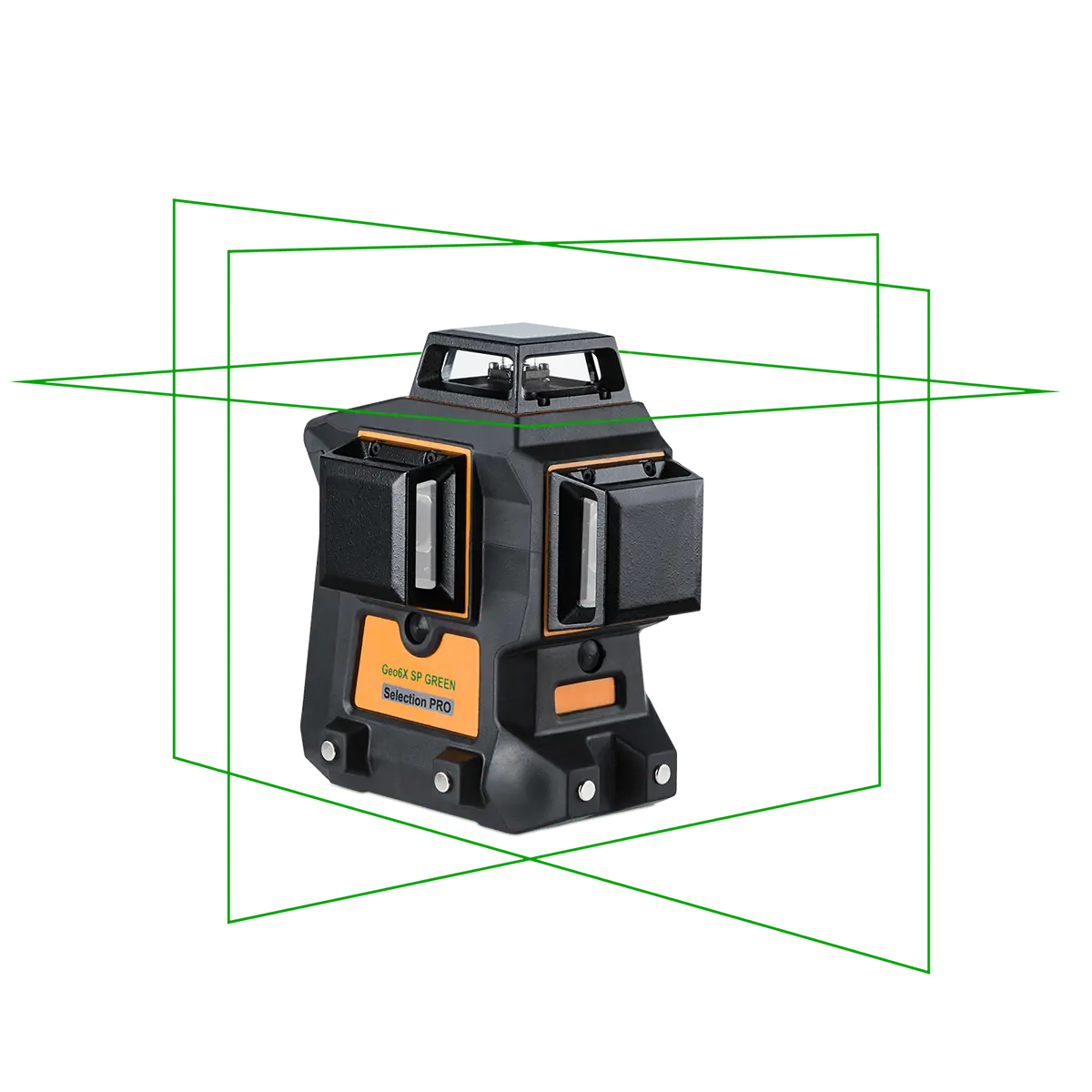

• 3 x 360°-Laser lines – form 6 laser crosses –
• Laser lines switchable separately
• Plumbing function Laser plane distance to wall/ceiling min. 12 mm
• Magnets at the front and side for connection to dry wall track
• Use with receiver (optional)
• Self-levelling function can be locked for manual use  (inclined applications)
•  5/8″ tripod connection at the instruments bottom
• The Geo6X can be operated with both battery box and Li-Ion battery
• Multi-functional mount
  – magnets on the back
  – strap attachement
  – height adjustable
  – 5/8″ & 1/4″ connection

Includes

• Multi-functional mount
• Magnetic target
• Li-ion battery, charger
• Charger with USB 3.0 cable
• Battery case for alkaline batteries
• Container

Specifications

• Self-levelling range: ± 3°
• Accuracy: ± 2 mm / 10 m
• Laser diode / class: green / 2
• Working range* (radius): Ø 80 m
• Working range with receiver (radius): Ø 140 m
• Operating time / Power supply: 14 h / Li-Ion
• Dust/waterprotection: IP 54
• Temperature range: -10°C – +45°C
• Size: 140 x 130 x 80 mm
• Weight (instrument with battery): 0,8 kg

*with receiver

 Similar to the DeWalt DCE089D1GXE green beam 3×360 laser level

Download

• geo-FENNEL Catalogue 2022
