Description

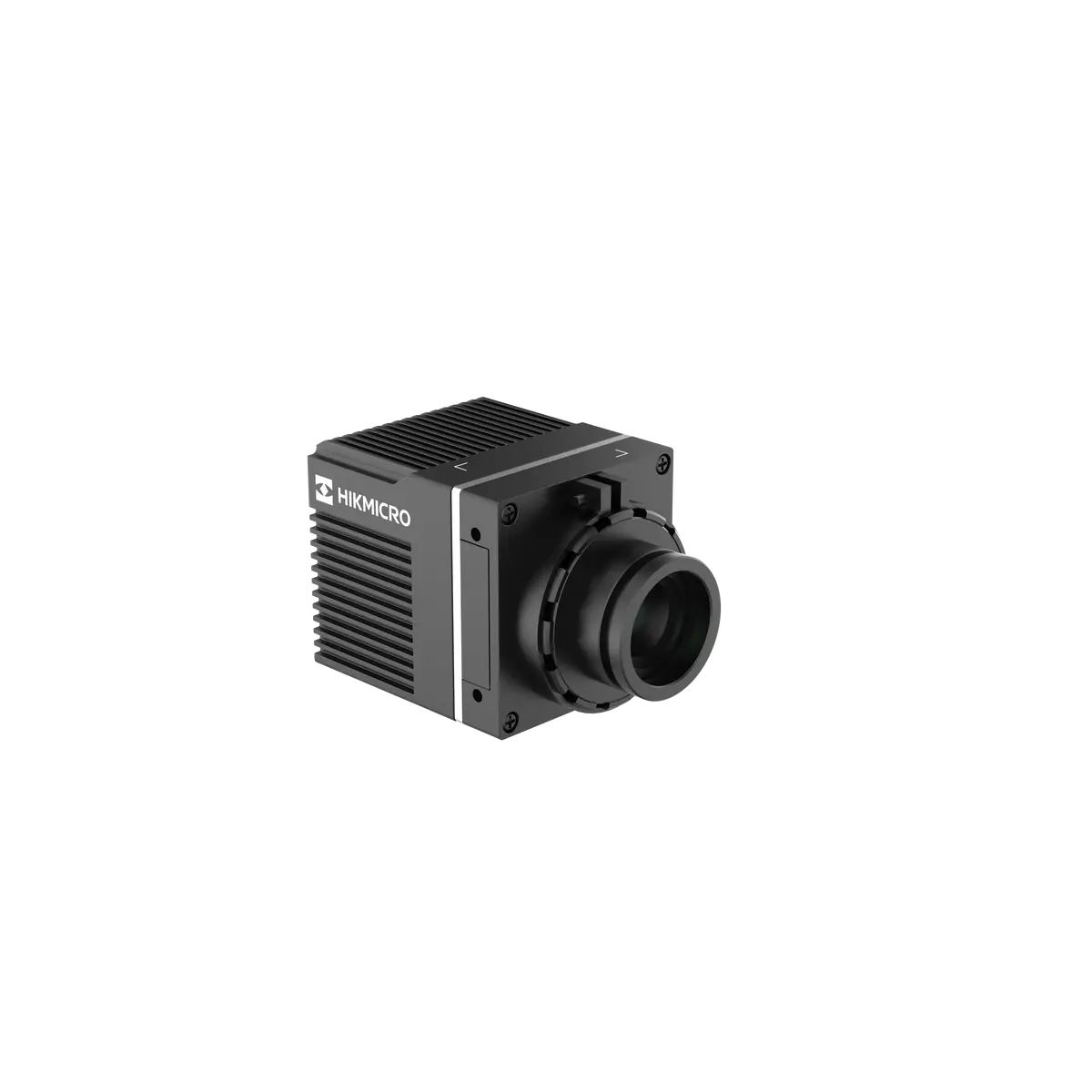

10 mm Thermographic Network Box Camera
The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
| Description | SKU |
| 384×288, 4 mm, 60.4°×44.9°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | HM-TD2038T-4/Q |
| 384×288, 8 mm, 34°×26°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | HM-TD2038T-8/Q |
| 384×288, 10 mm, 27°×20.4°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | HM-TD2038T-10/Q |
| 384×288, 18 mm, 13.7°×10.4°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | HM-TD2038T-18/Q |
Features
- High sensitivity sensor with 384 x 288 resolution.
- Object temperature range: -20°C to 150°C, 0 °C to 650 °C; Max (±2 °C, ±2%).
- Temperature measurement at 3 user-defined rule types (max. 21 points, max. 21 areas, and max. 1 line).
- A highlighted cross at the max. temperature in the thermal image.
- Thermal image frame rate: 50 fps.
- Supports real-time acquisition of raw data pushed by the device via the network or USB for temperature measurement and image analysis.
- Supports 18 pseudo color modes.
| Thermal Module | |||||||||||||||
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays | ||||||||||||||
| Resolution | 384 × 288 | ||||||||||||||
| Pixel Pitch | 12 μm | ||||||||||||||
| Spectral Range | 8 μm to 14 μm | ||||||||||||||
| NETD | ≤ 30 mk(@25 °C,F#=1.0) | ||||||||||||||
| Focal Length | 3 mm 4 mm 8 mm 10 mm 18 mm |
||||||||||||||
| IFOV | 3 mm : 4.00 mrad 4 mm : 3.00 mrad 8 mm : 1.50 mrad 10 mm : 1.20 mrad 18 mm : 0.67 mrad |
||||||||||||||
| Field of View | 3 mm : 90.0°(H)x65.0°(V) 4 mm : 60.4°(H)x44.9°(V) 8 mm : 34.0°(H)×26.0°(V) 10 mm : 27.0°(H)×20.4°(V) 18 mm : 13.7°(H)x10.4°(V) |
||||||||||||||
| Min. Focusing Distance | 3 mm : 0.15 m 4 mm : 0.25 m 8 mm : 0.80 m 10 mm : 1.30 m 18 mm : 5.00 m |
||||||||||||||
| Aperture | 3 mm : F1.00 4 mm : F1.00 8 mm : F1.00 10 mm : F1.15 18 mm : F1.15 |
||||||||||||||
| Measurement and Analysis | |||||||||||||||
| Object Temperature Range |
-20 °C to 150 °C , 0°C to 650 °C | ||||||||||||||
| Temperature Accuracy | Max (± 2 °C, ± 2%) | ||||||||||||||
| Measurement Presets | 3 temperature measurement rule types, 21 rules (max. 21 points, max. 21 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 21. |
||||||||||||||
| Video and Image | |||||||||||||||
| Main Stream | 50 fps (384 × 288) | ||||||||||||||
| Video Compression | H.265/H.264/MJPEG | ||||||||||||||
| Color Palettes | 18 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Winter, Summer, Blue Red |
||||||||||||||
| Digital Zoom | ×2, ×4, ×8 | ||||||||||||||
| Radiometric Capture | Yes | ||||||||||||||
| Radiometric Infrared- Video Streaming (Compressed) |
Over RJ45/UVC, 384 x 288@50 fps | ||||||||||||||
| Network | |||||||||||||||
| Protocols | IPv4,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RT P,TCP,UDP,IGMP,ICMP,DHCP,ISUP,GB28181,ONVIF,modbusTCP,WebSocket,PPPoE,S RTP,OTAP |
||||||||||||||
| Simultaneous Live View | Up to 20 channels | ||||||||||||||
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
||||||||||||||
| Client | HIKMICRO Studio | ||||||||||||||
| Interface | |||||||||||||||
| Alarm Input | 1, alarm input (0-3.3 V DC) | ||||||||||||||
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) | ||||||||||||||
| Analog Output | 1, CVBS output | ||||||||||||||
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (HIKVISION, PELCO-P, PELCO-D, modbusRTU, modbusASCII) 1, USB type-c port that supports the UVC protocol |
||||||||||||||
| General | |||||||||||||||
| Menu Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
||||||||||||||
| Power Supply | 12 V DC, Max. 3.2 W | ||||||||||||||
| Working Temperature/Humidity | -20 °C to 60 °C 90% or less |
||||||||||||||
| Protection Level | IP40 | ||||||||||||||
| Mount | M3 | ||||||||||||||
| Weight | 3 mm : Approx. 163 g 4 mm : Approx. 165 g 8 mm : Approx. 171 g 10 mm : Approx. 162 g 18 mm : Approx. 162 g |
||||||||||||||
| Dimensions | 3 mm : 67.5 × 44.2 × 44.2 mm 4 mm : 71.8 × 44.2 × 44.2 mm 8 mm : 79.8 × 44.2 × 44.2 mm 10 mm : 69.8 × 44.2 × 44.2 mm 18 mm : 69.8 × 44.2 × 44.2 mm |
||||||||||||||
Downloads
QF310_Datasheet_en-US_20250625.pdf UD41665B_hikmicro_Thermographic Network Box Camera_User Manual_V5.5.312_en-US_20250208.PDF.PDF UD40761B-A_Thermographic_Network_Box_Camera_QSG_multilanguage_20250210.pdf
