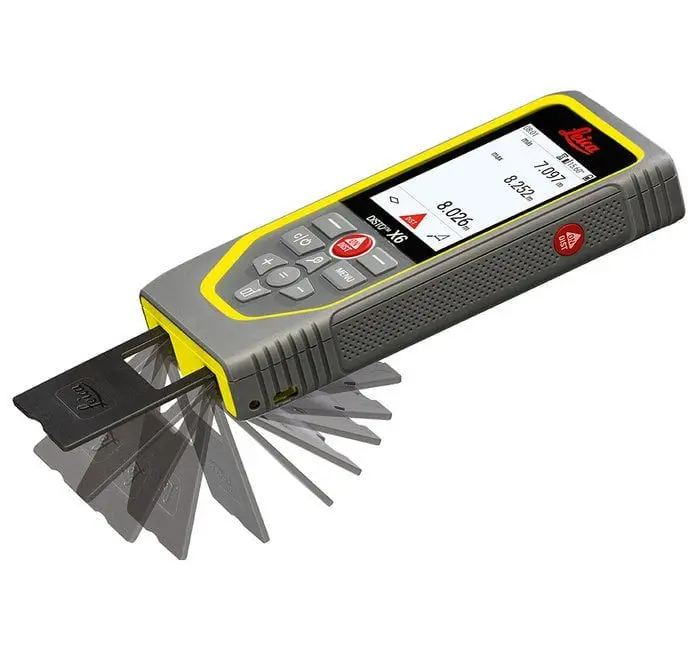

Leica DISTO X6 Professional Laser Distance Meter with Bluetooth and Image Capture

Description

Leica Disto X6 Laser Distance Meter

Key Feature

• Range up to 250 m
• ± 1.0 mm accuracy, 0.1 mm resolution
• Fast Start-up time
• Bright and clear 2.8” IPS touchscreen with scratch-proof lens
• DIST key on the side for even more intuitive measurements
• Robust according to IP65 and drop tested from 2 meters
• Trigger measurements with gestures
• Memory for 300 reports
• Li-Ion rechargeable battery
• USB-C charging and download of data
• Keyboard simulating data-transfer via Bluetooth®
• Bluetooth® 5.0 Technology for error-free data transfer
• Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
• Compatible with DST 360-X adapter to enable P2P measurements

Specification

Accuracy with favourable conditions	1.0 mm / 1/16″
Accuracy with unfavourable conditions	2.0 mm / 1/8″
Range with favourable conditions	0.05 – 250 m / 0.07 – 820 ft
Range with unfavourable conditions	0.05 – 150 m / 0.07 – 500 ft
Smallest unit displayed	0.1 mm / 1/32 in
X-Range Power Technology	Yes
Laser	class 2, 635 nm, <1 mW
Digital Pointfinder with 4-fold zoom	Yes
Tilt measuring range*	360°
Tilt measuring tolerance	± 0.2°
ø laser point | at distances	6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class	IP65 (dust tight and jet water protected)
	drop tested from 2 m height
Auto. laser switch off after	90 s
Auto. power switch off after	180 s
Memory	up to 300 reports
Bluetooth® Smart	Bluetooth® v5.0
Range of Bluetooth® Smart	up to 10 m
Battery durability (Li-Ion 2 000 mAh)	up to 4’000 measurements
	up to 8 hours operation time
Dimension (H x D x W)	154 x 68 x 25 mm
Weight (with batteries)	230 g
Temperature range storage | operation	-25 to 70 °C | -10 to 50 °C

 Includes:

• Leica DISTO X6 laser distance meter
• Hand loop
• Pouch
• USB cable
• Safety instructions
• Calibration Certificate Silver
• Quick Start with QR code linking to online manual

Leica Disto X6 Laser Distance Meter – Datasheet

Tutorial on your DISTO connectivity
