Leica Lino UAL 130 Wall Mount Clamp
Product Overview

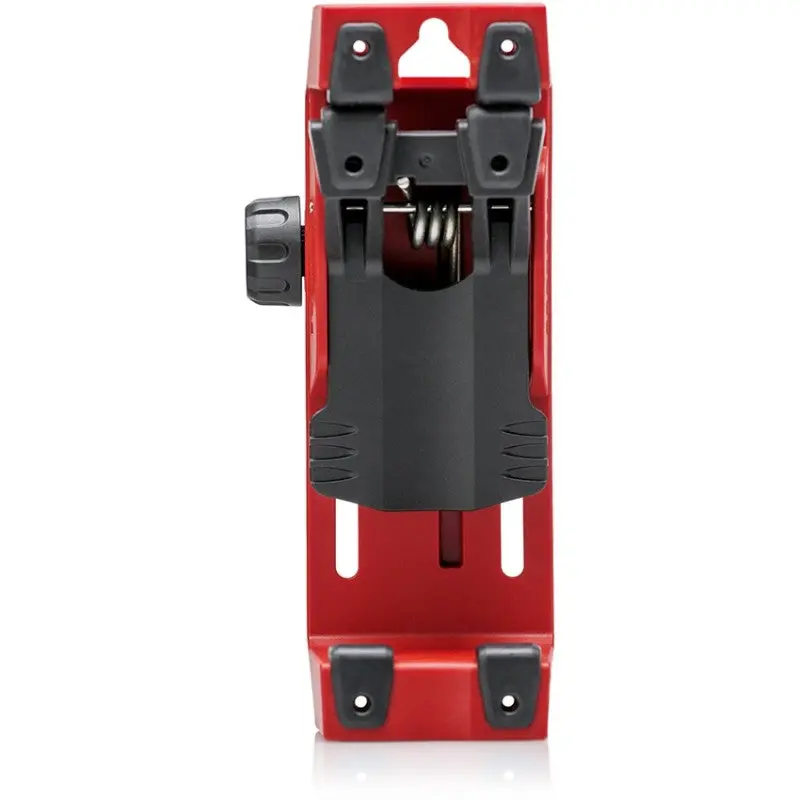

The UAL 130 Wall Mount Adapter for Leica Lino Lasers is a great addition to any construction leveling tools by providing smart support for the installation of suspended ceilings. It features a clamp that allows it to easily attach to tracks and bars of up to 30 millimeters thick for a quick leveling setup. It has a big gear wheel that provides a 130 millimeter flexible and quick height adjustment.
This adapter includes 1/4 and 5/8-inch tripod thread as a standard and has special big slots for zip tie or nail attachment. It is made to withstand harsh outdoor and construction conditions. It is dust and splash water resistant with the protection class IP 54 and is drop tested up to 6.5 feet. This universal wall adapter is also compatible with Leica Twist 250 and 360 magnetic adapters.
Features
- Universal wall mount adapter
- Easy attachment clamp
- Big gear wheel
- 130mm height adjustment
- 1/4 and 5/8 tripod thread
- Dust and splash water resistant
- IP 54 protection class
- 6.5 ft. drop tested
- Special big slots for zip tie or nail attachment
- Designed for Leica Lino P5, L2, L2G, L2P5, and L2P5G
- Compatible with Leica Twist 250 and 360 magnetic adapters
Specifications
| Height adjustment | 130 mm (5.12 in) |
| Clamping width | 0 – 30 mm (0 – 1.18 in) |
| Scale | mm + inch |
| Tripod thread | 1/4” + 5/8” |
| Protection class | IP 54 (IEC 60529) dust and splash water |
| Drop tested | 2 m (6.5 ft) (IEC 60068) |
| Dimensions | (L x W x H) 180 x 73 x 75 mm (7.09 x 2.87 x 2.95 in) |
| Weight | 390 g (0.86 lbs) |
| Compatibility | TWIST250 + TWIST360 |
