Description

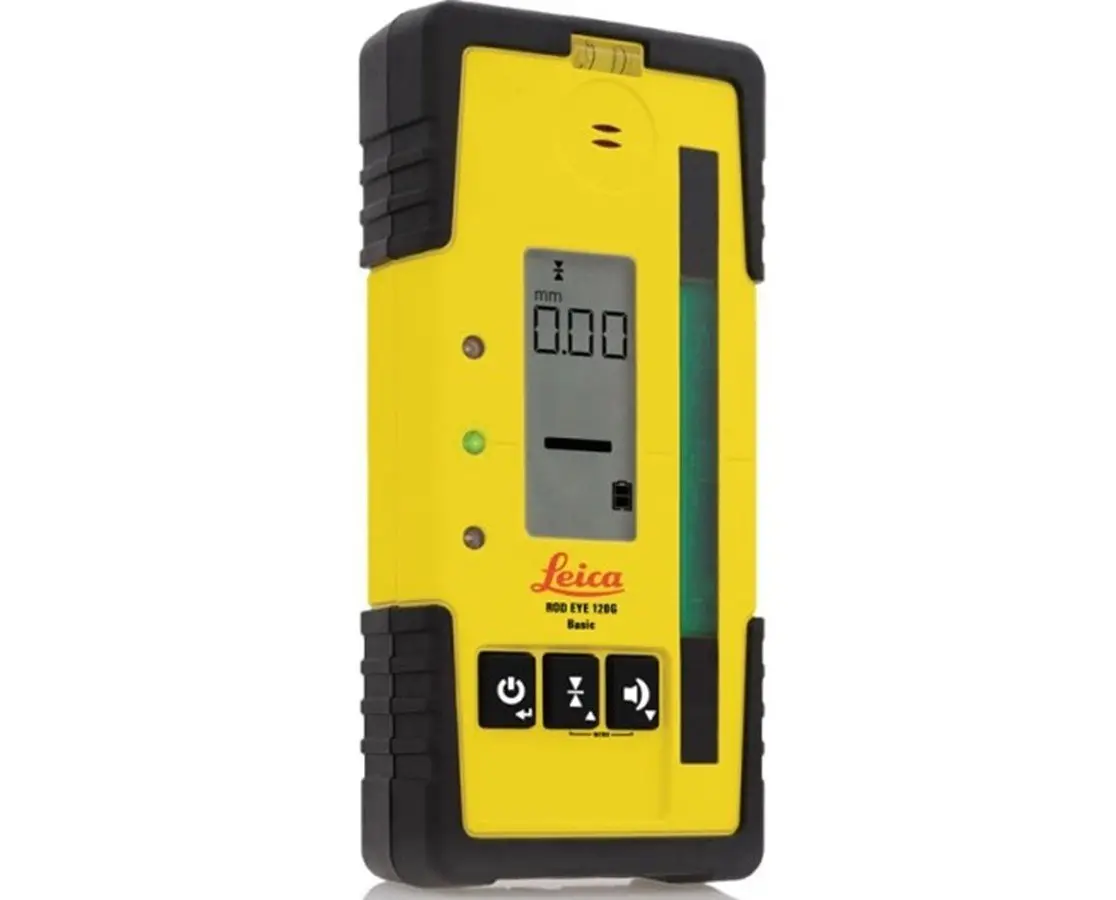

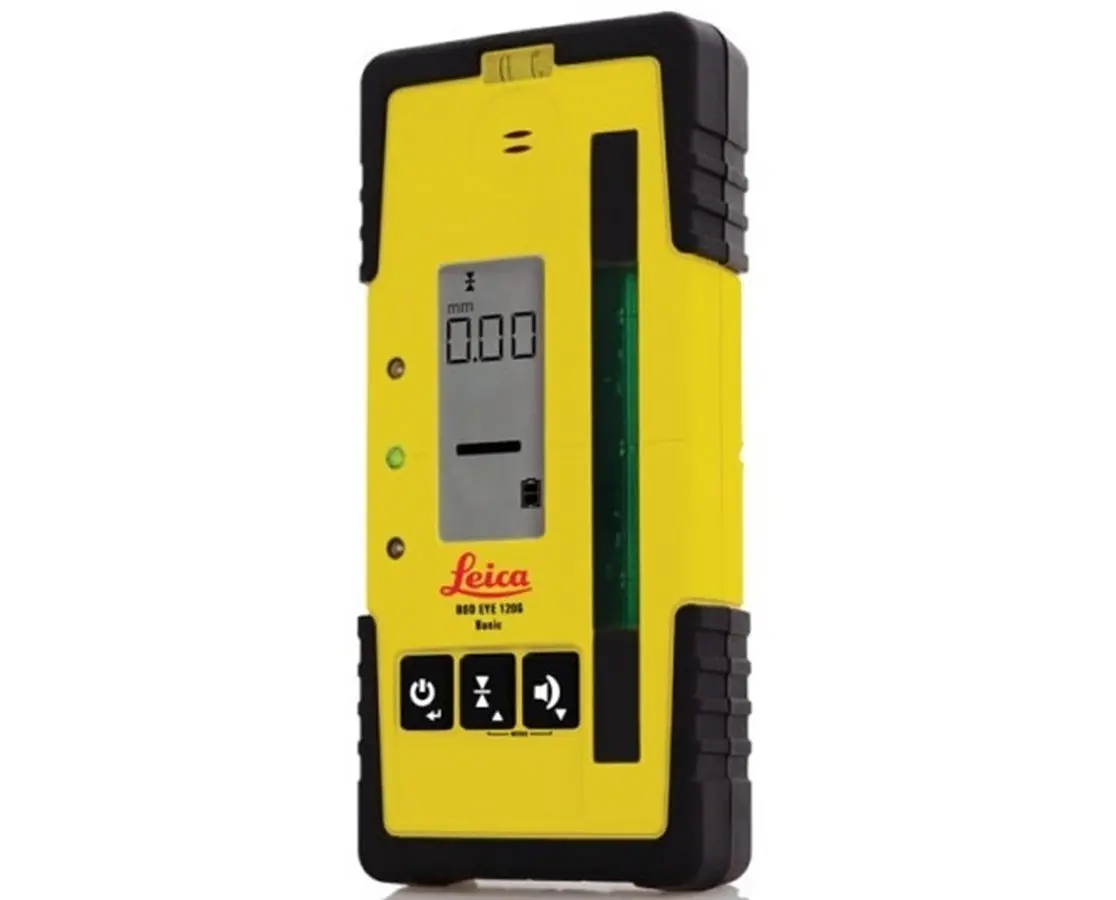

Leica Rod Eye 120G Classic Laser Receiver & Bracket
Product Overview
The Leica Rod Eye 120G Green Laser Receiver with Bracket is drafted to capture the green laser beam of the Rugby 640G rotating laser Convenient and fast, it features a digital readout that measures offset from Rugby 640G beam position. This laser receiver has a built-in seven-centimeter detection window that allows easy detection of the beam up to a 200-meter radius. Also, it features a working diameter of up to 900 meters.
For an easy read, it includes two large LCD graphic displays on the front and back of the receiver. The rod eye receiver comes with three auto indication volume levels – loud, soft and off. Plus, it has three bandwidth accuracy indication levels – fine, medium and coarse.
Being powered by two AA batteries, the Leica Rod Eye 120 laser receiver operates up to 50 hours. It has an IP67 environmental rating which gives this instrument dust and water protection.
Features
- Capture green laser beam of the Rugby 640G rotating laser
- Digital readout
- Built-in 2.8-inch window (7 cm)
- Up to 656-foot radius beam detection (200 meters)
- Up to 2,952-foot working diameter (900 meters)
- 2 large LCD graphic displays
- 3 auto indication volume levels
- 3 bandwidth accuracy indication levels
- 2 AA batteries
- Operates up to 50 hours
- Dustproof and waterproof (IP67)
Includes
- Leica Rod Eye 120G Green Laser Receiver with Bracket
- 2 x AA batteries
- Bracket
Specifications
| General | |
| Dimensions | 1.378″D x 3.1496″W x 5.906″H (35mm x 80mm x 150mm) |
| Protection Class | IP67 |
| Bracket/Clamp | Included |
| Accuracy | |
| Fine | ± 1 mm |
| Medium | ± 2 mm |
| Coarse | ± 3 mm |
| Battery/Power | |
| Power Source | AA batteries |
| Battery Life | up to 50 hours |
| Low Battery Indicator | yes |
| Temperature | |
| Operating | –20°C to +50°C – |
| Features | |
| Channels | 9 |
| Display | Dual LCD |
| Automatic Shutoff | After 10 minutes |
| LED Indicators | green |
| Anti-Strobe Technology | yes |
| Last Beam Memory | yes |
| Beam Finding | yes |
