Description
The ECT240 is a Battery Powered Crimping Tool with an OLED Display showing pressing time, battery percentage, maintenance notes and fault codes. The ECT240 has a two stage hydraulic system: Hydraulic Ram output provides more force for reliable connection. The ECT240 has a Rated pressure of 50kN.
- OLED Display showing Pressing Time, Battery Percentage, Maintenance Notes and Fault Code
- 180° Swiveling Barrel
- Two stage hydraulic system: hydraulic ram output provides more force for reliable connection
- Ergonomic design with light weight and in-line grip
- Easily work overhead and in tight spaces
- Rated pressure: 50kN
- Stroke: 14mm
- 2.5 – 4 seconds per cycle time
- Max crimping: Copper 240mm² / Aluminium 185mm²
- **Please note: When selecting die sizes for copper and aluminium, you will use the same dies but reduce the size by one when switching from copper to aluminium. For example, if you are using a 240 mm² die for copper, you would use a 185 mm² die for aluminium.

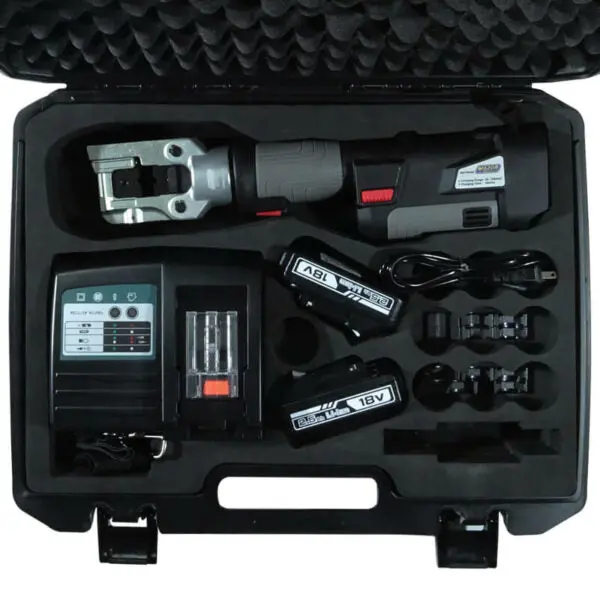

Accessories
- Crimping Dies: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm²
- 2x 2.5Ah Lithium Batteries
- 1x Charger
- 1x Carrying Case
Downloads
- ECT240 Technical Datasheet
