Description
- 10 voltage settings from 240V to 500kV
- Bright LED visual indication and Audible indication
- AC voltage detection from 240V to 500kV
- Wide 120⁰ angle for voltage detection
- Non-contact detection by proximity
- IP65 waterproof housing
- Easy-to-prove method
- Compatible with most hot sticks
- Suitable for indoor and outdoor use
- High impact nylon casing
- Built-in Flashlight
- Self-test function
- Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

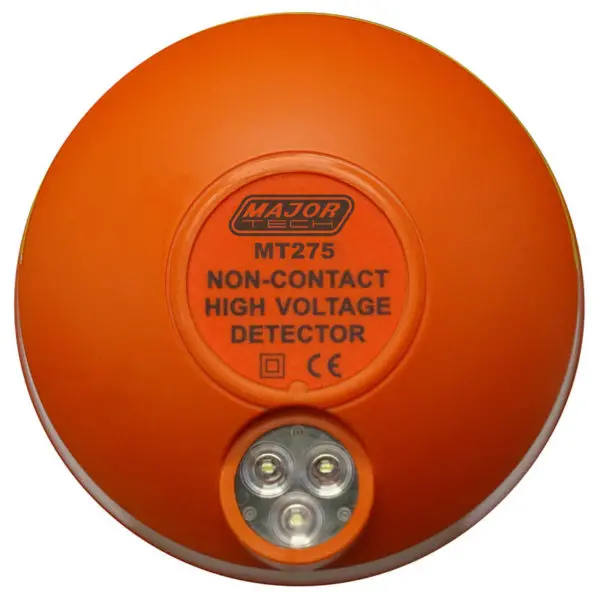

The MT275 is a high voltage proximity detector that has 10 voltage settings from 240V AC to 500kV AC. The MT275 provides a wide 120⁰ angle for non-contact detection with an internal pickup sensor plate that senses the radiated field which surrounds live conductors, the field strength increases with voltage and decreases quickly with distance or earthing shields. When testing for high kilo voltages the MT275 can be used in conjunction with long insulating link sticks or hot sticks. There is a built-in self-test range to verify the detector is in working order.
Specifications
| Function | Range |
| Power On Indicator | Self-test selection |
| Flashlight | Yes |
| Non-Contact Voltage (NCV) | Yes |
| AC Voltage | 240V, 3.3KV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV, 330kV, 500kV |
| Frequency | 40-70Hz |
| Voltage Detector Visual | Hi bright red LED |
| Voltage Detector Audible | High noise level buzzer |
| Enclosure | Moulded IP65 |
| Batteries | 3 x C |
| Weight | 531g |
| Dimensions | 255 x 96mm |
| Safety Specs | EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8 |
Safety Ratings
Includes
- Carrying Case
- 3 x C Batteries
- Instruction Manual
Downloads
- MT275 Technical Datasheet
- MT275 Instruction Manual
