Description
- CAT IV 600V and CAT III 1000V
- 3 test ranges 250V-500V-1000V
- 600V AC voltage range
- Live Circuit warning and buzzer
- Data Hold function
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Automatic discharge after test
- Front panel zero adjustment for test lead resistance
- Lock down Test Button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmould housing
- Illuminated display
The MT500 is a rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environment.
Specifications
| Function | Range | Resolution | Accuracy |
| AC voltage | 0 – 600V | 20V | ±(5.0%) |
| Resistance | 3Ω – 500Ω | 0.05Ω | ±(3.0%) |
| Insulation resistance 250V | 250V | 0 – 100MΩ | ±(5.0%) |
| Insulation resistance 500V | 500V | 0 – 200MΩ | ±(5.0%) |
| Insulation resistance 1000V | 1000V | 0 – 400MΩ | ±(5.0%) |
| Short circuit current | 1.3mA | ||
| Overrange indication | Yes | ||
| AC Bandwidth | 40Hz – 400Hz | ||
| Digital Display | Analogue Display | ||
| Continuity | Yes | ||
| Auto discharge | Yes | ||
| Input impedance | >1.2MΩ VAC | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Batteries | 6 x AA | ||
| Weight | 700g | ||
| Dimensions | 200 x 92 x 50mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V | ||
Safety Ratings
Includes:

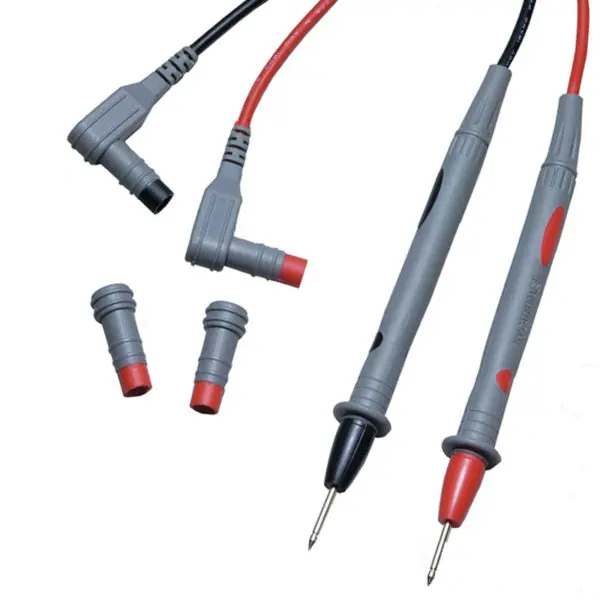

- Test Leads
- Black Crock Lead
- Magnetic Strip
- Carrying Case
- Adjustable shoulder strap
- 6 x AA Batteries
- Instruction Manual
Downloads
- MT500 Technical Datasheet
- MT500 Instruction Manual
