Description
- CAT III 300V and CAT II 600V
- Current measurement from 1mA
- Measures AC and DC current to 100 Amps
- Ø17mm Cable Clamp size
- 2000 count backlit LCD display
- Measurement of DC voltage and AC voltage up to 600V
- Capacitance to 20mF
- VFC – Variable Frequency Drive voltage value
- Microprocessor Zero adjustment
- NCV – Non-Contact Voltage Detector
- Continuity buzzer and Diode Test
- Data Hold function
- Auto Power Off

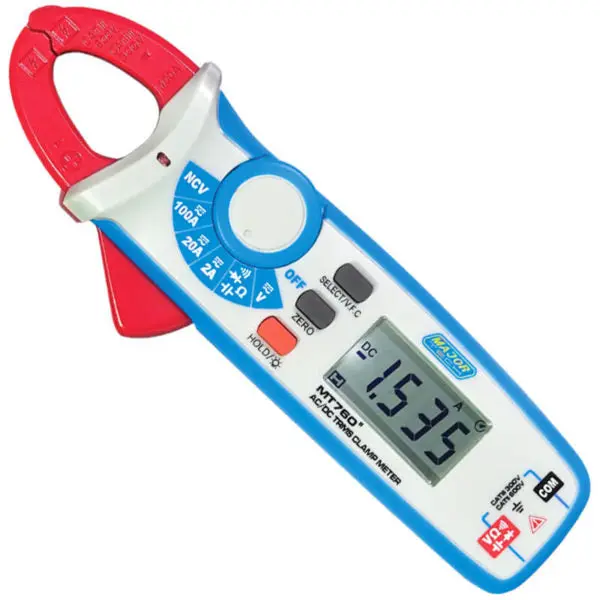

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.
Specifications
| Function | Range | Resolution | Accuracy |
| DC Current | 2.000A – 100.0A | 1mA | ±(2% + 8 Digits) |
| AC Current | 2.000A – 100.0A | 1mA | ±(3% + 10 Digits) |
| DC Voltage | 200.0mV – 600V | 0.1mV | ±(0.7% + 5 Digits) |
| AC Voltage | 2.000V – 600V | 1mV | ±(1% + 3 Digits) |
| AC Voltage VFD | 200.0V – 600V | 100mV | ±(4% + 3 Digits) |
| Resistance | 200.0Ω – 20.00MΩ | 0.1Ω | ±(1% + 2 Digits) |
| Capacitance | 2nF – 20.00mF | 1pF | ±(4% + 5 Digits) |
| True RMS Measurements | ACA, ACV | ||
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | 2000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 17mm | ||
| Input Impedance | >1MΩ DCV & >1MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Over moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 170g | ||
| Dimensions | 175 x 60 x 33.5mm | ||
| Safety Specs | IEC61010-1 CAT II 600V | ||
Safety Ratings
Includes:
- Test Leads
- Carrying Case
- 2 x AAA Batteries
- Instruction Manual
