Description

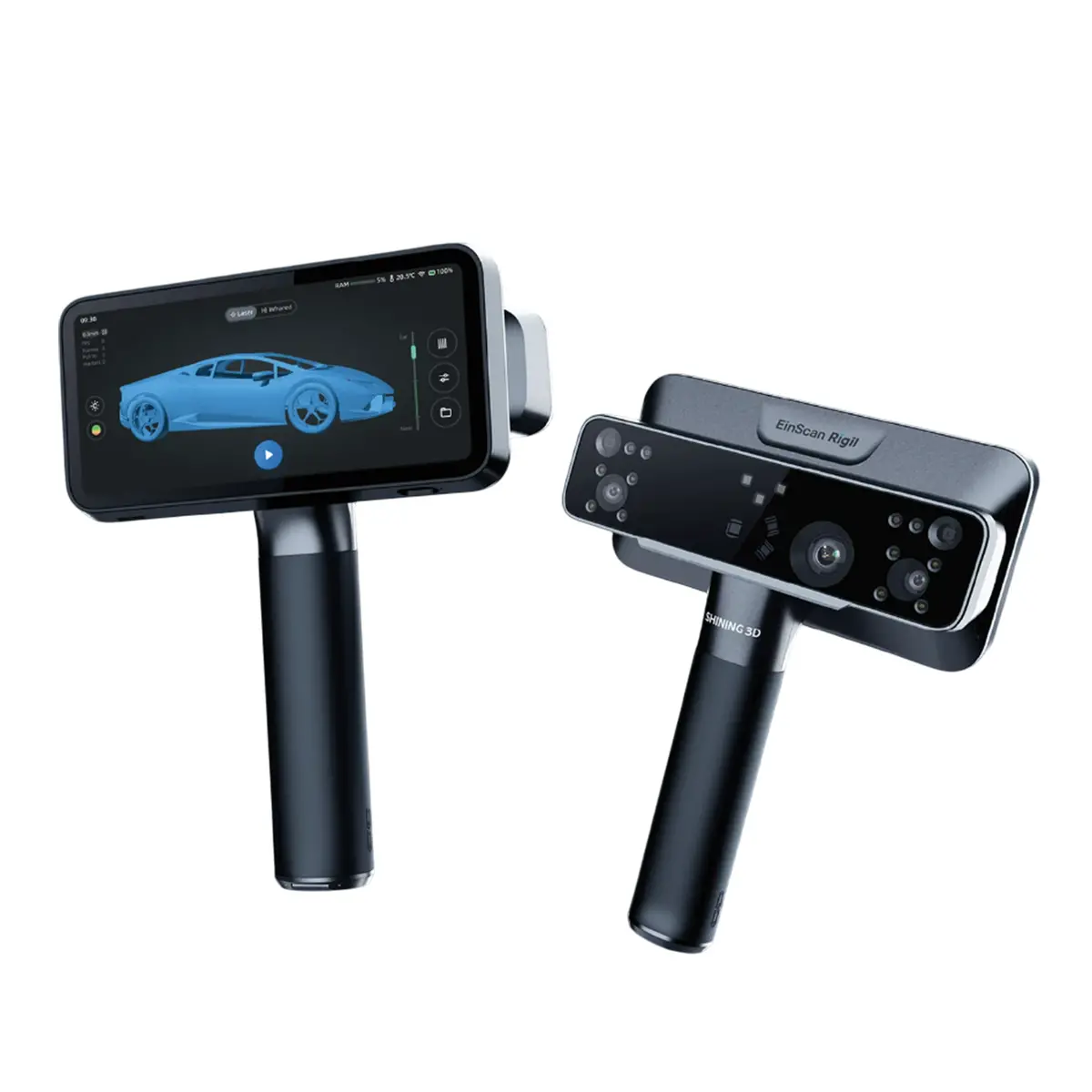

EinScan Rigil updated version 1.2

Price, as all prices on our site, is tax inc.

The Tri-Mode Laser 3D scanner

• Triple Work Modes: Standalone & Wireless PC & Wired PC
• Hybrid Light Source: Blue Laser + IR VCSEL
• Marker-Free Laser Scanning
• Full-Wireless Workflow

Download Brochure

Rapid, Refined, Reliable

• Triple Work Modes
• Hybrid Light Sources
• Marker-Free Laser Scanning
• Full-Wireless Workflow
• Powerful Hardware
• Dynamic Laser Switching

Triple Work Modes

The EinScan Rigil offers three operation modes to unlock max performance and flexibility

• Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.

• Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.

• Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

Hybrid Light Source

2 separate groups of cameras are specifically designed to capture different light sources respectively.

• Blue laser lines
• VCSEL infrared

Laser HD Mode

Provides high-quality models with  0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

• 31 + 31 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
• 7 parallel laser lines: for fine details, provides consistent results.

Dynamic Laser Switching

Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

IR Rapid Mode

VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.

• Volumetric accuracy up to 0.1 + 0.3 mm/m
• Working distance 160 ~ 1500 mm
• Scanning speed up to 1,600,000 points/s

Marker-Free Laser Scanning

EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.

Full Color Texture Scanning

Equipped with a 5MP high-definition camera that can restore high-quality texture details,  allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

Wireless Workflow

• Wireless scanning: Without connecting to PC
• Wireless transfer: Data sharing to SHINING 3D Cloud
• Wireless screen casting: Display on a second screen

Reliable Scanning from Workshop to Outdoors

• Working efficiently in sunlight outdoors.
• Adaptable for dark and reflective metal surfaces without spray.

Powerful Hardware

• 6.4” 2K AMOLED
• 32GB DDR5 RAM
• 32GB eMMC + 1TB SSD ROM
• 5500mAh × 2 Replaceable Batteries

Technical Data

• Work mode Wireless Standalone | PC-Wireless | PC-Wired
• Scan mode Laser HD | IR Rapid
• Light source Blue laser | IR VCSEL
• Resolution Laser HD Mode: 0.05 ~ 10 mm | IR Rapid Mode: 0.2 ~ 10 mm
• Scan speed Laser HD Mode: 4,800,000 points/s | IR Rapid Mode: 1,600,000 points/s
• Working distance Laser HD Mode: 170 ~ 550 mm | IR Rapid Mode: 160 ~1500 mm
• Alignment mode Global Markers / Markers / Features / Texture / Hybrid

What’s In The Box

• EinScan Rigil
• Battery
• Battery Compartment & Charging Cable
• Carrying Case
• Calibration Board
• Universal Holder
• Power Adaptor
• Type C-Type C Cable for Scanner
• Marker Removal Tool
• 3mm and 6mm Reflective Markers
• Tempered Glass Screen Protector
• Cleaning Cloth
