Description

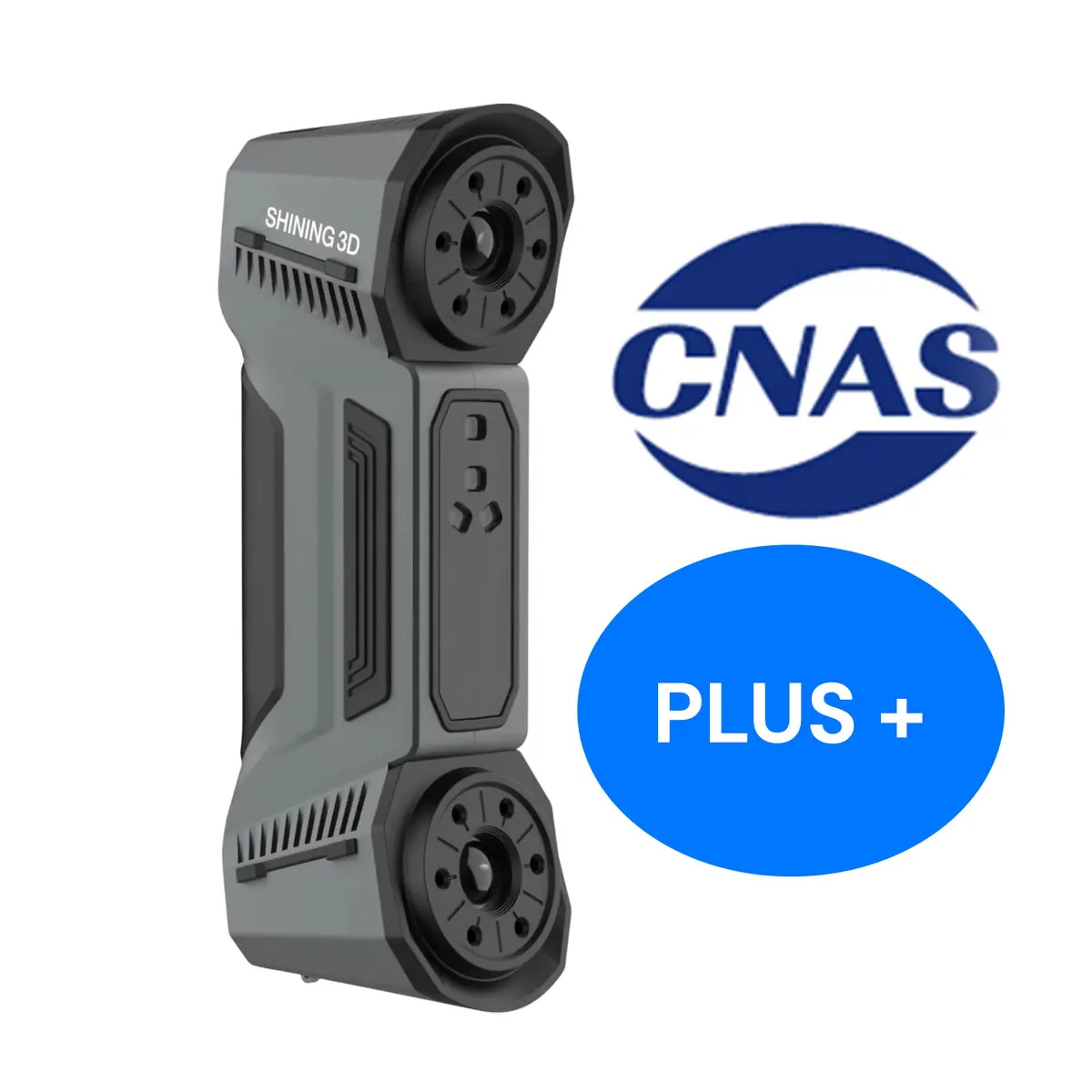

Multifunctional Metrology Laser 3D Scanner wtih CNAS
Standalone Scanner Includes:
- Freescan Combo Scanner
- Pelican-style Travel Case
- Freescan Scanning Software
-
CNAS Accreditation
CNAS Accreditation:
Shining 3D’s Accuracy Laboratory is CNAS accredited, meaning their measurement processes and calibration results are traceable and adhere to international standards like ISO 17025 and VDI/VDE 2634, ensuring reliable and accurate scanning results.

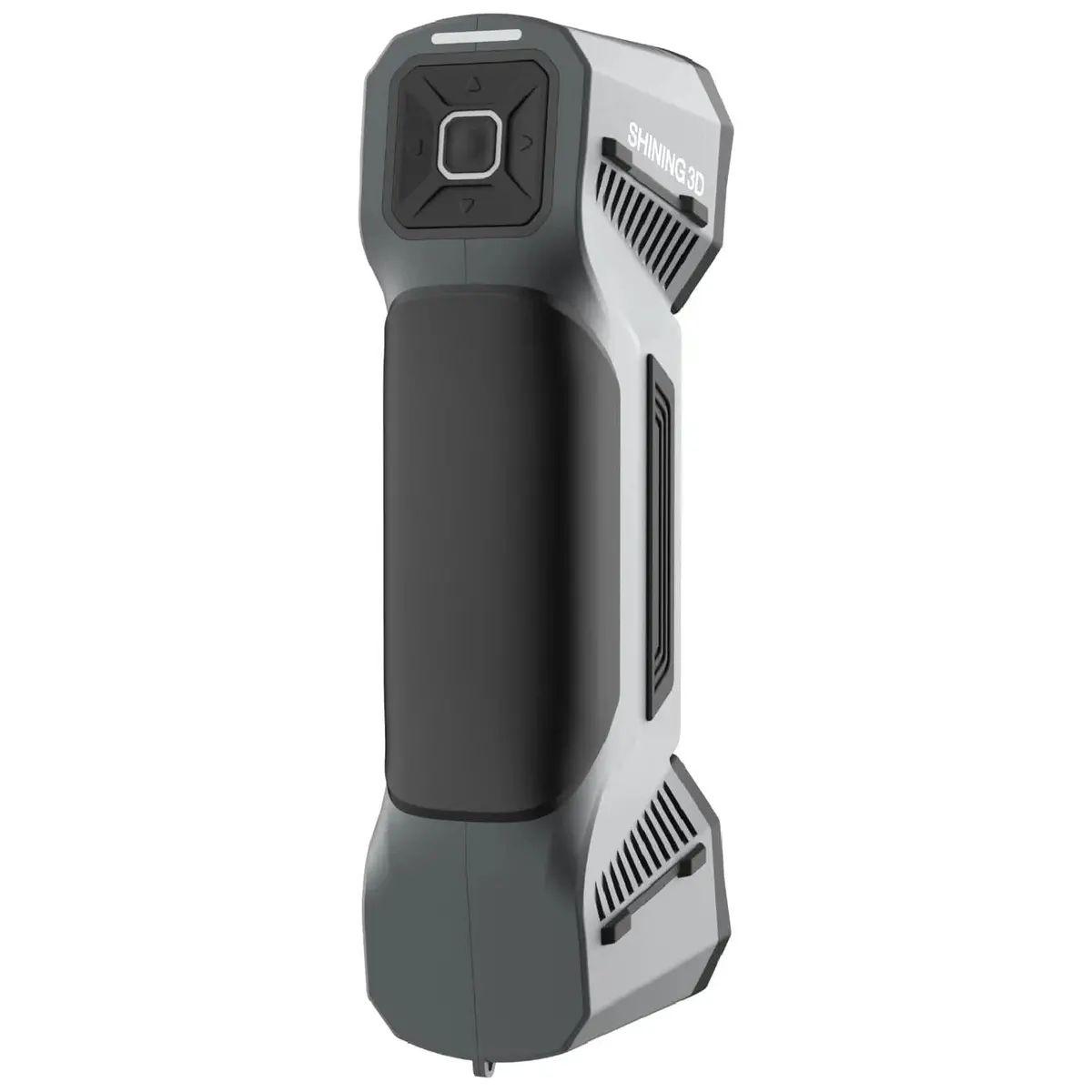

Compact and Powerful Metrology
Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It’s equipped with both blue laser and infrared VCSEL technology and weighs only 620g.
Metrology-Grade Accuracy
Accuracy 0.02mm, delivers consistent scanning results with high precision.
Versatile Dual Light Scanning
An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.
Multiple Scanning Modes
Up to 25 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.
Lightweight and Compact
The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.
Blue Laser & Infrared Light
An innovative combination of blue laser and infrared light ensures accurate results in various scenarios, improving both efficiency and quality.
Four 3D Scanning Modes to Cover All Types of Workpieces
- Multiple-line mode with 26 or 50 laser lines for overall scans
- Fine scanning mode with 7 parallel laser lines to acquire intricate details
- Deep hole scanning mode with 1 single laser line
- Infrared light mode for quick scans without markers
A Wise Choice for Metrology
The FreeScan Combo Series’ laser scanning modes can achieve industrial-grade accuracy of 0.02 mm*, making it ideal for metrology applications.
*Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025:2017 under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.
Fast Scan Speed
It’s multiple line mode projects up to 50 laser lines (FreeScan Combo + version) and scan at speeds of up to 3,600,000 points/sec
Powerful and Ergonomic
The FreeScan Combo Series boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.
The optimized camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.
Infrared Light Scanning
For feature-rich workpieces, the infrared light scanning mode is ideal. It captures parts quickly and efficiently without the need for markers.
Metrology Kit
Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.
FreeScan Software
No subscriptions, no hidden fees.
SHINING 3D FreeScan Combo Series 3D Scanners come with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-Step Guidance
The FreeScan software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Multiple Scan Modes
With FreeScan software, the Combo supports four kinds of scanning modes, providing users with the flexibility to choose according to their needs.
AI Data Cleanup
FreeScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, delivering more ideal results.
Adjustable Resolution
FreeScan software can select corresponding solutions based on different scanned samples, making it more flexible in meeting various scanning requirements.
Technical Data
- High-speed Scanning50 or 26 laser lines
- Detailed Scan7 laser lines
- Deep Pockets1 single line
- No Markers ScanInfrared mode
- Accuracy0.02 mm
- Max. FOV520 × 510 mm / 600 × 600 mm
- Volumetric Accuracy0.02 + 0.033 mm/m
- Point Distance0.05 ~ 10 mm / 0.1 ~ 3 mm
- Scan SpeedUp to 3,600,000 points/s
- Weight620g
- CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
- Accuracy CertificationVDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
