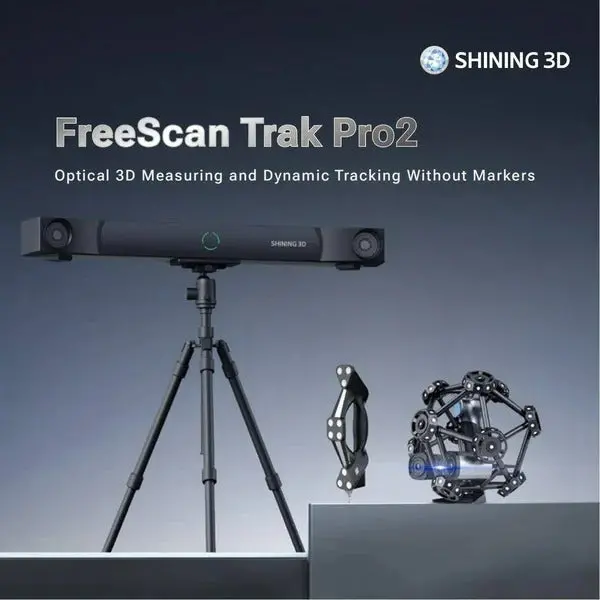

FreeScan Trak Pro2

Optical 3D Measuring and Dynamic Tracking without Markers

• Accuracy of 0.023 mm (0.0009 in)
• High-speed scanning up to 3,070,000 points/s
• Large tracking range
• Compatible with FreeProbe (optional)

Optical 3D Measuring and Dynamic Tracking without Markers

The ideal metrology tool for quality control and 3D inspection. With high accuracy and repeatability, the FreeScan Trak Pro2 enables fast, accurate inspection of various part types and surfaces without the need for markers.

No Markers Needed

The FreeTrak dynamically tracks the TE25 scanner using its tracking targets, eliminating the need to manually place markers on the scanned object.

Exceptional Accuracy

FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023mm.

3 Options of Laser Line Modes

The scanner features 50 crossed laser lines for quick and highly accurate scans, 7 parallel laser lines for partial HD scans with extremely fine details, and 1 single laser line for deep hole scanning with a hole diameter to depth ratio of 1:4.

Wide Measuring Range

FreeScan Trak Pro2’s wide and expandable tracking range allows measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrogs in the scanning process.

Dynamic Referencing, No Markers Needed

The FreeTrak dynamically tracks the TE25 scanner using its tracking markers, eliminating the need to manually place markers on the scanned object. This markerless operation saves time and makes the 3D scanning process much smoother.

Exceptional Accuracy

The FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023 mm*.
*Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in an accuracy lab certified with ISO/IEC 17025:2017, under environmental conditions of 20 ± 0.5°C temperature and 40-60% RH humidity.

Wide Measuring Range

The FreeScan Trak Pro2’s wide and expandable tracking range allows the measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrog in the scanning process.

Supports Both Optical Tracking and Marker Scanning

Switch between these two modes based on your requirements and the type of object to scan. This duality offers the flexibility to cover a wider range of applications and surface types.

High-Speed Scanning

Paired with its 50 blue laser lines, the FreeScan Trak Pro2’s two industrial-grade cameras, each with 5.0MP resolution, enable ultra-high-speed data acquisition for a smooth scanning experience.

FreeProbe (Optional)

・Ergonomic design for easy grip and use
・Sturdy structure to ensure accuracy
・Multifunctional button for versatile functionality
・Integration with PolyWorks and ControlX for quick inspection
When only specific data is needed, use the Probe to create geometric features for quick inspection or measurement without generating mesh data.

FreeScan Trak Software

Robust & Intuitive Software

Multiple Scan Modes

FreeScan Trak software supports markerless track scan, laser scan, and contact scan with the FreeProbe (optional).

Real-Time Mesh Data Display

The software displays mesh data in real time as you scan your workpiece, saving time on point cloud meshing later on.

Adjustable Resolution

You can change the resolution while you’re scanning, without having to restart your project.

Distance & Data Quality Visualization

Check if the working distance is correct by observing the laser line color on the object. A built-in quality indicator also highlights areas lacking data.

Technical Data

• High-speed scanning50 laser lines
• Detailed scan7 laser lines
• Deep pockets1 single line
• Accuracy0.023 mm
• Volumetric accuracy9.6 m³: 0.062 mm; 17.6 m³: 0.072 mm
• Volumetric accuracy (w/ photogrammetry)0.044 + 0.012 mm/m
• Max. FOV650 x 580 mm
• Scan speedUp to 3,070,000 points/s
• Point distance0.01 ~ 10 mm
• FreeProbe (optional) accuracy0.025 mm
• CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, TISAX
• Accuracy certificationVDl/VDE 2634 Part 3 (ISO 17025 certified lab)
