Description

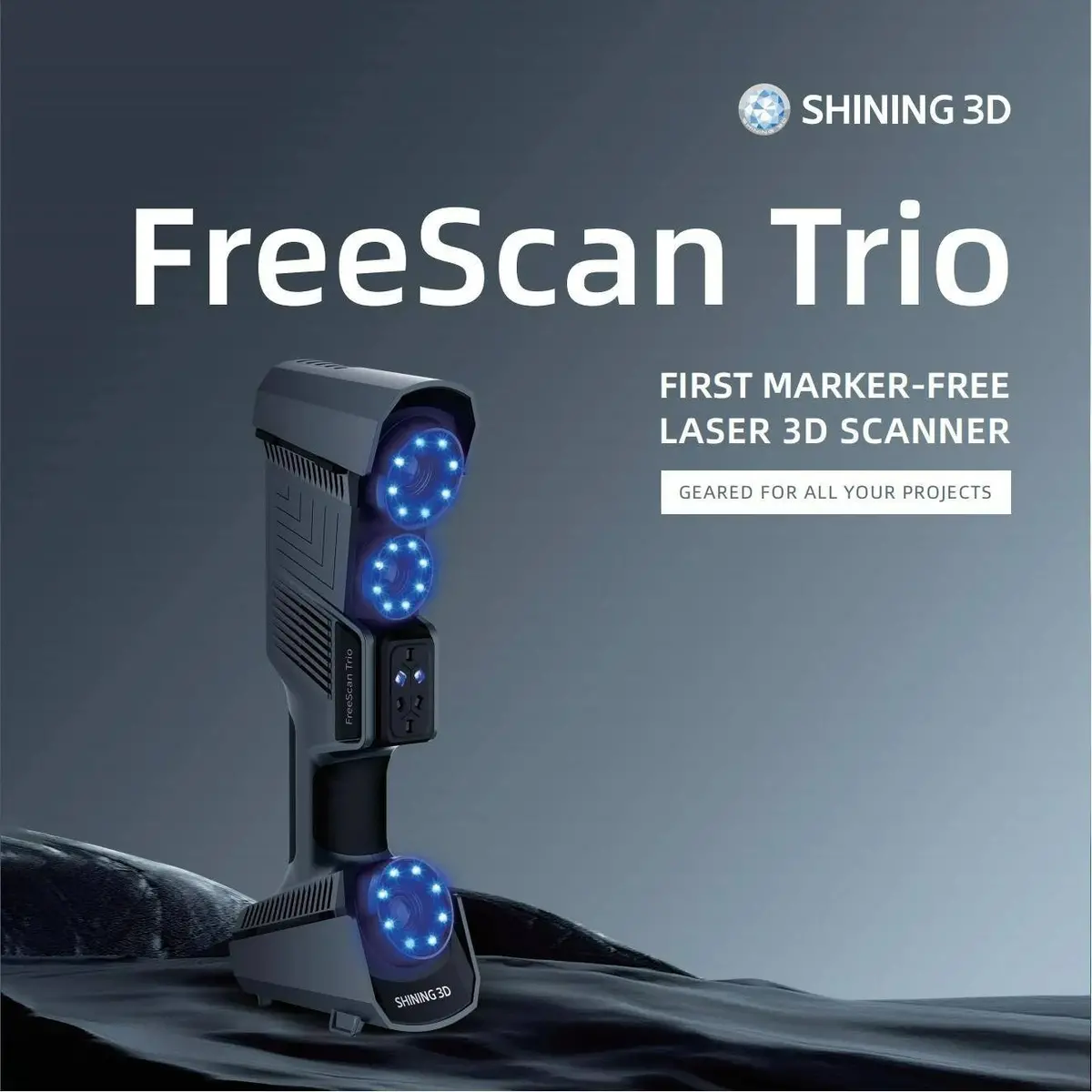

FreeScan Trio and Control X Essentials Bundle

World’s First Marker-Free Handheld Laser 3D Scanner

• Accuracy of 0.02 mm with markers
• Speed up to 3,010,000 points/s
• Three 5 megapixel cameras
• 4 scanning modes and built-in photogrammetry

Geomagic Control X

Geomagic Control X is a professional metrology software designed to capture and process data from 3D scanners and other measurement devices. It enables precise measurements, deepens understanding, and facilitates effective communication of inspection results, ensuring quality throughout your operations. With Control X, more people in your organization can:

• Measure faster
• Measure completely
• Measure often
• Measure anywhere

Innovation Meets Every Inspection

FreeScan Trio is the industry’s first marker-free handheld 3D scanner that owns the unique innovative techologies to address a wide range of inspection tasks.

Speed and Efficiency Redefined

The FreeScan Trio redefines speed and efficiency with its 98 laser lines that enable marker-free scanning. It can deliver up to 3,010,000 points per second. Less preparation, more efficiency.

The Power of Three 5MP Cameras

With three industrial cameras, each wielding 5MP, the FreeScan Trio brings out the most elaborate details and high-quality 3D data.

Certified and Guaranteed Results

Under the scan modes with markers, the FreeScan Trio consistently provides high-precision scanning results with an accuracy of 0.02 mm.

Quick On-Site Inspection

Simplify operations and enhance fast quality check for various on-site inspection tasks.

Intelligent Self-Positioning Technology

• No Markers Scan Mode

FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.

• 3 Industrial 5MP Cameras

With three industrial cameras, each wielding 5MP, FreeScan Trio brings out the most elaborate details and high-quality 3D data.

Perfect High Details Capture

FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.

Deep Hole Mode

Both 26 and single laser lines of FreeScan Trio are capable of scanning holes, deep pockets and fin walls, thanks to its optimized camera angles and advanced scanning modes.

Video Photogrammetry (VPG)

FreeScan Trio features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

FreeScan Software

Intuitive & Powerful

Flexible Resolution

Be able to change the resolution later according to your need, without restarting the project.

Real-Time Display of Mesh Data

Our streamlined software displays mesh data in real time, enhancing visual quality and saving time on meshing later on.

Data Quality Visualization

Allows the collected data quality to be visualized directly in the software.

Customized Scanning Template

Save time and ensure measurement consistency by using customizing scanning settings. No need to set parameters manually.

Technical Data

• High Speed Scan26 laser lines
• Detailed Scan7 parallel laser lines
• Deep Hole Scan26 / single laser lines
• No Markers Scan98 laser lines
• Large PartsPhotogrammetry mode, no coded markers required
• Accuracy0.02 mm
• Volumetric Accuracy0.02 + 0.015 mm/m (with photogrammetry)
• Scan SpeedUp to 3,010,000 points/s
• Max. FOV650 x 580 mm
• Point Distance0.01 ~ 3 mm
• CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
• Accuracy CertificationVDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
