Description

FreeScan UE Pro (CNAS)

CNAS Accreditation:

Shining 3D’s Accuracy Laboratory is CNAS accredited, meaning their measurement processes and calibration results are traceable and adhere to international standards like ISO 17025 and VDI/VDE 2634, ensuring reliable and accurate scanning results.

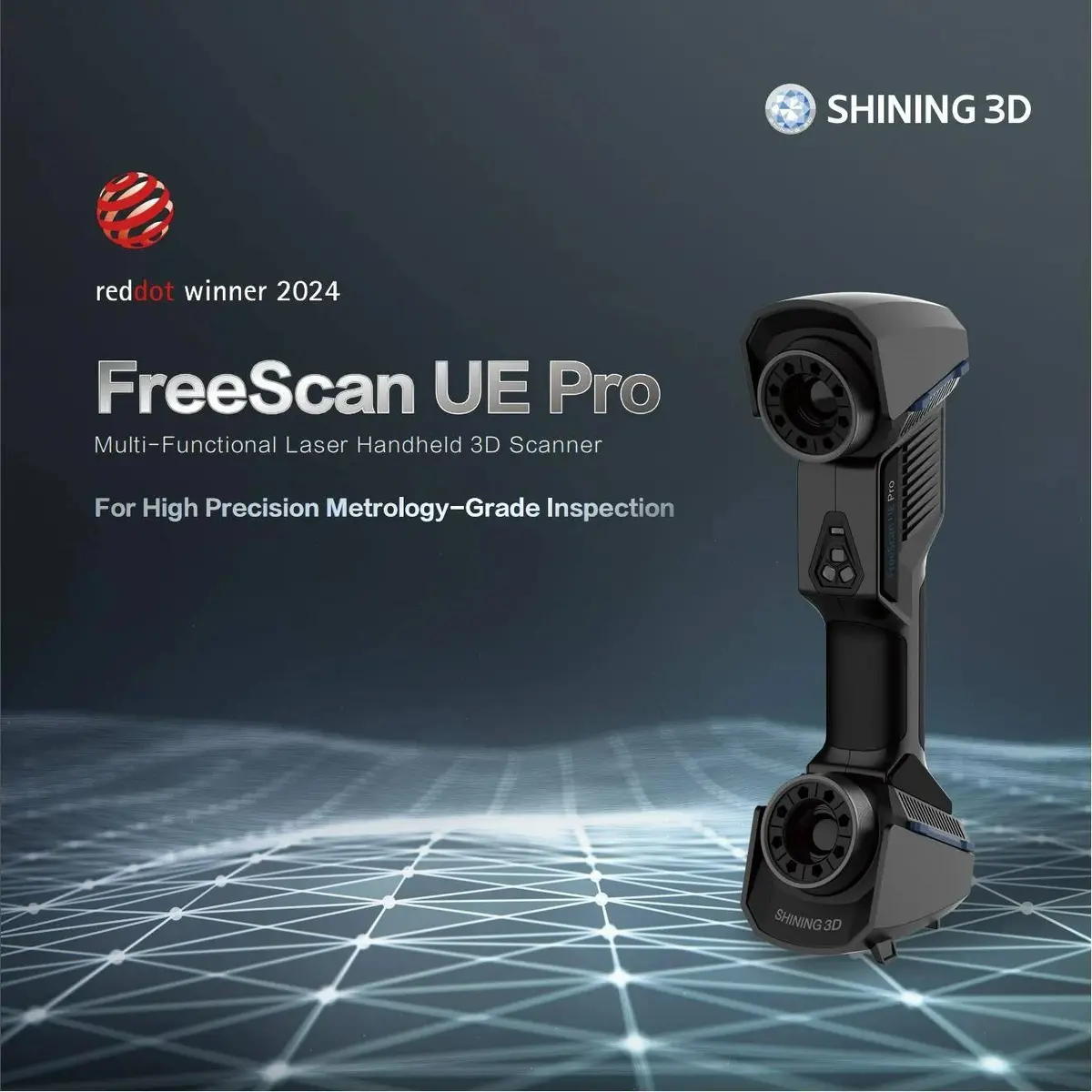

Metrology Laser Handheld 3D Scanner

• Accuracy of 0.02 mm with markers
• Speed up to 1,850,000 points/s
• 3 scanning modes and built-in photogrammetry
• Reddot winner 2024

For High Precision Metrology-Grade Inspection

FreeScan UE Pro inherits the high-precision, metrology-grade accuracy, and lightweight design of FreeScan UE, while enhancing the ability for fine scanning and global precision control of large-scale workpiece scanning.

Metrology-Grade High Accuracy

Accuracy of 0.02mm, delivers consistent scanning results with high precision.

Global Precision Control

Integrated video photogrammetry (VPG) function no need to apply coded markers, quickly locks the spatial position of the marker frame.

Multiple Scanning Modes

13 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details and single laser line for deep hole and pocket area scanning.

Easy Operation

Inheriting the lightweight and ergonomic design of the UE series, the user-friendly scanning software enables an easy operation and shortens the learning curve.

High-Accuracy Scanning for Small to Large-Scale Objects

With built-in photogrammetry, the FreeScan UE Pro achieves high accuracy and exceptional detail capture, accommodating objects of diverse sizes from small to large. It seamlessly addresses a wide array of industry applications and performs exceptionally well, even in outdoor scanning environments.

Unrelenting Accuracy and Precision

For quality control, inspection, and reverse engineering, its 0.02 mm accuracy* and high-precision performance ensure consistent, dependable results.

*Based on VDl/VDE 2634, sphere-spacing errors are assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume. Assessment takes place in an accuracy lab certified to ISO/IEC 17025:2017 standards under controlled environmental conditions: temperature maintained at 20 ± 0.5℃ and humidity between 40% to 60% RH.

Video Photogrammetry (VPG)

FreeScan UE Pro features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers.

This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

Multiple Scanning Modes

• 26 laser lines: 600x550mm FOV for fast 3D scanning
• 7 laser lines: Industrial-grade, 3.2MP cameras to capture exceptional detail
• 1 single laser line: Optimized camera angle for pockets and holes

Fine and Rich Details

Equipped with 3.2 Megapixel higher resolution cameras and 7 parallel laser lines, the FreeScan UE Pro facilitates detailed object scanning, ensuring accurate restoration of fine details.

Metrology Kit

Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.

Technical Data

• High-speed Scanning26 laser lines
• Detailed Scan7 laser lines
• Deep Pockets1 single line
• Large PartsPhotogrammetry mode, no coded markers required
• Scan Accuracy0.02 mm
• Scan Speed1,850,000 points/s
• Volumetric Accuracy0.02 + 0.015 mm/m (with photogrammetry)
• Max. FOV600 × 550 mm
• Point Distance0.01~ 10 mm
• Weight840g
• CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
• Accuracy CertificationVDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
