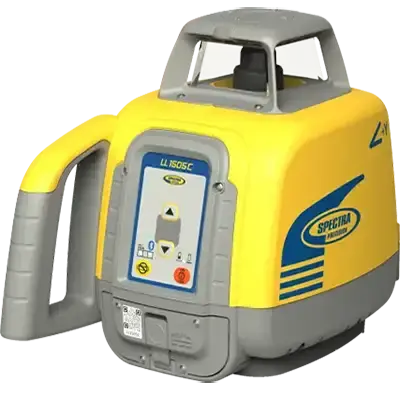

Spectra Precision LL1505C Automatic Self-Leveling Laser Level with HL760 Receiver

Description

Spectra LL1505C laser level prepared to perform at all times.

 The automatic, self-leveling Spectra Precision® LL1505C Laser Level is the most rugged laser level available, tough enough to handle a wide variety of general and concrete construction applications. The rugged laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip overs up to 1.5 meters (5 feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Exactly what you need in one tool.

Take command of the LL1505C

• Single person manual slope control

• Complete kits available, and fits in one case with tripod and grade rod

• Energy-efficient design offers long battery life

• Highly durable design able to survive a drop up to 1m (3 feet) onto concrete

• Remote control or remote control app allows operation of laser functions from anywhere on the jobsite

Features & Benefits

• Automatic horizontal self-leveling

• Accuracy 1.5mm / 30m (1/16 inch / 100 ft)

• Working range of 1200m (4,000 ft) diameter with HL760 receiver

• Bluetooth connection allows laser control with a smartphone

• Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings

• Simple keypad for easy grade matching

• Selectable rotation speed is ideal for working with machine mounted receivers

• Power versatility – charge the batteries inside or outside the laser. Alkaline batteries can also be used

• Extremely durable and portable

• 5 Years warranty

Specifications

Leveling Accuracy

± 1,5mm / 30m; 1/16 in @ 100ft;

10 arc seconds

Rotation Speed

 300, 600, 900 rpm

Self-Leveling Range

Typ. ± 5° (± 8.7%)

Radio Range

HL760-Up to 100m (330 ft)

Operating Temperature

-20°C to +50°C (-4°F to +122°F)

Storage Temperature

-25°C to +70°C (-13°F to +158°F)

Power Source

10,000 mAh NiMH battery back or

4 x 1.5V D alkaline batteries

Battery Lifetime (NiMH)

Up to 55 hours

Battery Charging Time

< 10 hours

Battery Charging Temperature

5°C to +40°C (+41°F to +104°F)

Charger Input Voltage

100V-240VAC ± 10%, 50 Hz – 60 Hz

Dust and Water Proof (IP)

IP66

Weight

3.49 kg (7.7 lbs) (incl. Battery pack)

Product Dimensions

240mm x 280mm x 180mm

(9.45 in x 11.02 in x 7.09 in)

What’s Include:

• LL1505c Horizontal Laser Level
• HL760
• C70 Clamp
• Nimh Rechargeable Batteries
• Charger
• Small Case
