Description
Monitor Ambient and In-situ Temperature and Relative Humidity remotely
WITH SECURE MONITORING SOFTWARE
The Tramex Remote Environmental Monitoring System Xtra has been designed and developed by Tramex for professionals who depend on the most accurate, reliable, real-time building environment temperature and relative humidity readings using state of the art technology to respond quickly to environmental changes and notify users.
The TREMS-Xtra comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, as well as 5 external Relative Humidity probes. These external probes extend the benefits of the remote monitoring system allowing for in-situ readings within building structures cavities in walls and ceilings and in situ RH readings in concrete.

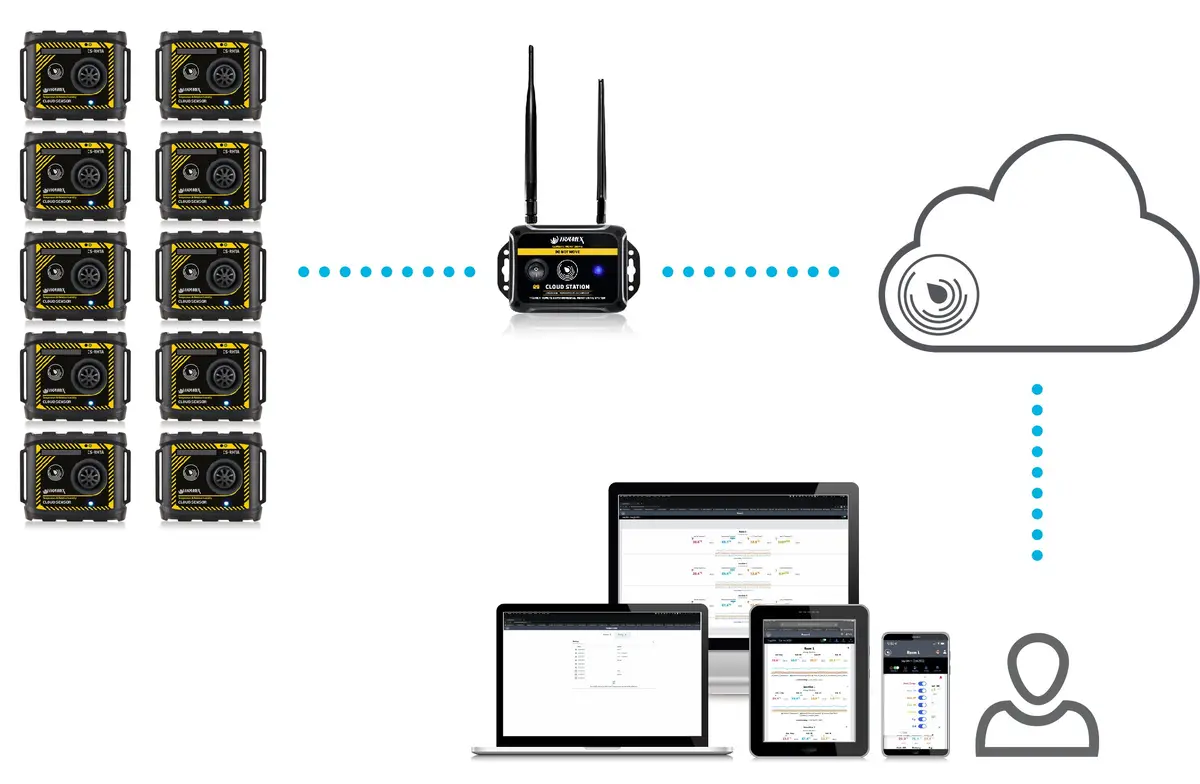

Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available. Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.
KITS INCLUDES
TREMS-Xtra
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x External Relative Humidity probe for in-situ
- 1 x Tramex Cloud Station
- 1 x Heavy duty protective carry case
- Tramex Cloud Software Monitoring platform (tablet not included)
- Antennae for Cloud Station
TREMS-Xtra-25
- 255 x CS-RHTX Tramex Cloud Sensors
- 25 x External Relative Humidity probe for in-situ
- 1 x Tramex Cloud Station
- 1 x Heavy duty protective carry case
- Tramex Cloud Software Monitoring platform (tablet not included)
- Antennae for Cloud Station
TREMS-Xtra-50
- 50 x CS-RHTX Tramex Cloud Sensors
- 50 x External Relative Humidity probe for in-situ
- 1 x Tramex Cloud Station
- 1 x Heavy duty protective carry case
- Tramex Cloud Software Monitoring platform (tablet not included)
- Antennae for Cloud Station
SPECIFICATION

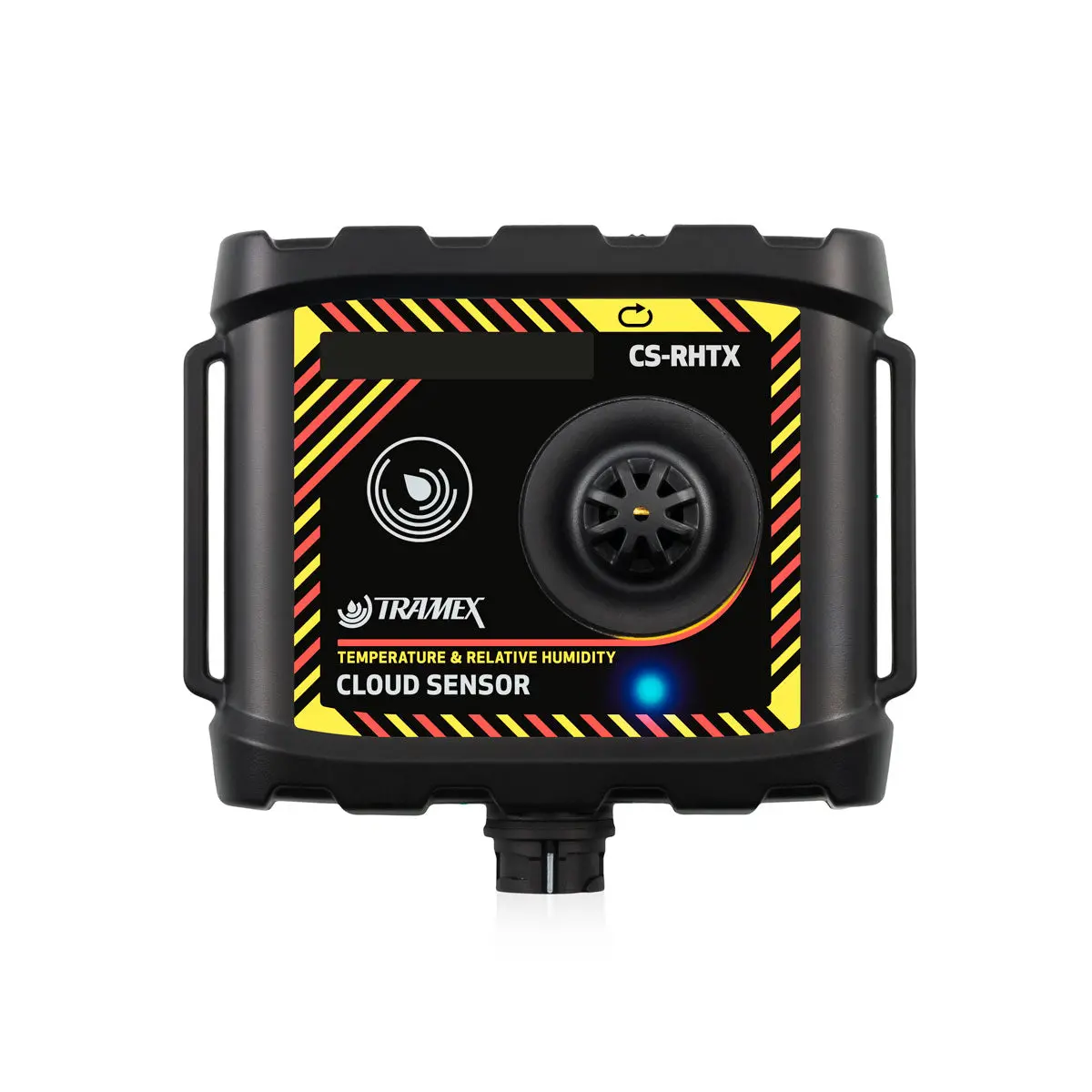

Cloud Xtra Sensor
Temperature Sensor Specifications:
| Exceptional Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection: | PTFE Film protects sensor opening from water & dust |
| Drift: | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Specifications:
| Transmission Range: | Over 3kms line-of-sight |
| Communication Frequency: | Multiple readings per hour. |
| Identification: | Items individually coded for ease of install and logging identification. |
| Size: | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight: | 100g (3.53oz) |
| Construction: | ABS enclosure |
| Power: | Built in long-life CR123A battery |
| Included: | Wall Mounting |
Relative Humidity Sensor
Temperature Sensor Specifications:
| Exceptional Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection: | PTFE Film protects sensor opening from water & dust |
| Drift: | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Tramex Cloud Specifications
| Frequency: | Region Specific frequency available |
| Security: | WPA2-PSK encryption, no unwarranted telemetry/tracking. |
| Size: | 150mm x 90mm x 50mm (5.9” x 3.6” x 2”) |
| Weight: | 280g (9.9oz) |
| Power: | Universal AC Power Adapter |
| Construction: | Wall-mountable ABS enclosure |
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
Kit Specifications
| Size: | 43.5cm x 36cm x 14cm (17.1” x 14.2” x 5.5”) |
| Weight: | 3.56kg (7.6lbs) |
| Power: | 5 x CR123A 3-volt batteries (included) |
Data Sheet
