Description

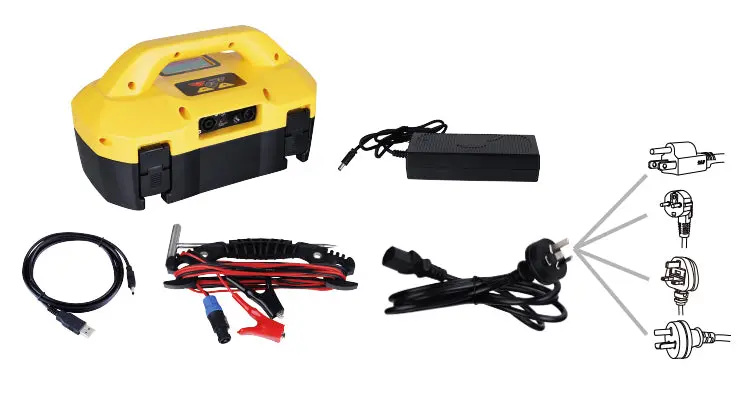

Loc3-25Tx, 25-Watt Transmitter includes:
- Tx Carry Bag
- Ground stake
- Direct connection lead
- Li-ion Battery tray
- Charger
- Mini-USB cable
Key Features
- 4 Amp peak current output
- 130 Volts peak output
- Light and portable for everyday use
- ELF and Low frequencies available minimum distortion
- Signal clamp compatibility
The powerful 25-watt transmitter is the go-to transmitter for cable fault locating, finding holidays on coated pipes, problematic deep-buried lines, and long-distance pipe and cable locating. The Loc3-25Tx is also well suited for applications for cathodic protected longline pipelines and gas distribution in city areas needing a low-frequency high output transmitter.
The Loc3-25Tx transmitter has selectable direct connection frequencies from 32Hz to 9.82kHz and signal clamp frequencies from 8kHz to 9.82kHz. The two-inch by one-inch dot matrix display with LED backlight shows the user output current, volts, frequency and user feedback warnings.
The Loc3-25Tx is packaged in a rugged, ergonomic IP54 housing and is lightweight at only 7.05lbs (3.19kg). The transmitter provides consistent current output up to 4 Amps peak. The transmitter comes in a soft carry bag with a storage pocket for everyday accessories and can be operated while inside the carry bag.
 brochure |
Size | Download |
|---|---|---|
| Loc3 Series Transmitters Sales Sheet V1.0 | 909.40 KB | Download |
| MyLocator3 Data and Locator Managment Apps Sales Sheet V1.2 | 437.75 KB | Download |
 technical-specification |
||
| Loc3-25Tx, 25-Watt Transmitter Technical Specifications V1.4 | 491.53 KB | Download |
 manual |
||
| Loc3-25Tx Transmitter Insert | 1.54 MB | Download |
