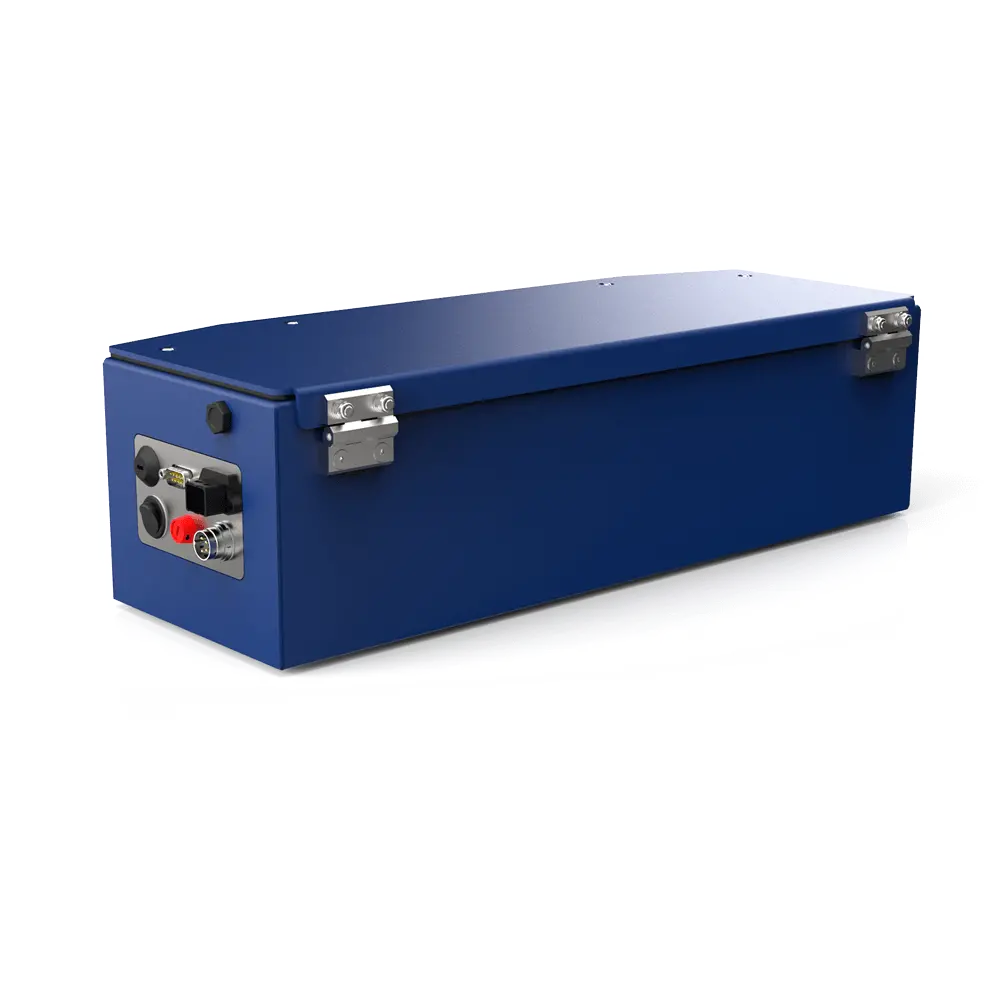

Description
The laser projector is equipped with a fiber laser with a standard output power of 7 mW, which can be ordered with up to a maximum of 14 mW. The projector is suitable for projection distances from 50 cm up to 7 meters. The data communication can be provided via Ethernet, serial or through a PLC.

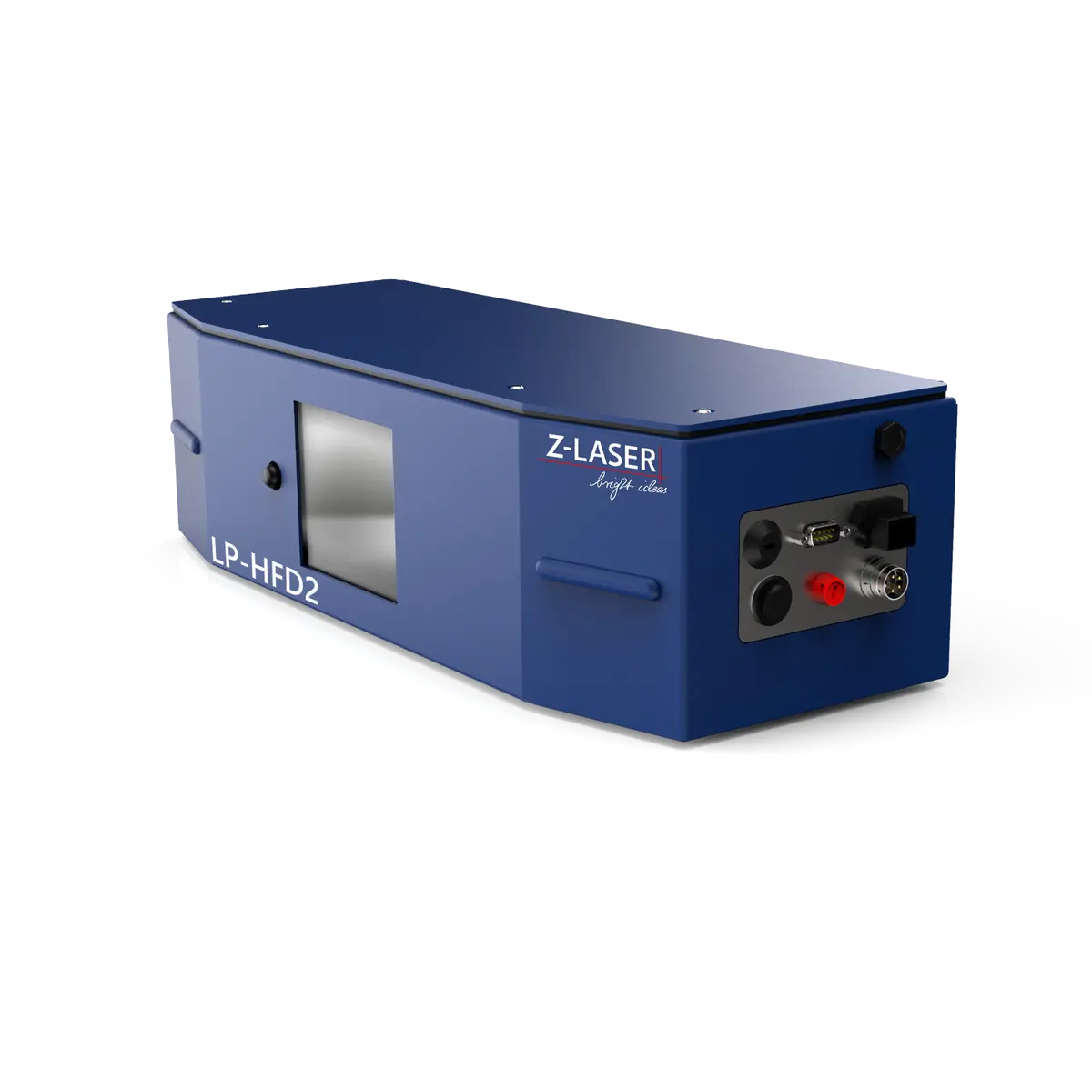

The LP-HFD2 is the successor of our proven LP-HFD laser projector.
This high-power laser projector with a fiber-coupled laser source offers the highest projection accuracy. It is optimized for displaying 2D and 3D projections. Presentation of CAD data is easily doable with the enclosed LPM software. Coupled with the laser projector, it can also be used as a multi-projection system.
In addition to its new casing, and its IP65 protection class, special emphasis was placed on temperature stability during development.
Cooling options such as a fan hose and water cooling are available for use at higher ambient temperatures. Ethernet is the typical data connection mode. In addition, communication via Profinet or a serial connection is possible.
If this is for a new installation, please contact us – power supply, mounting bracket and software is not included.
Addition information
| Weight | 7300 g |
|---|---|
| Dimensions | 500 × 200 × 141 mm |
| Output power |
14 mW, 7 mW |
| Wavelength |
520 nm, 638 nm |
| Projection |
2D, 3D, CAD, Circle, Cross, DOE, Line, Point |
| Beam angle |
60°x60°, 80°x80° |
| Application |
Assembling, Mounting/set-up, OEM, Positioning |
| Technology |
Fiber-coupled laser |
| Supply voltage |
24 VDC |
| Laser class |
2M |
| IP protection class |
IP 65 |
