Description

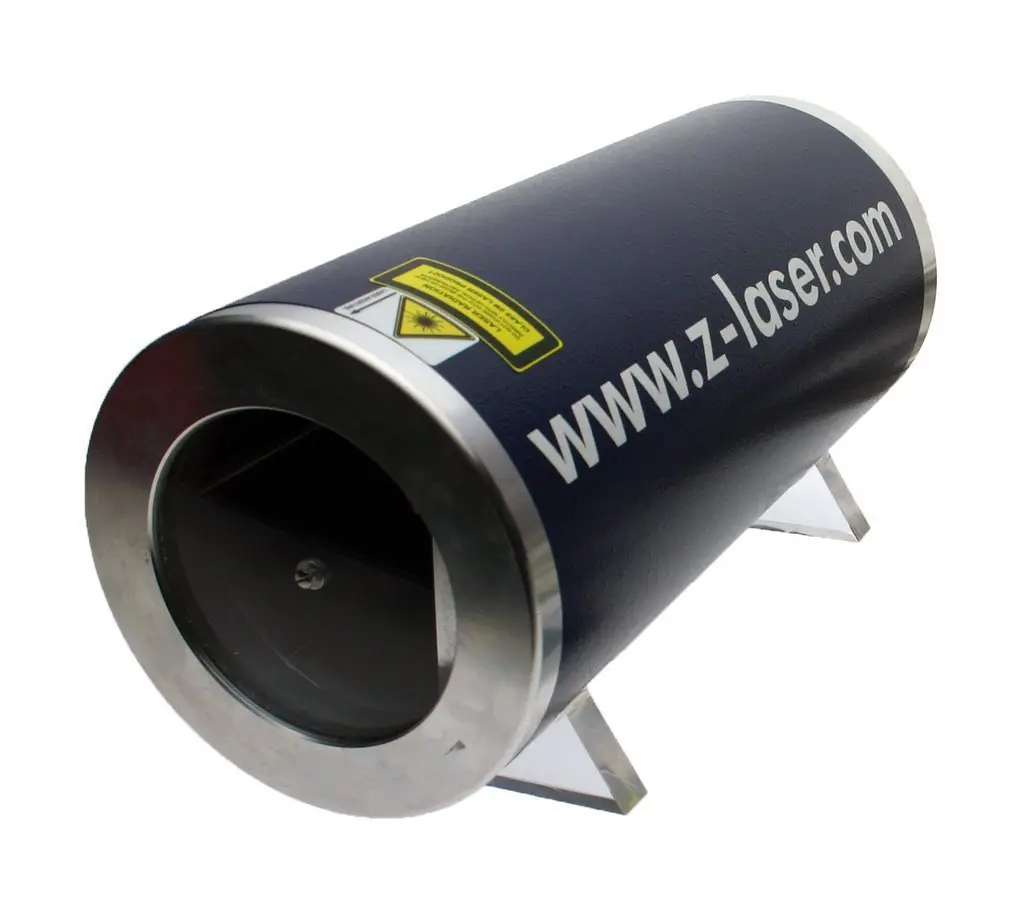

Z-Laser ZKV Circle laser adjustable Diameter (requires 100-240VAC)
The circle projection of the ZKV laser facilitates many applications. Traditionally, this type of adjustable projection is used in the barrel and cable drum construction.
The fan angle can be adjusted between 15° and 70° via the enclosed joystick and leads to a circle diameter from 135 mm to 5,600 mm (depending on the mounting height; i.e. 270mm to 1,400mm at a fixed working distance of 1m). The eye-safe laser class 2M makes working without safety goggles easy. The positioning aid projects a red or green circle onto any work surface.
The circular laser makes the correct positioning of round objects much easier, and can adjust to templates with different diameters. The positioning laser proves to be the perfect solution for the construction of large cable drums or wooden drum bases. The projected circle clearly indicates the outer contour of the round workpiece, and individual wooden strips can be easily and accurately merged. This saves both material and time.
Features
- Circular projection
- Adjustable diameter
- No need of templates
- Thread holes for easy mounting over working area
Additional Information
| Weight | 6800 g |
|---|---|
| Dimensions | 150 × 345 mm |
| Wavelength |
515 nm, 635 nm |
| Projection |
Circle |
| Focus |
fixed focus |
| Diameter |
150 mm |
| Supply voltage |
100 – 240 VAC |
| Fan Angle |
15°, 70° |
| IP protection class |
IP 65 |
| Application |
Assembling, Mounting/set-up, Positioning, Production of cable drums or wine casks |
Download Brochure
