Description
Simple, flexible and cost-efficient – our new multi-line laser!

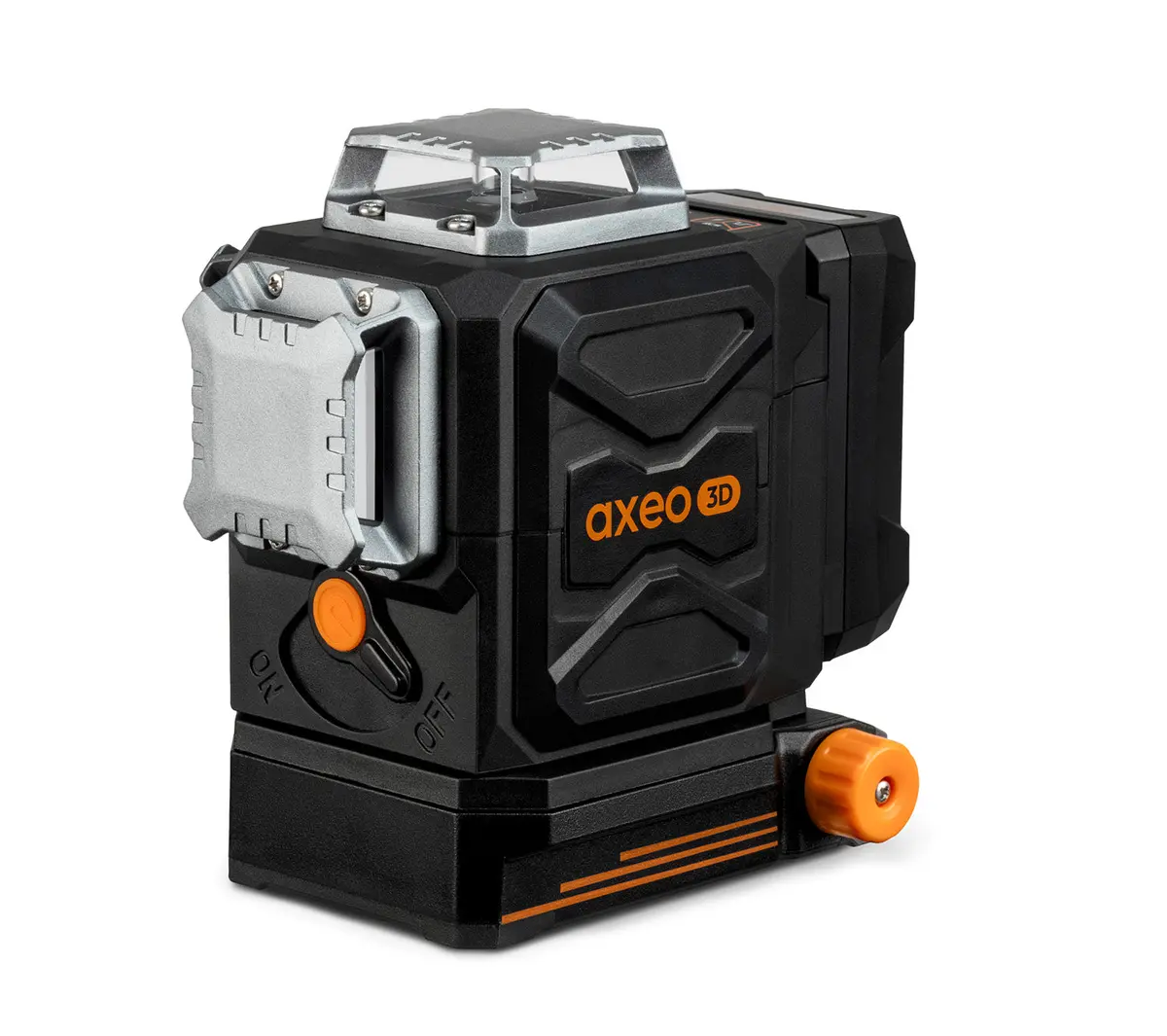

The new Axeo® 3D
Precision meets versatility!
- 3 × 360° laser lines – create 6 laser crosses
- Fine side adjustment for precise alignment of the vertical
- laser axis (intersection point of the laser cross remains
- exactly on the marked measuring point)
- Laser lines individually switchable
- Manual mode for slope applications
- Pulse mode for use with receiver (optional)
- Remote control
- Multifunctional mount, height-adjustable
- With attachable adapter for connection to ceiling rails
- Li-Ion battery or mains operation possible
- 5/8“ & 1/4“ thread on the bottom of the device
Technical Data
| Self-levelling range | ± 3° |
| Accuracy | ± 3 mm / 10 m |
| Laser diode / laser class | green / 2 |
| Working range* | 30 m / radius |
| Working range with receiver** | 60 m / radius |
| Dust and water protection | IP 54 |
| Temperature range | 0°C – +45°C |
| Operating time / power supply | 2000 mAh |
| 1 x 360° | 10 h / Li-Ion |
| 2 x 360° | 8 h / Li-Ion |
| 3 x 360° | 6 h / Li-Ion |
Scope of Delivery
- Multifunctional bracket
- Wall rail adapter
- Li-Ion battery
- USB-C cable
- Remote control
- Carrying case
