Description

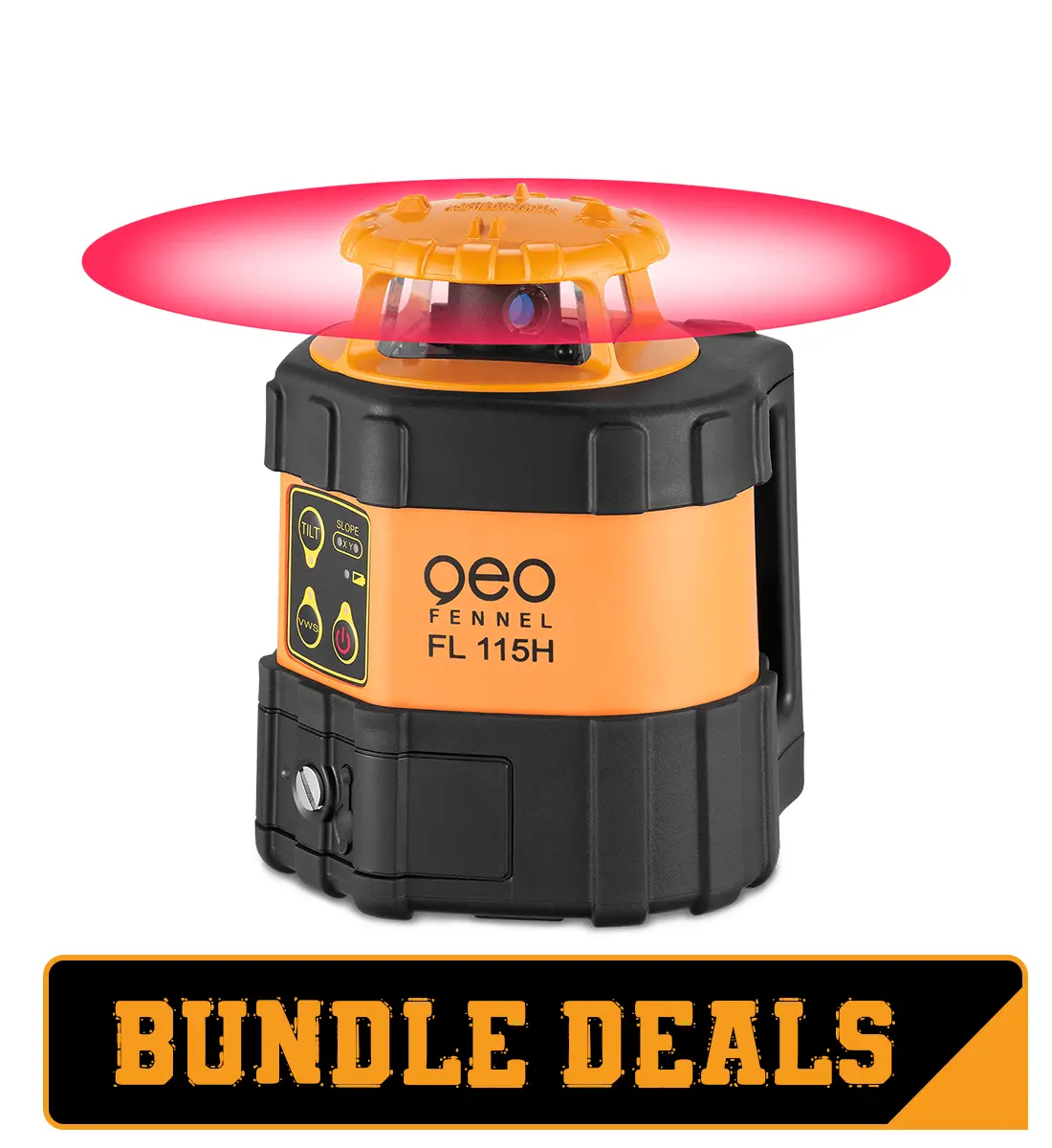

geo-FENNEL FL 115H Horizontal Rotating Laser Level Kit

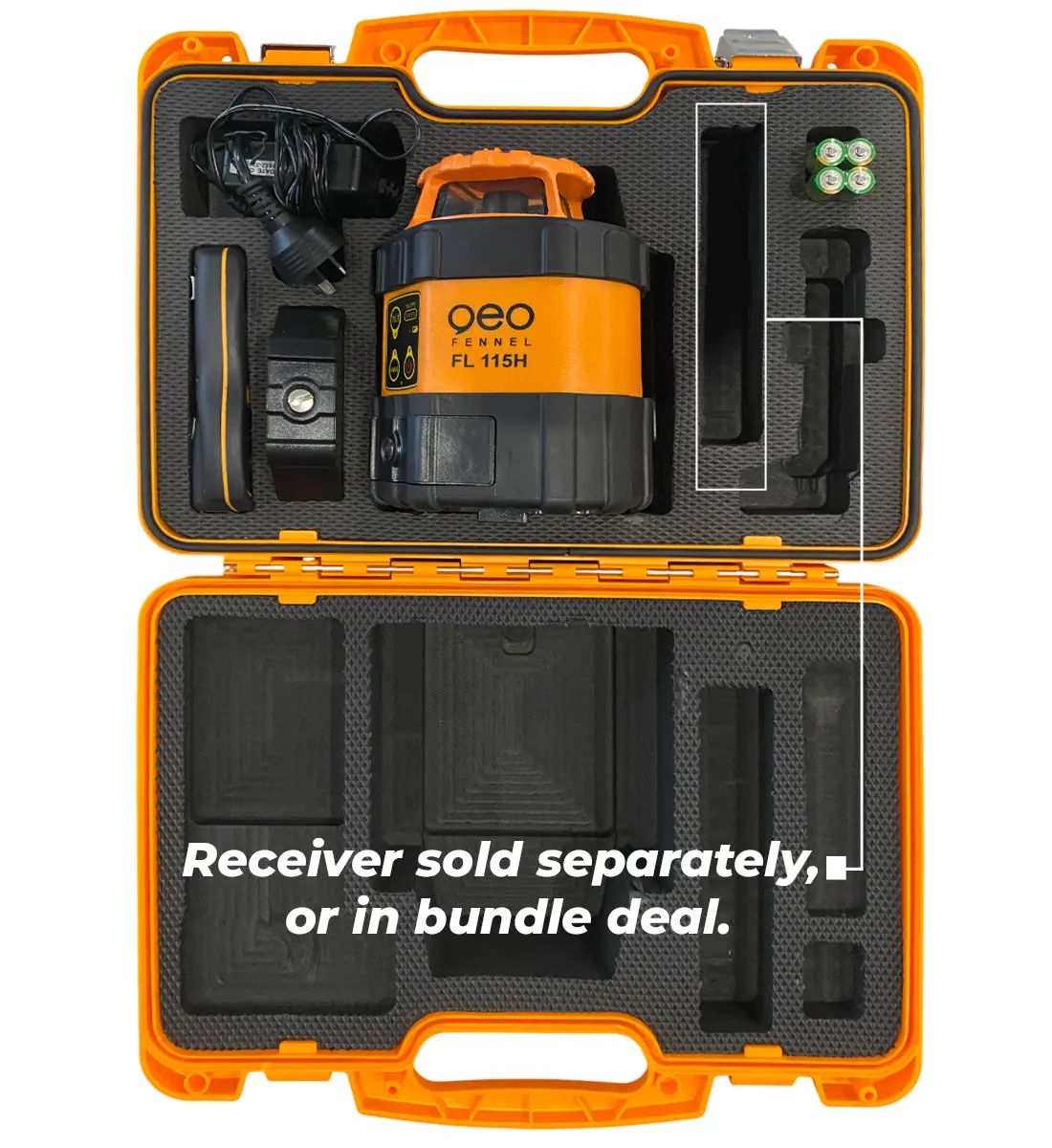

Kit Includes

• Rechargeable Li-Ion battery and charger
• Remote for controlling laser power, output*, and grade (X & Y)
• Replaceable battery compartment for alkaline batteries
• Protective hard plastic case with custom foam inserts
• AA batteries for remote & receiver (if receiver purchased)

*Output refers to the ability to control if the laser projects in each direction, not the strength of the laser. For example, you may choose which of the 4 directions the laser projects, but laser brightness is consistent for all directions it is projecting

Receiver add-ons available at a large discount. All receivers include a clamp for attachment to levelling staff.

Receiver Options:

• Onyx Omni 60 Universal MM Receiver

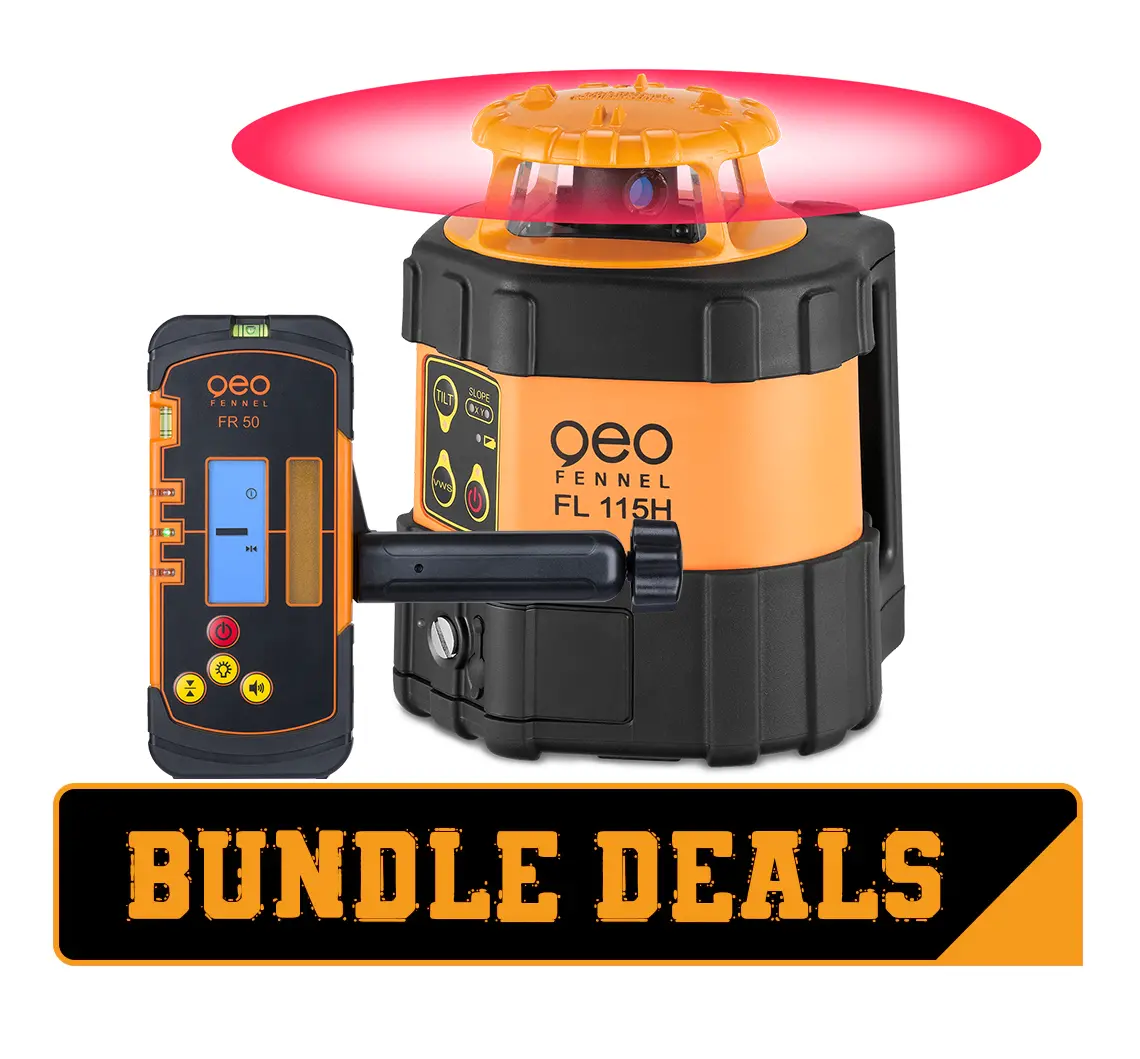

• FR 50 Laser Receiver

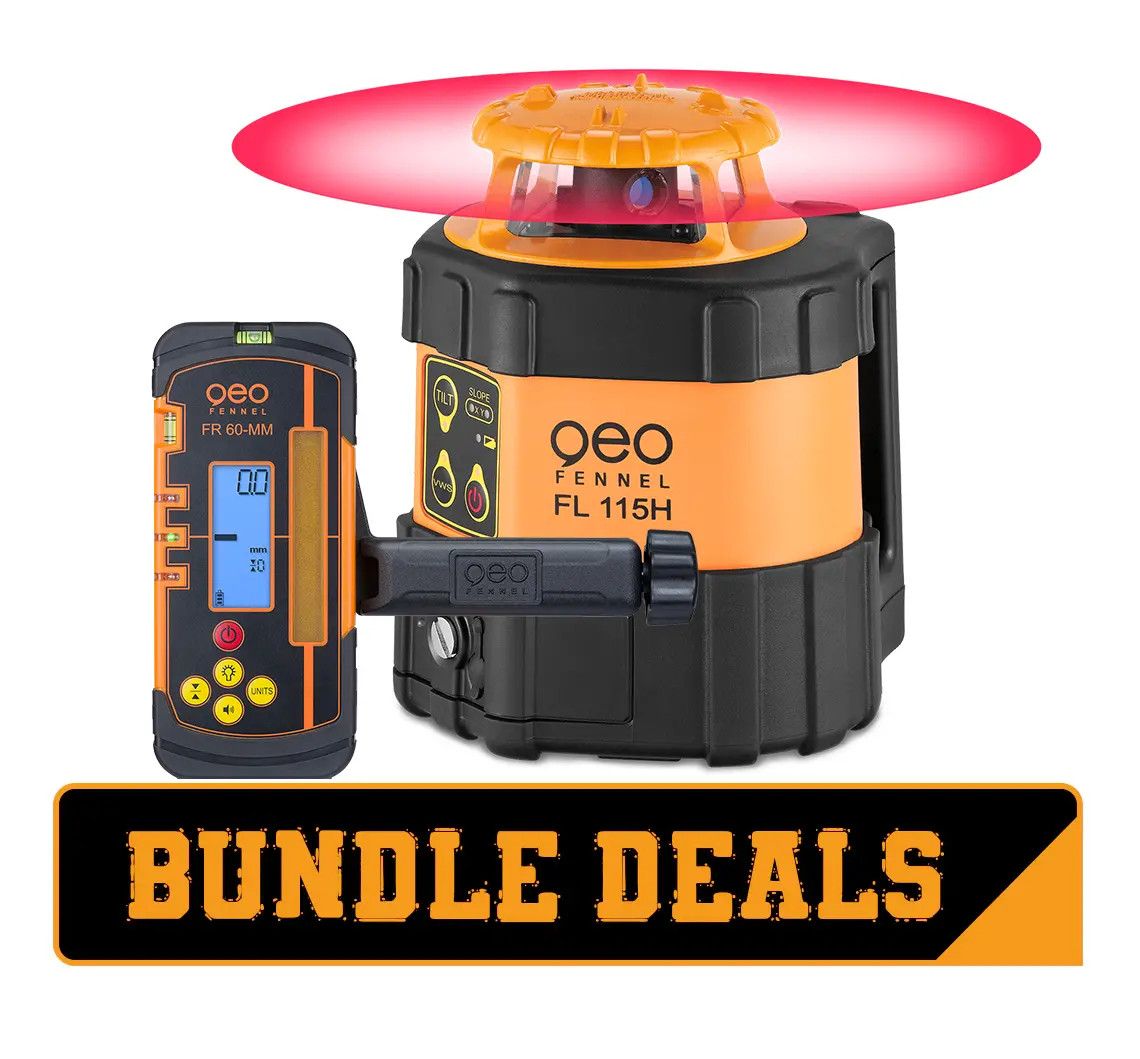

• FR 60-MM Receiver

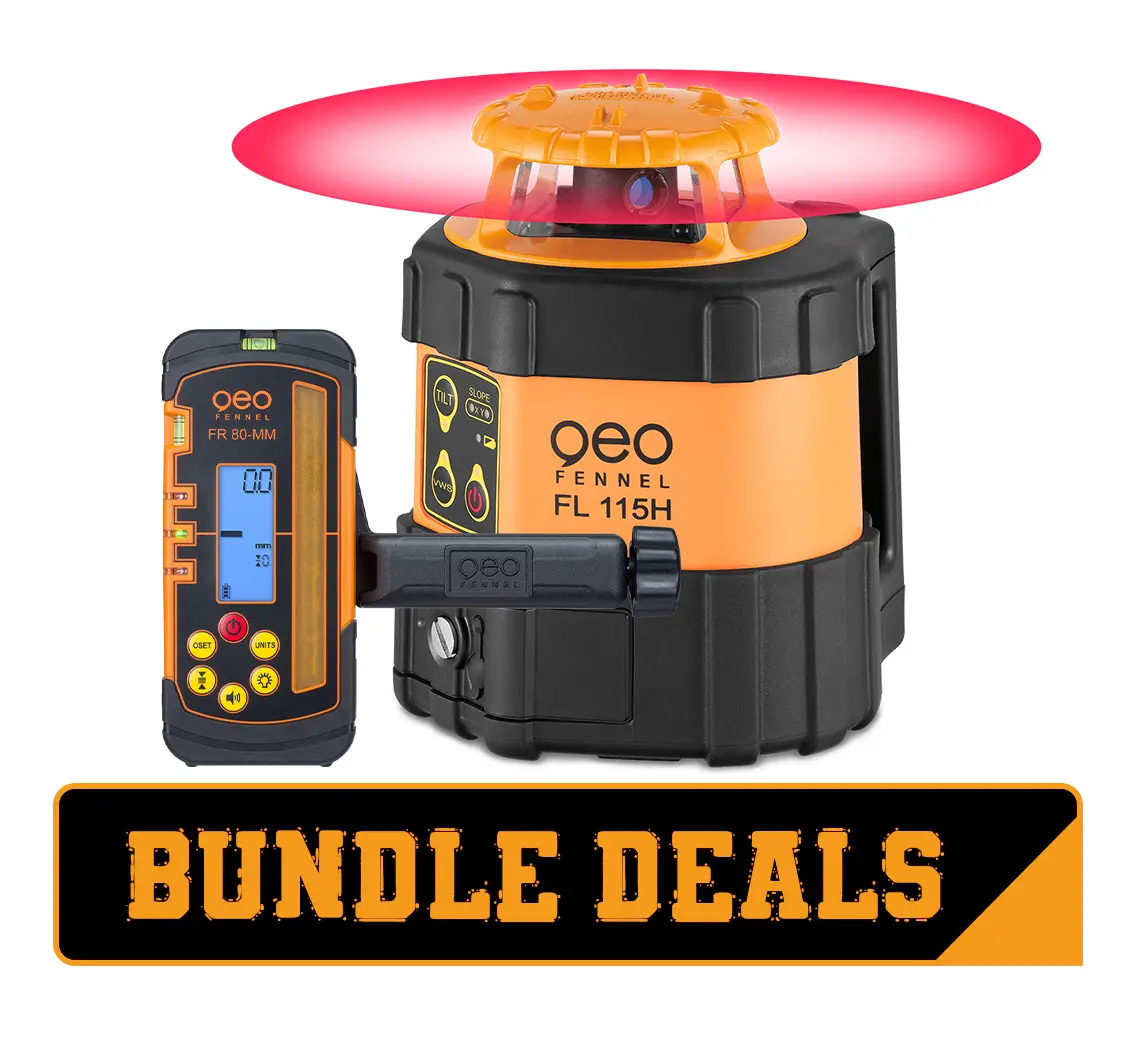

• FR 80-MM Receiver

Product Overview

The latest generation premium laser for horizontal applications

• New innovative low friction drive mechanism and self-levelling module
• Accurate, robust and temperature stable
• Low friction drive for reduced noise generation

Performance

• Extra long working range
• Rotating speed 800 rpm for optimal usage with machine control receivers
• Increased accuracy of ± 0,5 mm / 10 m
• Robust remote control with 100 m range

Features

Premium self-levelling horizontal rotating laser

• Easy and intuitive to use
• Robust rubberised housing with metal cover
• Working range 1200 m diameter
• Dust / water protection IP 66
• High accuracy of ± 0,5 mm / 10 m
• Automatic TILT alarm function
• VWS function (Vibration-Wind-Security)
• Auto-shut-off when out of level
• Electronic beam screen
• Manual slope setting of X and Y axis
• Li-Ion battery technology

Specifications

Laser diode:	red
Self-levelling:	horizontal
Visible laser beam:	red
Self-levelling range:	± 5°
Accuracy horizontal:	0,5 mm / 10 m
Working range without receiver:	Ø 60 m
Working area with FR 45:	Ø 1200 m
Working area with FR 77-MM:	Ø 900 m
Working range remote control:	IR 100 m
Grade:	manual
Slope setting manual X-Axis:	± 5° (± 9%)
Slope setting manual Y-Axis:	± 5° (± 9%)
Laser class:	2
Rotating speed rpm:	800
Operating time:	26 h
Dust / water protection:	IP 66
Masking (beam screen):	yes
Temperature range:	-20° to +50°C
TILT-function:	yes
VWS function:	yes

Download

• Brochure
