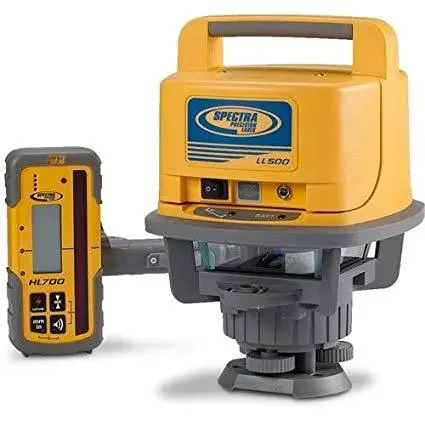

Spectra Precision LL500 Rotating Laser Level with HL 700 Receiver
Product overview
The Spectra Precision® LL500 Laser Level is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 Laser Level features a 1,600 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site. The rugged LL500 is self-leveling with built-in ” out-of-level” shutoff that maintains accuracy over the entire work area and minimizes errors. Visible “spotting” beam determines receiver mounting placement makes it faster to find the on-grade position
Features
- High accuracy with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes
- Alkaline or rechargeable batteries keep the unit working and minimize downtime due to power loss
- Self-leveling with built-in shut off for increased accuracy over the entire work area and reduced errors
- Comes with choice of HL700 or CR600 receivers so you can choose the best option to suit your application
Applications
- Checking elevations
- Setting Concrete forms (small and large jobs)
- Checking foundations
- Digging footing
Includes:
- LL500
- HR700 receiver with C70 rod clamp
- Alkaline batteries
- 1046-4750 Carry Case
- Manuals
Specifications
| Self-Leveling Range | – ± 11 arc minutes Compensation |
| Type | Wire Hung |
| Air Damped Accuracy | 1.5 mm at 30 m (1/16 in at 100 ft) ±10 arc seconds |
| Temperature Compensation | Yes |
| Laser Type | 670 nm visible |
| Class II Machine Control Compatible | Yes |
| Battery Life 20°C (68°F) – 4 D-Cell Alkaline | 175 hrs NiMH – 100 hrs, NiCad – 75 hrs |
| Operating Diameter | 500 m (1,600 ft) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Weight | 3.6 kg (8 lbs) |
| Tripod Mount | 5/8 in x 11 |
| Warranty | 5 Years |
