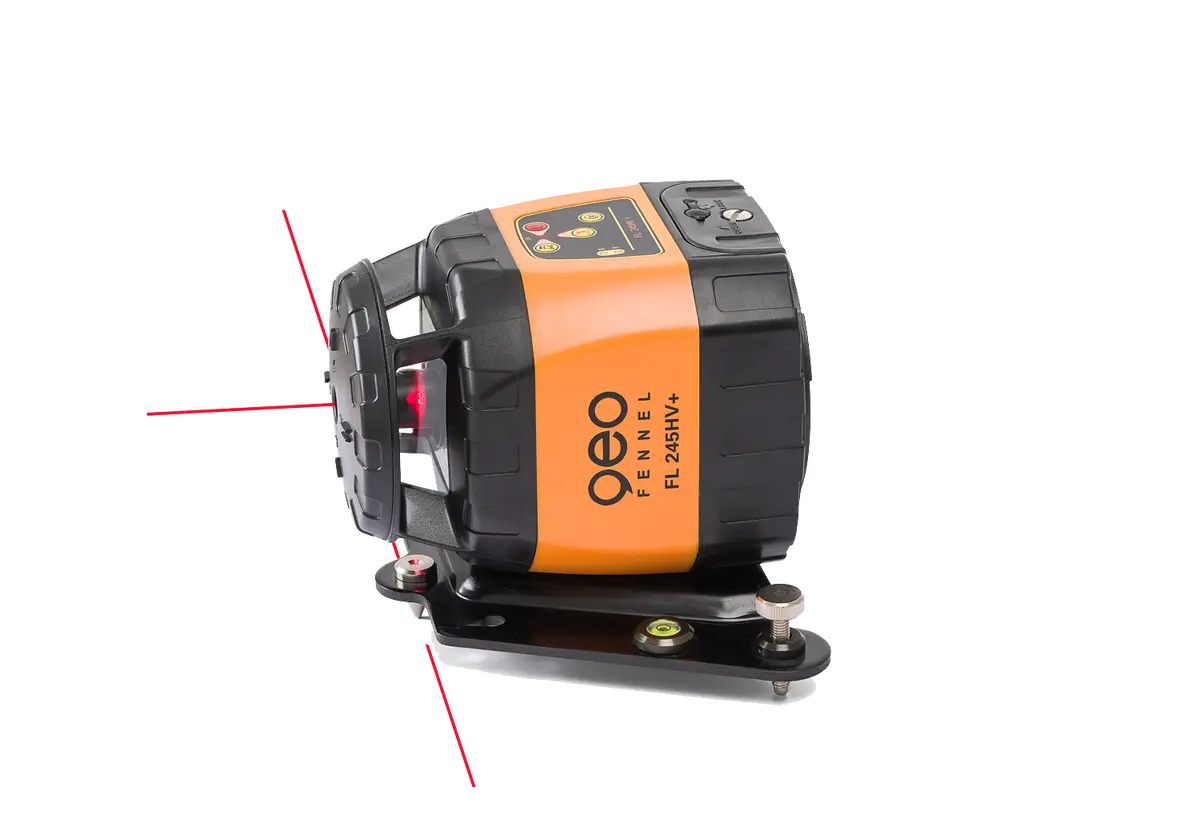

geo-FENNEL FL 245HV+ & FR-DIST 30 Rotating Laser Level with Receiver
The latest development in our 245 Series
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
- Long distance working range outdoors and outstanding line visibility for indoor applications
- IP 65 Class protection for all-weather conditions
- Now includes a fl oor mount for easy axis alignment in vertical/laydown mode
User-friendly operating concept
- For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
- All additional functions including scanning and slope setting are accessed from the remote control
Highlights
- Indoor use: Outstanding line visibility without using a receiver.
- Versatile with rotating, scanning and point functions
- Outdoor use: IP 65 protection, long working range, TILT-Function,
- Numerous accessories supplied as standard – check them out
Features
- Working range up to 1200m diameter (depending on receiver)
- Dust / water protection IP 65
- Variable scanning and laser point mode
- Permanent 90° plumb beam
- Automatic TILT alarm function
- Auto-shut-off when out of level
- Manual slope setting of X and Y axis
- Remote control function (on/off)
Properties: “FL 245HV +”
| Laser diode: | red |
| Self-levelling: | horizontal / vertical |
| Visible laser beam: | red |
| Self-levelling range: | ± 5° |
| Accuracy horizontal: | 0,75 mm / 10 m |
| Accuracy vertical: | 1,0 mm / 10 m |
| Working range without receiver: | Ø 60 m |
| Working area with FR 45: | Ø 1200 m |
| Working area with FR 77-MM: | keine Angabe |
| Working range remote control: | IR 100 m |
| Grade: | manual |
| Slope setting manual X-Axis: | ± 5° (± 9%) |
| Slope setting manual Y-Axis: | ± 5° (± 9%) |
| Laser class: | 2 |
| Rotating speed rpm: | 300, 800 |
| Operating time: | 26 h |
| Power supply: | NiMH |
| Dust / water protection: | IP 65 |
| Axis direction vertical: | yes |
| Scanning w/o receiver : | 60 m (radius) |
| 90° plumb beam up: | yes |
| Temperature range: | -20° to +50°C |
| Laser point mode: | yes |
| TILT-function: | yes |
| Remote control function (on/off): | yes |
| Scanning: | 2 step |
Product information “FR-DIST 30”
Innovation: AUTO-DIST function measures the distance between laser plane (“0” level of receiver) and floor, wall, object automatically
Applications
- Makes the levelling staff unnecessary for height control works with a rotating laser
- Quick and contact-free height control
- Easy checking of ditch depth when working with an excavator
- Direct reading of height differences during grading work
- Fast and safe interior alignment when working at fixed distances – eliminates the need for a 2nd person holding the end of a measuring tape
Features
- Can be used with either red or green beam rotating lasers
- mm-indication of difference between laserplane and “0” level
- Extensive laser distance meter functions
Measuring functions (LASER DISTANCE METER)
- Single / permanent measurement
- Area / volume
- Pythagoras 1, height (2 points)
- Pythagoras 2, overall height (3 points)
Properties: “FR-DIST 30”
| Laser class: | 2 |
| Measuring range: | 50 m |
| Length receiving window: | 100 mm |
| Accuracy: | ± 1 / 5 / 9 mm (laser receiver), ± 2 mm (laser range finder) |
| Measuring units: | m / ft / inch |
| Tones: | yes |
| Point of reference: | Bottom, on-Level, top |
| Dust / water protection: | IP 65 |
| Weight: | 0,3 kg |
| Power supply: | 3 x AA Alkaline |
| Temperature range: | 0°C to +40°C (Laser range finder), -10°C – +50°C (Laser receiver) |
| Extended size: | 172 x 80 x 32 mm |
| Working range: | 300 m (radius) |
| Display indication: | front |
| Display illumination: | yes |
| LED indication: | front, side |
| Magnets: | top, side |
| Vials: | top, side |
