Description
geo-FENNEL FR 50 Receiver for Rotating Lasers
Product information “FR 50”
Basic receiver
The FR 50 impresses with a reception window with a length of 50 mm and a large, easy-to-read and illuminated display and LED display on the front and rear, with backlighting that can be switched on/off for optimum readability under all conditions.
Features
- For rotating lasers with red or green laser beam
- Segments of display indication increase / decrease proportionally
- Large LCD’s at front and back, with backlight that can be switched on/off for optimal reading in all conditions.
- Shut-off tone
- Automatic shut-off
- Built-in vials
Properties: “FR 50”
| Suitable for laser diode: | red |
| Accuracy: | ± 1 / 2.5 / 5 mm |
| Tone can be switched off: | yes |
| Tones: | 2 |
| Dust / water protection: | IP 67 |
| Weight: | 0,35 kg |
| Power supply: | 2 x AA Alkaline |
| Automatic shut-off: | yes |
| Display illumination: | yes |
Downloads
- Technical Data Sheet
- Manual

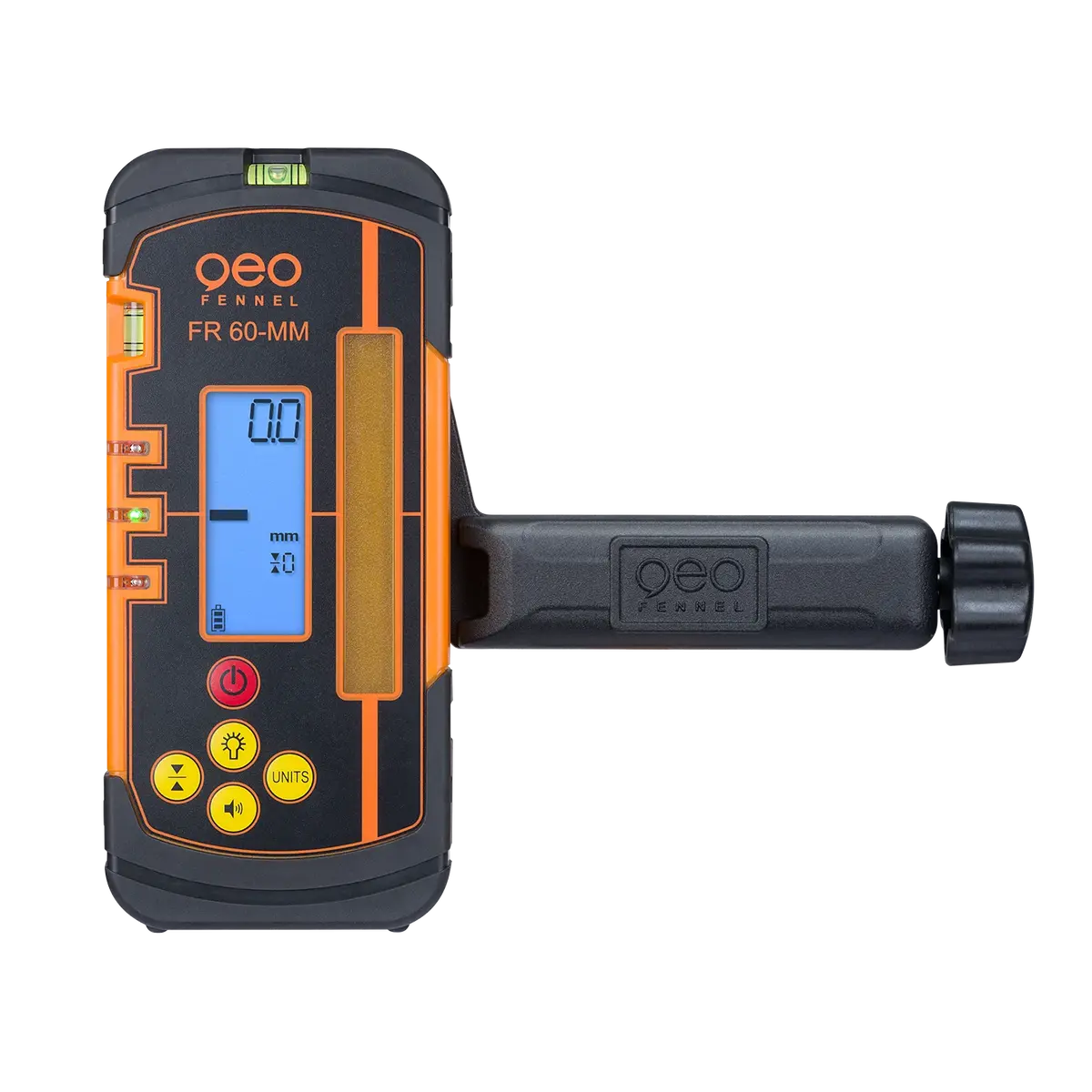

geo-FENNEL FR 60-MM Receiver for Rotating Lasers
Product information “FR 60-MM”
The new standard – with mm-indication
The geo-FENNEL FR 60 laser receiver features a digital laser height display in mm, a reception window with a length of 60 mm and is ideal for rotating lasers with a red or green laser beam. Like the FR 50, the FR 60-MM has a robust housing with dust and water protection to IP 67 and a large, easy-to-read and illuminated display for optimum readability under all conditions. The laser receiver is distinguished by an extremely robust metal retaining clip for the leveling staff, an all-metal design with clamping jaws and is therefore especially designed for use on round and angular rods.
Features
- For rotating lasers with red or green laser beam
- Segments of display indication increase / decrease proportionally
- Large LCD’s at front and back, with backlight that can be switched on/off for optimal reading in all conditions.
- Shut-off tone
- Automatic shut-off
- Built-in vials
Properties: “FR 60-MM”
| Suitable for laser diode: | red |
| Accuracy: | ± 1 / 2.5 / 5 mm |
| Tone can be switched off: | yes |
| Tones: | 2 |
| Dust / water protection: | IP 67 |
| Weight: | 0,35 kg |
| Power supply: | 2 x AA Alkaline |
| Automatic shut-off: | yes |
| Display illumination: | yes |
Downloads
- Technical Data Sheet
- Manual

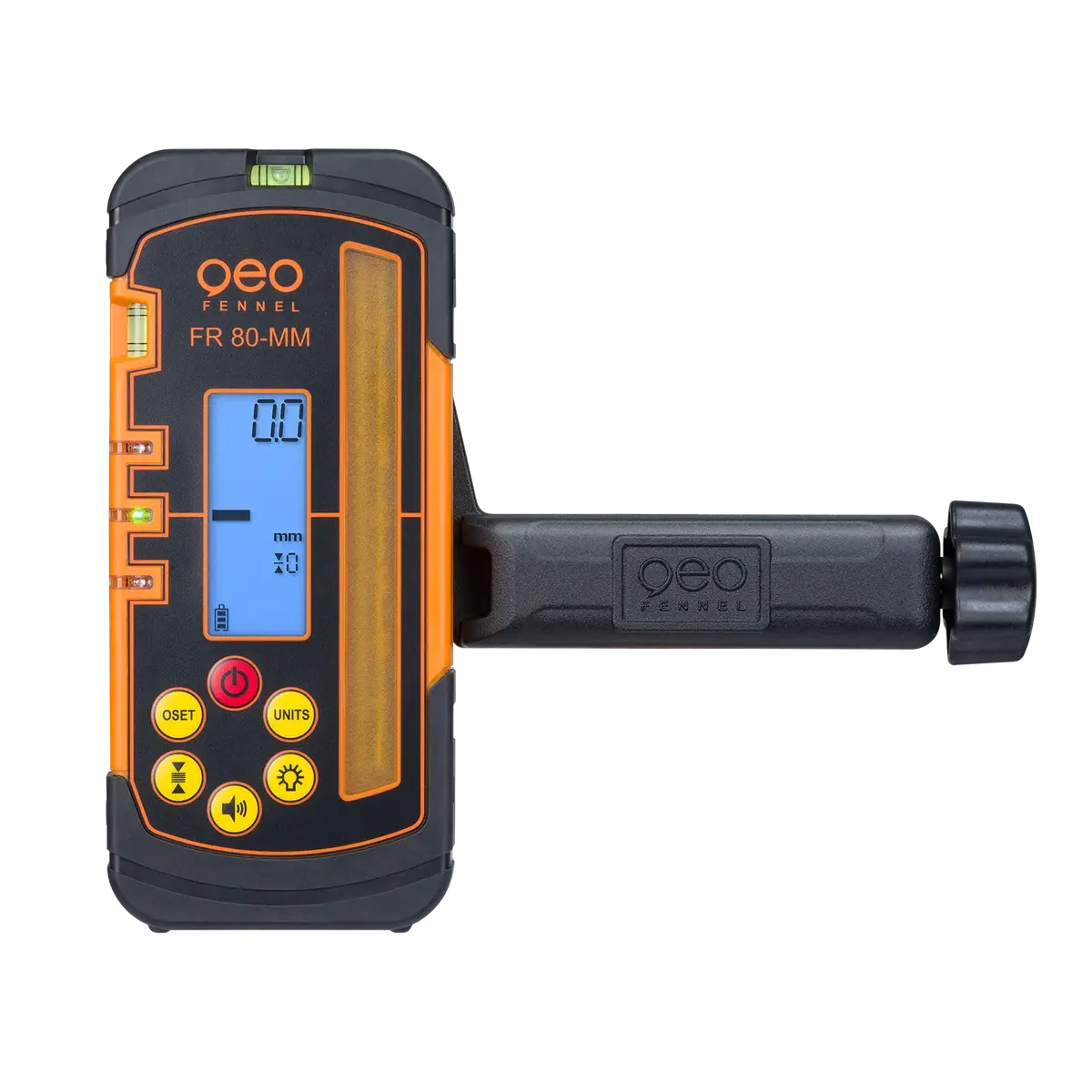

geo-FENNEL FR 80-MM Tracking Receiver for Rotating Lasers
Product information “FR 80-MM TRACKING”
For use with TRACKING Rotating Lasers FLG 245HV GREEN TRACKING, FL 275HV TRACKING, FL 510HV-G TRACKING
The geo-FENNEL FR 80-MM TRACKING has an extra-long reception field of 120mm, a very robust housing, an easy-to-read display and a sturdy metal bracket for the leveling staff. The FR 80-MM also impresses with its specially developed monitoring function for geo-FENNEL TRACKING rotating lasers, such as the FLG 245HV GREEN, TRACKING, FL275HV TRACKING and the FL 510HV-GTRACKING. Once the tracking process is complete, the tracked axis is continuously monitored by a permanent radio link between the laser and receiver.
Features
- For rotating lasers with red or green laser beam
- Segments of display indication increase / decrease proportionally
- With monitoring function at use of geo-FENNEL TRACKING Rotating lasers: After completion of tracking procedure the tracked axis will be monitored continuously by a permanent radio communication between laser and receiver.
- Large LCD’s at front and back, with backlight that can be switched on/off for optimal reading in all conditions.
- Shut-off tone
- Automatic shut-off
- Built-in vials
Properties: “FR 80-MM TRACKING”
| Suitable for laser diode: | red |
| Accuracy: | ± 0.5 / 1 / 2 / 5 / 10 mm |
| Tone can be switched off: | yes |
| Tones: | 2 + geräuschlos |
| Dust / water protection: | IP 67 |
| Weight: | 0,35 kg |
| Power supply: | 2 x AA Alkaline |
| Automatic shut-off: | yes |
| Display illumination: | yes |
Downlaods
- Technical Data Sheet
- Manual
