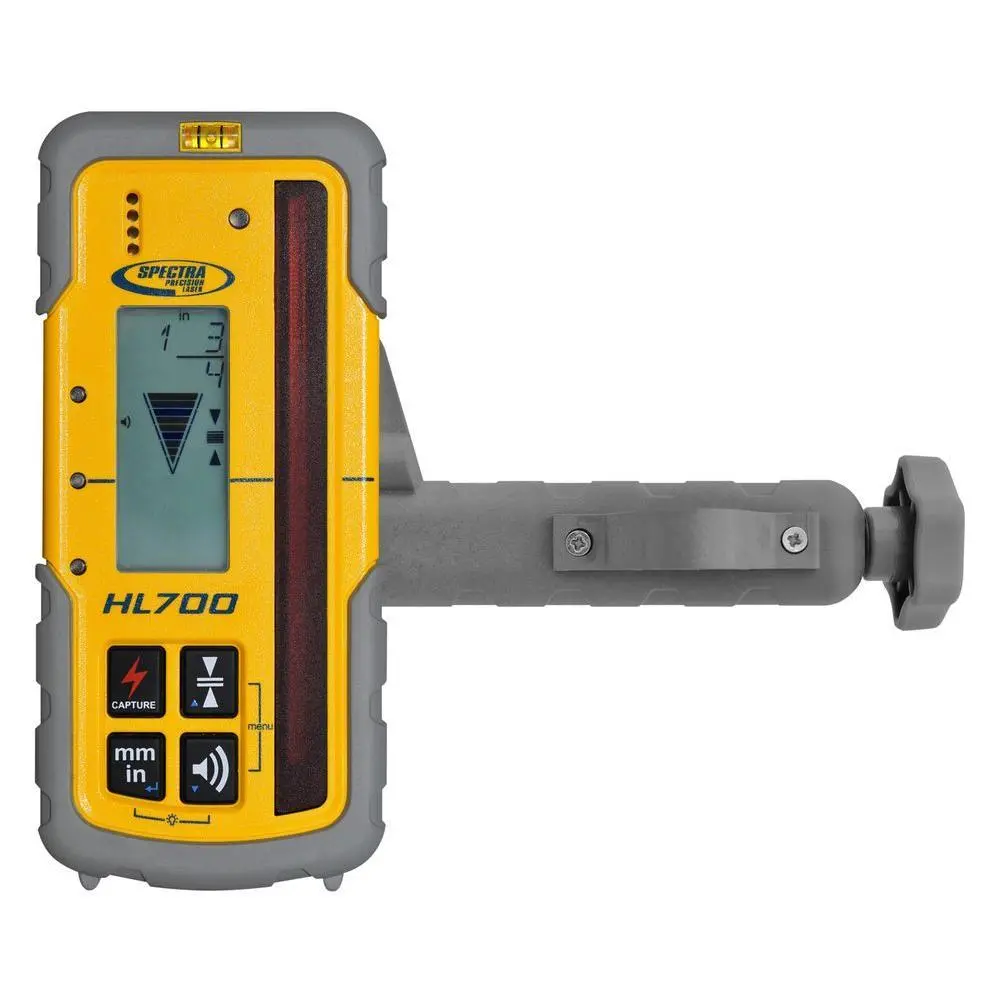

Spectra Precision HL700 Laser Receiver

Product overview

Highly versatile laser receiver for basic and advanced leveling and aligning applications

The Spectra Precision® HL700 Laserometer, a highly versatile laser receiver for basic and advanced leveling and aligning applications, is designed for general, concrete and site preparation contractors. The HL700 Laser Receiver is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.

The HL700 Laser Receiver features a digital readout of elevation that provides a numeric display of +/- 5 cm (+/- 2 inches). The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application – mm, cm, ft, in or fractional inches.

A 12.7 cm (5 inch) reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.

The Laserometer is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 3 meters (10 feet) onto concrete. The HL700 offers a 3-year “No Excuses” warranty.

The HL700 can be used as either a hand-held or rod mounted receiver for a wide range of applications.

Features

• Digital readout of elevation – not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get “on-grade” to make measurements Large 12.7 cm (5 inches) reception height acquires the beam quickly and makes it easy to stay in the beam
• Anti-strobe sensor stops construction strobe lights from setting off the receiver and makes it easier to identify true laser beam signals Simultaneous elevation LED’s signal in low light levels and over a longer range for easier reading in poor light conditions
• New CAPTURE function remotely captures and retains a measurement when the display is difficult to see Multiple dead band setting allows adaptation to meet all your job site requirements
• Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime
• Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications

Specifications

Working Radius	1 m – 460 m (3 ft – 1500 ft)
Laser Detection Height	127.0 mm (5“)
Numeric Readout Height	102.0 mm (4“)
Accuracy (Dead band)	Ultra Fine 0.5 mm 0.02 in 1/32 in Super Fine 1.0 mm 0.05 in 1/16 in Fine 2.0 mm 0.10 in 1/8 in Medium 5.0 mm 0.20 in 1/4 in Coarse 10.0 mm 0.50 in 1/2 in Calibration 0.1 mm 0.01 in 1/64 in
Reception Angle	± 45° minimum
Detectable Spectrum	610 nm … 780 nm
Beeper Volumes	Loud = 110 dBA Medium = 95 dBA Low = 65 dBA
LED Grade Indicators	Front, Green on-grade Red Hi, Blue Low
Power Supply	2 x 1.5 Volt “AA” batteries
Battery Life	60+ hours
Automatic Shut Off	Selectable, 30 min, 24 h, Off
Environmental	Waterproof, Dustproof to IP67
Weight without clamp	371 g (13.1 oz.)
Dimensions without clamp	168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”)
Operating Temperature	-20°C…+60°C (-4°F… +140°F)
Storage Temperature	-40°C…+70°C (-40°F…+158°F)
