Description

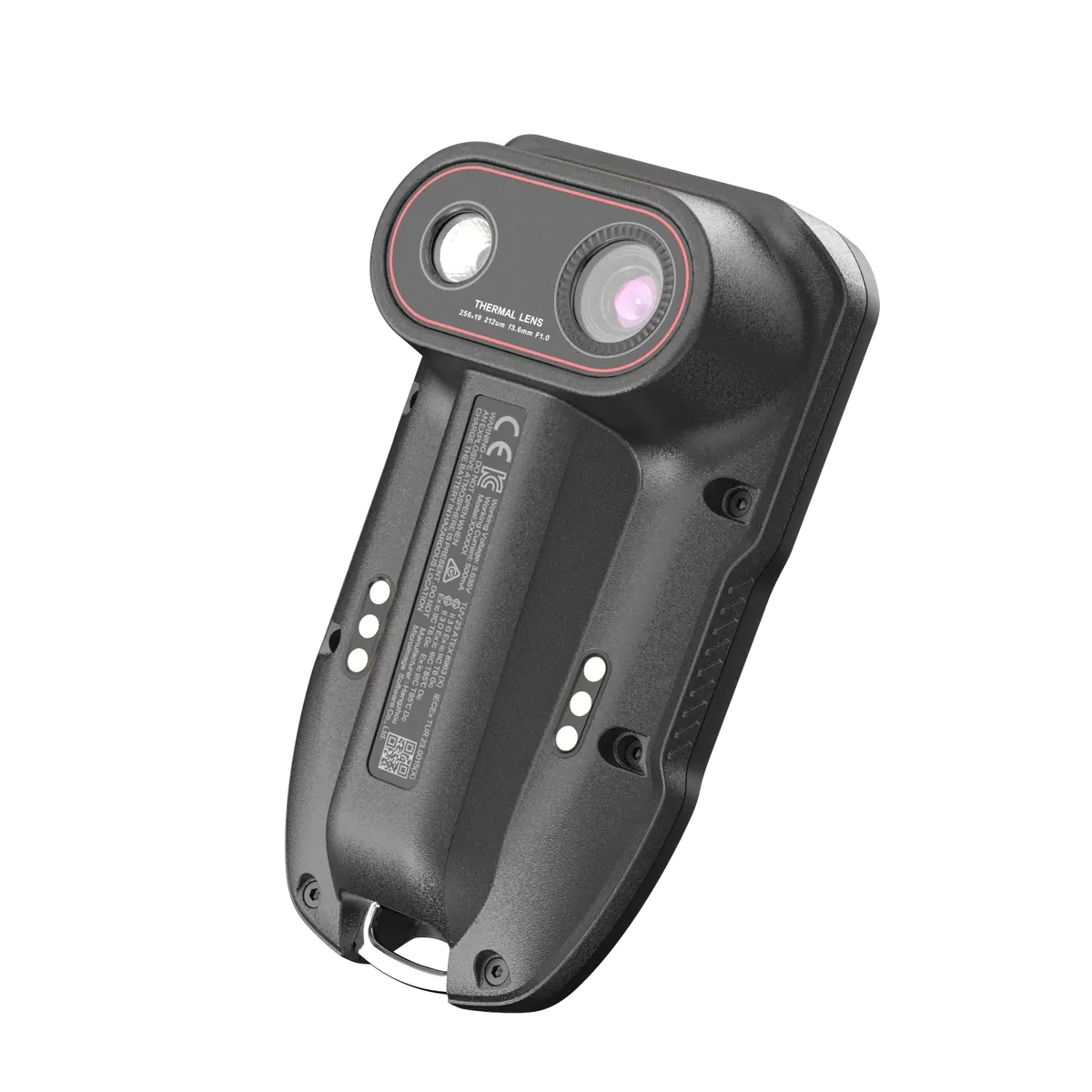

Born for Fire. Built for More. The HIKMICRO FP Series features high-performance pocket thermal imagers designed for ultimate portability. Featuring an 3.2”LCD Screen, they empower you to visualize temperature variations and see through darkness and smoke, aiding in problem identification, safety assurance, and efficient operations across diverse scenarios. With SuperIR technology, the FP Series delivers clear thermal detail. Its broad temperature measurement range and robust IP67 rating guarantee reliable performance in demanding industrial, maintenance, inspection, and outdoor environments.
Pocket-Sized & Rugged
- A compact, mission-ready form factor housed in ultra-impact-resistant PPSU polymer.
True IP67 Protection
- Completely sealed against dust and capable of withstanding submersion in water.
Extreme Heat Endurance
- Operates and survives direct exposure to temperatures up to 260°C.
| Model No | FP21 | ||||||||||||
| IR Resolution | 256 × 192 (49,152 pixels) | ||||||||||||
| NETD | < 30 mK (@ 25 °C, F#=1.0) | ||||||||||||
| Image Frequency | 25 Hz | ||||||||||||
| Detector Pitch | 12 μm | ||||||||||||
| Focal Length | 3.6 mm | ||||||||||||
| F-number | F1.0 | ||||||||||||
| Field of View (FOV) | 37.2° × 50.0° | ||||||||||||
| Spatial Resolution (IFOV) | 3.33 mrad | ||||||||||||
| Min. Focus Distance | 0.3 m (0.98 ft) | ||||||||||||
| SuperIR | Yes, on captured images and live view | ||||||||||||
| Display | 640 × 480 Resolution, 3.2”LCD Screen | ||||||||||||
| Visual Camera | NA | ||||||||||||
| Digital Zoom | 1x, 2x, 4x | ||||||||||||
| Color Palettes | Basic, Smooth, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building | ||||||||||||
| Image Modes | Thermal | ||||||||||||
| Object Temperature Range | “Range -20°C to 150°C / Range 0℃ to 550℃” | ||||||||||||
| Storage Media | Built-in 4 GB flash memory | ||||||||||||
| LED Light | Yes | ||||||||||||
| Battery Operating Time | Approx. 6 hours | ||||||||||||
| Working Temperature Range | -10℃ to 55℃（default settings）/ 85°C, 30min / 150°C, 10min / 260°C, 5min | ||||||||||||
| Weight | Approx. 398 g (0.88 lb) | ||||||||||||
Includes
- Charing Base (x1)
- Imager Quick Start Guide(x1) In-line Fuse (x1)
- Charging Base Quick Start Guide (x1)
- Car Cigarette Lighter (x1)
- USB Cable (x1)
- M5x16 Screws (x3)
- Metal Bracket (x1)
- Neck Strap (x1)
- Retractable Lanyard (x1) Patch Cable (x1)
- M2.5×6 Screws (x2)
