Description

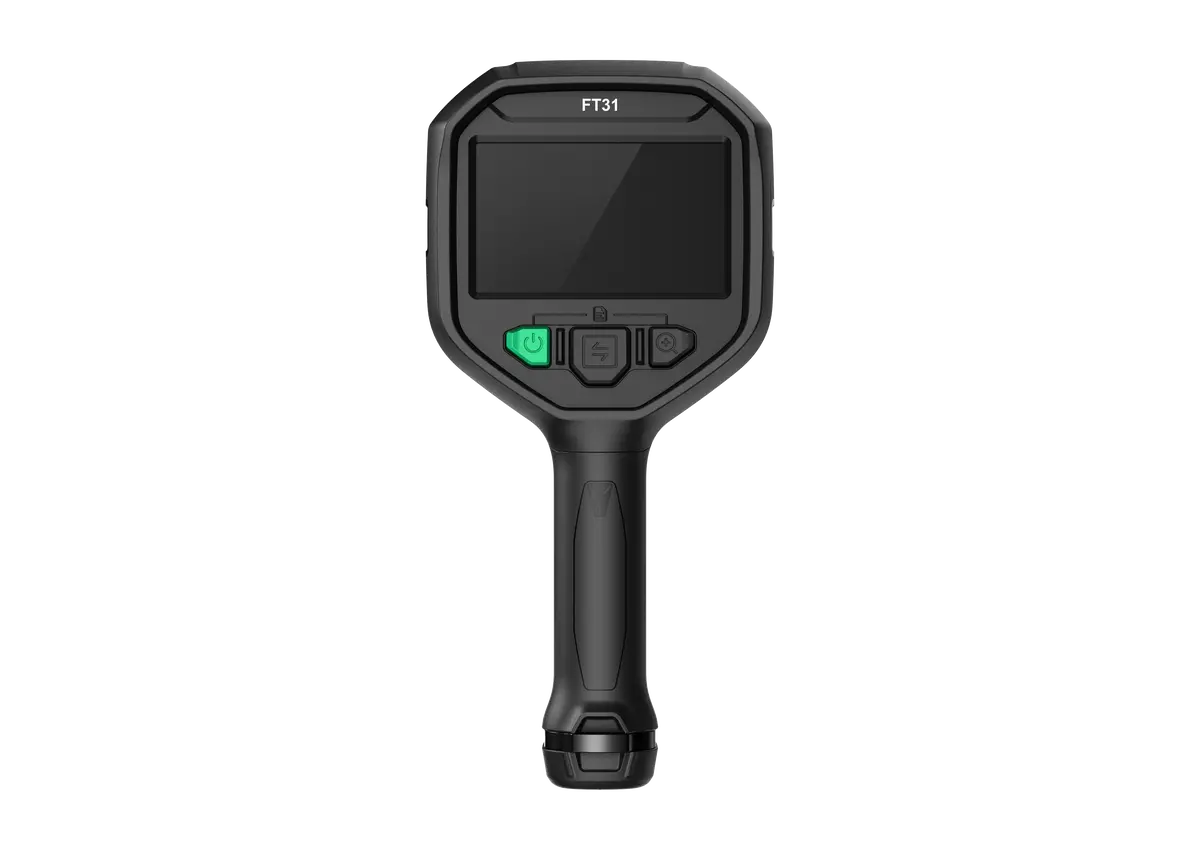

The HIKMICRO FT31 is a high-performance firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe. Features like object details enhancement, easy-to-navigate buttons and a working temperature range of up to 260°C(500°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from satisfy most application scenarios.
Key Features
- Thermal resolution: 384 x 288 (110,592 pixels)
- NETD : ＜30 mK (@ 25°C, F#=1.0)
- Start up time: 5 second (with IR image), 10 second (with OSD)
- Support object details enhancement
- Temperature measurement range : -20°C to 1200°C (-4°F to 2192°F)
- Measurement presets: Center spot, Hot spot, Cold spot
- 60 Hz image frequency
- 4.3″ LCD screen display
| Infrared Image | ||||
| Image Sensor | VOx Uncooled Focal Plane Arrays, Germanium protective lens cover | |||
| IR Resolution | 384 x 288 (110,592 pixels) | |||
| NETD | < 30 mK (@ 25°C, F#=1.0) | |||
| Image Frequency | 60 Hz | |||
| Detector Pitch | 17 μm | |||
| Spectral Range | 7.5 to 14 μm | |||
| Focal Length | 7 mm | |||
| F-number | F1.6 | |||
| Field of View (FOV) | 54.1°×40.2° | |||
| Spatial Resolution (IFOV) | 2.42 mrad | |||
| Min. Focus Distance | 1 m (3.28 ft) | |||
| Focus Mode | Focus Free | |||
| Image Display | ||||
| Display | 800 × 480 Resolution, 4.3″ LCD Screen | |||
| Digital Zoom | 1x, 2x, 4x | |||
| Color Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
|||
| Image Modes | Thermal | |||
| Measurement and Analysis | ||||
| Object Temperature Range | Range -20°C to 250°C (-4°F to 482°F) Range 200°C to 1200°C (392°F to 2192°F) |
|||
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F) |
|||
| Measurement Tools | Center Spot, Hot Spot, Cold Spot | |||
| Data Storage and Communication | ||||
| Storage Media | Built-in 128 GB flash memory | |||
| Image Storage Capacity | Approx. 281,600 Images | |||
| Video Storage Capacity | Approx. 15.6 hours | |||
| General | ||||
| USB Interface | USB Type-C | |||
| Battery Type | Interchangeable and rechargeable Li-ion battery | |||
| Battery Operating Time | Approx. 6 hours | |||
| Battery Charging Time | Approx. 3 hours fully charged | |||
| Protection Level | IP67, IEC 60529 | |||
| Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 | |||
| Safety | IEC 61010-1 | |||
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 | |||
| Vibration | 2g IEC 60068-2-6 | |||
| Shock | 25 g, IEC 60068-2-27 | |||
| Working Temperature Range | -20°C to 85°C (-4°F to 185°F) 150°C(302°F)，15min 260°C(500°F)，5min |
|||
| Relative Humidity | < 95% non-condensing | |||
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | |||
