Description

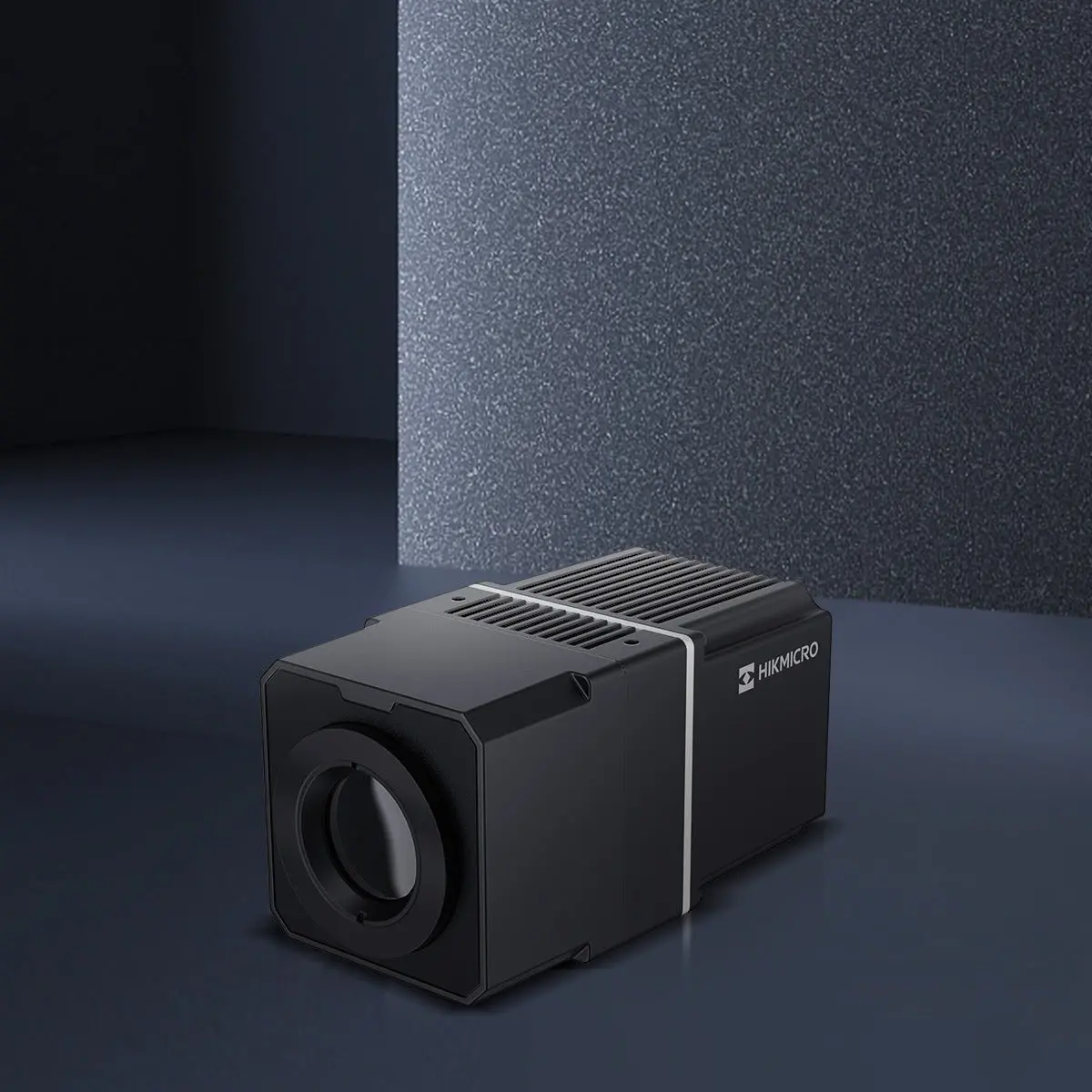

Thermographic Network Auto-Focus Box Camera
The Thermographic Network Auto-Focus Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
Features
- High sensitivity sensor with 384 x 288 resolution
- Object temperature range: -20°C to 150°C , 0 °C to 650 °C; Max (±2 °C, ±2%)
- Temperature measurement at user-defined points, lines, and areas
- Thermal image frame rate: 50 fps
- A highlighted cross at the max. temperature in the thermal image
- Support mirroring, digital zoom(2x,4x,8x)
- Supporting auto focus feature
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384 x 288 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1) |
| Focal Length | 15 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 1.13 mrad |
| Aperture | F 1.0 |
| Field of View | 14.8° × 11.1 (H × V) |
| Min. Focusing Distance |
0.5 m |
| Measurement and Analysis | |
| Object Temperature Range |
-20°C to 150°C, 0°C to 650 °C |
| Temperature Accuracy | Max. (± 2°C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 10 rules (max. 10 points, max.10 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 10. |
| Video and Image | |
| Main Stream | 50 fps (384 × 288) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | 2×, 4×, 8× |
| Radiometric Capture | Yes |
| Radiometric Infrared- Video Streaming (Compressed) |
Over RJ45, 384 x 256@50 fps |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP ,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | NAS (NFS, SMB/CIFS), |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View |
Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Communication Interface |
1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 4.8W Max |
| Working Temperature/Humidity | -20 °C to 50 °C 90% or less |
| Protection Level | IP40 |
| Dimensions | 93 mm × 50 mm × 50 mm ( 3.66″ x 1.97″ x 1.97″) |
| Mount | M3 |
| Material | Aluminum alloy |
| Weight | Approx. 344 g (0.76 lb.) |
Downloads
UD29777B_Box Camera_QSG_multilanguage_20220928.pdf UD29882B-A_Thermographic Automation Camera_UM_V5.5.28_en-US_20221129.pdf HM-TD2A37T-25_Q_Datasheet_en-US_20250818.pdf
