Description

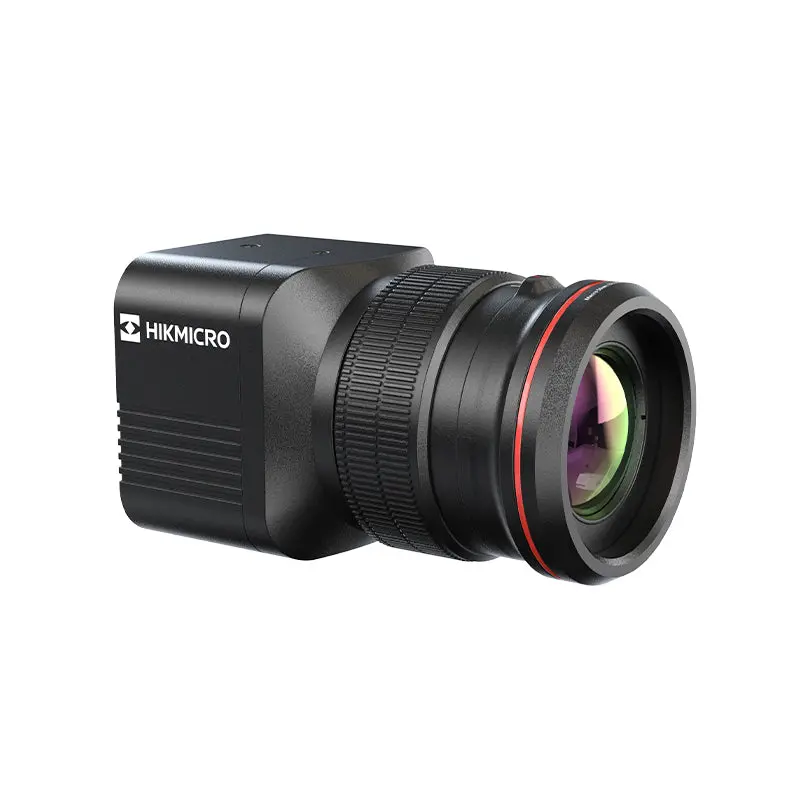

QD610 R&D Box Cameras with High Frame Rate
The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
Feature
- High sensitivity sensor with 640 x 512 resolution
- Object temperature range: -20°C to 150°C (-4°F to 302°F), 0 °C to 650 °C (32°F to 1202 °F); Max (±2 °C, ±2%)
- Temperature measurement at user-defined points, lines, and areas
- Thermal image frame rate: 384×288：100 fps，640×512：50 fps
- A highlighted cross at the max. temperature in the thermal image
- Color alarm (isotherm) available for Above, Between, and Below object temperatures
- Support mirroring, digital zoom(2x,4x,8x)
| Thermal Module | ||||||||||||||||
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays | |||||||||||||||
| Resolution | 640 × 512 | |||||||||||||||
| Pixel Pitch | 12 μm | |||||||||||||||
| Spectral Range | 8 μm to 14 μm | |||||||||||||||
| NETD | ≤ 30 mk(@25 °C,F#=1.0) | |||||||||||||||
| Focal Length | 5mm 10mm 18mm |
|||||||||||||||
| IFOV | 5mm : 2.40mrad 10mm: 1.20mrad 18mm: 0.67mrad |
|||||||||||||||
| Field of View | 5mm : 90.0°(H)×70.1°(V) 10mm: 45.2°(H)×36.1°(V) 18mm: 24.2°(H)×19.4°(V) |
|||||||||||||||
| Min. Focusing Distance | 5mm : 0.35 m 10mm: 1.30 m 18mm: 4.00 m |
|||||||||||||||
| Aperture | 5mm : F1.0 10mm: F1.0 18mm: F1.1 |
|||||||||||||||
| Measurement and Analysis | ||||||||||||||||
| Object Temperature Range | -20 °C to 150 °C , 0°C to 650 °C | |||||||||||||||
| Temperature Accuracy | Max (± 2 °C, ± 2%) | |||||||||||||||
| Measurement Presets | 3 temperature measurement rule types, 21 rules (max. 21 points, max. 21 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 21. |
|||||||||||||||
| Video and Image | ||||||||||||||||
| Main Stream | 50 fps (640 × 512) | |||||||||||||||
| Video Compression | H.265/H.264/MJPEG | |||||||||||||||
| Color Palettes | 18 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Winter, Summer, Blue Red |
|||||||||||||||
| Digital Zoom | ×2, ×4, ×8 | |||||||||||||||
| Radiometric Capture | Yes | |||||||||||||||
| Radiometric Infrared-Video Streaming (Compressed) |
Over RJ45/UVC, 640 x 512@50 fps | |||||||||||||||
| Network | ||||||||||||||||
| Protocols | IPv4,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP ,RTP,TCP,UDP,IGMP,ICMP,DHCP,ISUP,GB28181,ONVIF,modbusTCP,WebSocket,P PPoE,SRTP,OTAP |
|||||||||||||||
| Simultaneous Live View | Up to 20 channels | |||||||||||||||
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
|||||||||||||||
| Client | HIKMICRO Studio | |||||||||||||||
| Interface | ||||||||||||||||
| Alarm Input | 1, alarm input (0-3.3 V DC) | |||||||||||||||
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) | |||||||||||||||
| Analog Output | 1, CVBS output | |||||||||||||||
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (HIKVISION, PELCO-P, PELCO-D, modbusRTU, modbusASCII) 1, USB type-c port that supports the UVC protocol |
|||||||||||||||
| General | ||||||||||||||||
| Menu Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|||||||||||||||
| Power Supply | 12V DC, Max. 3.5 W | |||||||||||||||
| Working Temperature/Humidity | -20 °C to 60 °C 90% or less |
|||||||||||||||
| Protection Level | IP40 | |||||||||||||||
| Mount | M3 | |||||||||||||||
| Weight | 5mm : Approx. 168 g 10mm: Approx. 165 g 18mm: Approx. 161 g |
|||||||||||||||
| Dimensions | 5mm : 79.6 × 44.2 × 44.2 mm 10mm: 71.8 × 44.2 × 44.2 mm 18mm: 69.8 × 44.2 × 44.2 mm |
|||||||||||||||
Download
UD41992B_Hikmicro_Thermographic Network Box Camera_QSG_multilanguage_20250324.pdf QD610_Datasheet_en-US_20250507.pdf.pdf
