Description

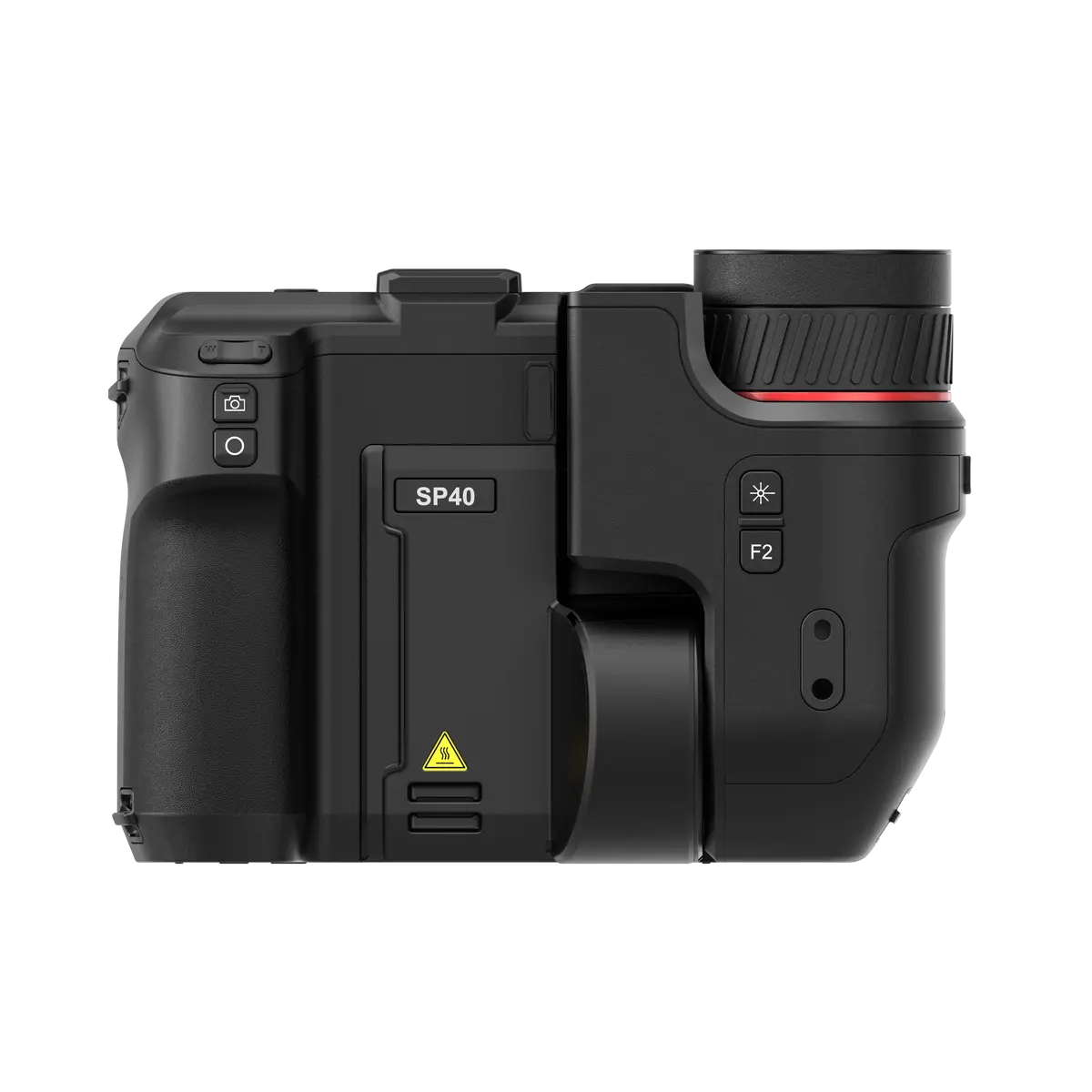

The HIKMICRO SP40 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO SP40 has a high sensitivity (NETD < 30 mK) and high resolution (480 × 360) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span.
Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
| Model | Description |
| SP40-L19 | 480×360, 18.7°×14°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder |
| SP40-L37 | 480×360, 37.3°×27.8°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder |
| SP40-L9 | 480×360, 9°×6.8°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder, LED light, Replaceable battery, HDMI, GPS, Wi-Fi, Laser range finder |
| SP40-L6 | 480×360, 6°×4.5°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder |
| SP40-L9/19 | 480×360, 9°×6.8° & 18.7°×14°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder |
| SP40-L9/37 | 480×360, 9°×6.8° & 37.3°×27.8°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder |
| SP40-L6/19 | 480×360, 6°×4.5° & 18.7°×14°, Auto/manual focus, NETD<30mk, 30 Hz, 8MP visible camera, -20~650℃, ±2℃/±2%, 128GB, 5” 1280×720 LCD touch screen with 90° tilting, 1024×768 OLED viewfinder |
Features
- Thermal resolution: 480 × 360 (172,800 pixels),NETD : ＜ 30 mK (@ 30 °C,F#=1.0)
- Temperature measurement range : -20 °C to 650 °C (-4 °F to 1202 °F)

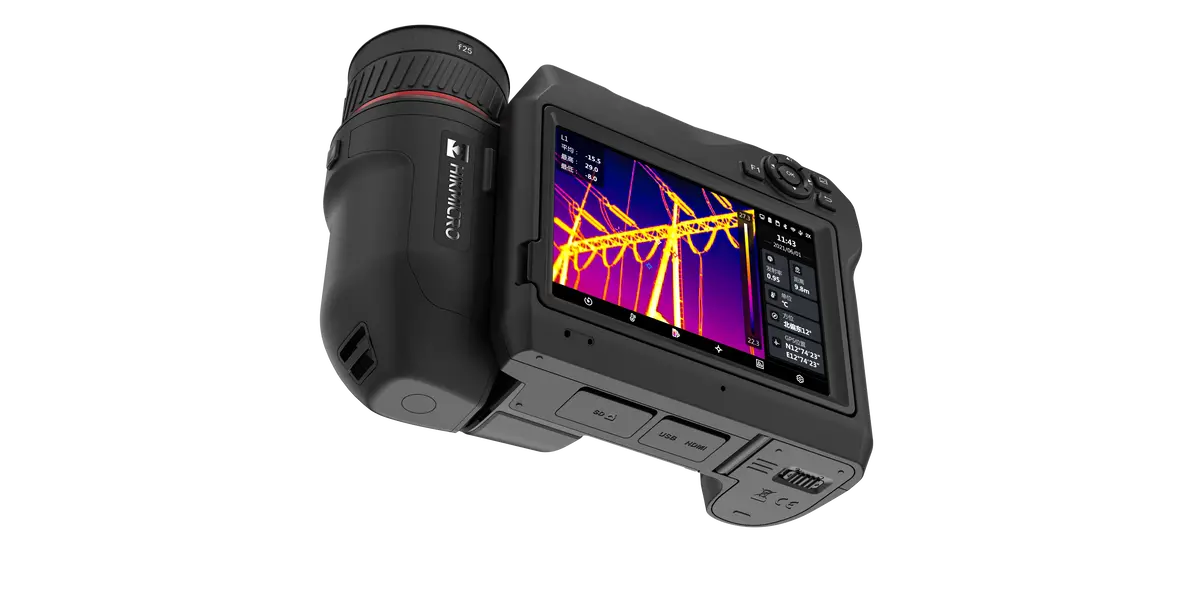

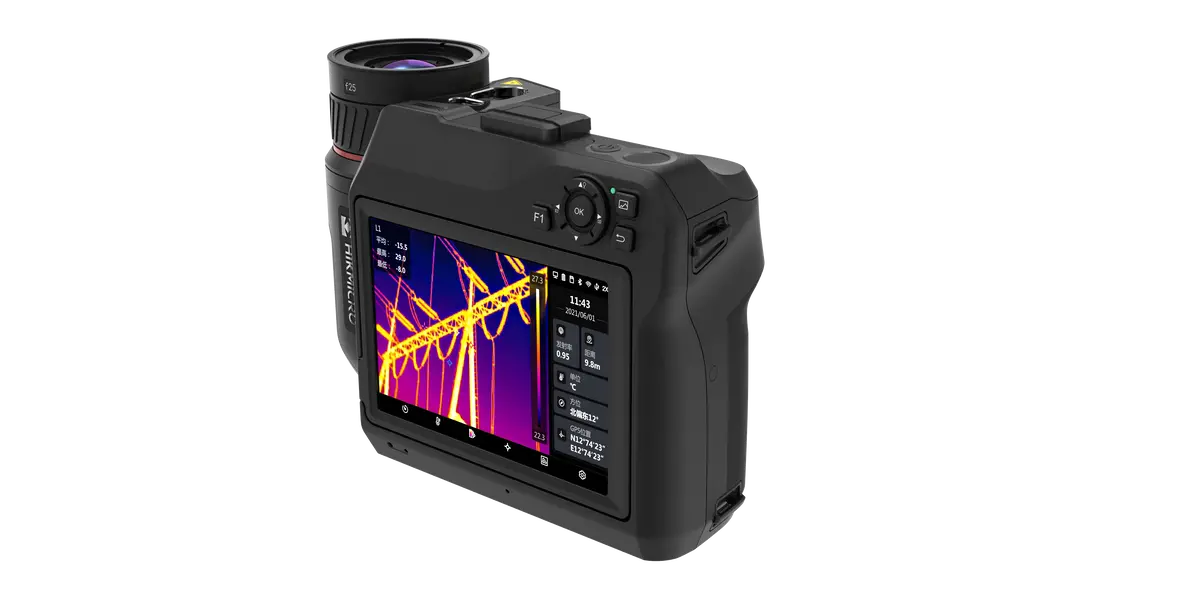

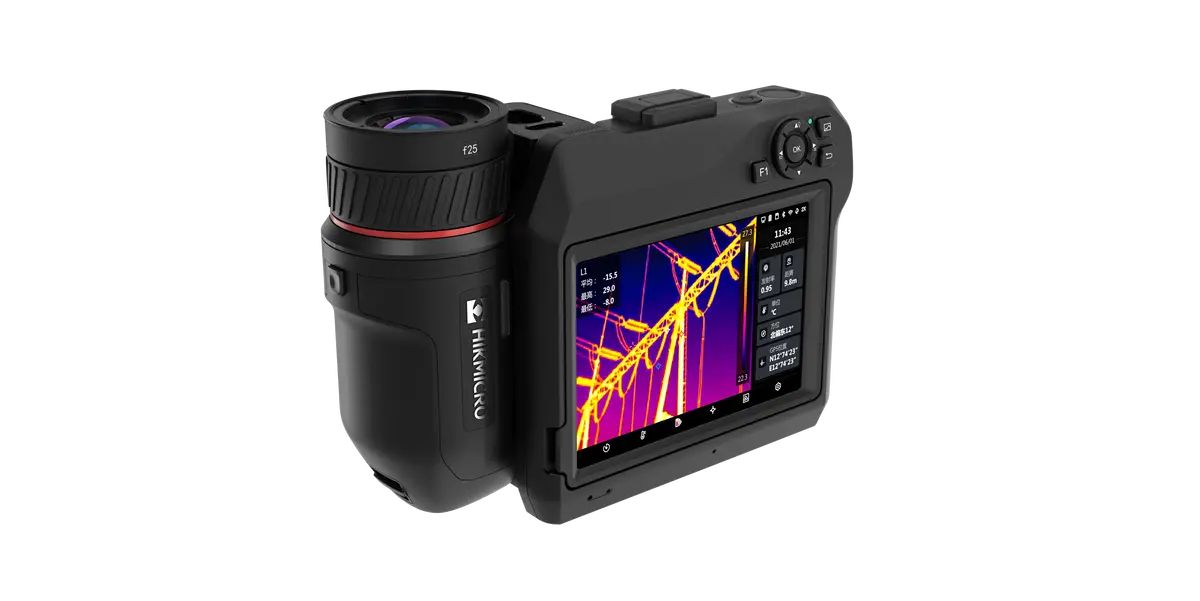

- The 90° rotating screen and the 180° rotating lens design
- 1.x to 12.x continuous digital zoom
- Manual, automatic, and 1-Tap Level and Span
- 30 Hz image frequency
- Up to 4 hours continuous running
| Infrared Image | ||||||||||||||||||||||||||
| IR Resolution | 480 × 360 (172,800 pixels) | |||||||||||||||||||||||||
| SuperIR | 960 x 720 (691,200 pixels) | |||||||||||||||||||||||||
| NETD | <30 mK (@ 30 °C, F#=1.0) | |||||||||||||||||||||||||
| Image Frequency | 30 Hz | |||||||||||||||||||||||||
| Detector Pitch | 17 μm | |||||||||||||||||||||||||
| Spectral Range | 7.5 to 14 μm | |||||||||||||||||||||||||
| Focal Length | L6: 77.4 mm; L9: 51.4 mm; L19: 25.6 mm; L37: 12.6 mm | |||||||||||||||||||||||||
| F-number | L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 | |||||||||||||||||||||||||
| Field of View (FOV) | L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° | |||||||||||||||||||||||||
| Spatial Resolution (IFOV) | L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad | |||||||||||||||||||||||||
| Min. Focus Distance | L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.15 m (0.49 ft); L37: 0.15 m (0.49 ft) | |||||||||||||||||||||||||
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | |||||||||||||||||||||||||
| Focus Speed | Approx. 1 second | |||||||||||||||||||||||||
| Image Display | ||||||||||||||||||||||||||
| Visual Camera | 3264 × 2448 (8 MP) | |||||||||||||||||||||||||
| Display | 1280 × 720 Resolution, 5” LCD Touch Screen | |||||||||||||||||||||||||
| Screen Brightness | Manual/Auto | |||||||||||||||||||||||||
| Digital Zoom | 1.x to 12.x continuous | |||||||||||||||||||||||||
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | |||||||||||||||||||||||||
| Focus Mode Palette | Above/Below/Interval | |||||||||||||||||||||||||
| Color Alarm | Above/Below/Interval/Insulation/Condensation | |||||||||||||||||||||||||
| Image Modes | Thermal/Visual/Fusion/PIP/Blending | |||||||||||||||||||||||||
| Viewfinder | No | |||||||||||||||||||||||||
| Measurement and Analysis | ||||||||||||||||||||||||||
| Object Temperature Range | Range 1: -40℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F) |
|||||||||||||||||||||||||
| Accuracy | Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C | |||||||||||||||||||||||||
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles |
|||||||||||||||||||||||||
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen | |||||||||||||||||||||||||
| Inspection Route | Yes | |||||||||||||||||||||||||
| SuperScene+ | Electrical Panel, PCB Inspection | |||||||||||||||||||||||||
| Data Storage and Communication | ||||||||||||||||||||||||||
| Image Storage Capacity | Approx. 130,000 Images (8MP) | |||||||||||||||||||||||||
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch |
|||||||||||||||||||||||||
| Video Storage Capacity | MP4 video max. 420h; Radiometric video max. 72h | |||||||||||||||||||||||||
| Video File Format | MP4 video and radiometric video |
|||||||||||||||||||||||||
| Image Format | Radiometric JPEG | |||||||||||||||||||||||||
| Radiometric Infrared-Video Streaming (Compressed) |
Over UVC, Wi-Fi | |||||||||||||||||||||||||
| Extendable Memory Card | Extendable 128 GB SD Card | |||||||||||||||||||||||||
| General | ||||||||||||||||||||||||||
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | |||||||||||||||||||||||||
| Bluetooth | Bluetooth 4.2 | |||||||||||||||||||||||||
| USB Interface | USB Type-C | |||||||||||||||||||||||||
| HDMI Interface | HDMI-D | |||||||||||||||||||||||||
| Laser Pointer | Yes | |||||||||||||||||||||||||
| Laser | Yes, Class II, Wavelength: 635 nm; Power: <1 mW | |||||||||||||||||||||||||
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). |
|||||||||||||||||||||||||
| GPS & Compass | Yes | |||||||||||||||||||||||||
| Battery Type | Interchangeable and rechargeable Li-ion battery | |||||||||||||||||||||||||
| Battery Operating Time | Approx. 4 hours | |||||||||||||||||||||||||
| Battery Charging Time | Approx. 2.5 hours fully charged | |||||||||||||||||||||||||
| Power Saving Mode | Yes | |||||||||||||||||||||||||
| Programmable Buttons | 2 | |||||||||||||||||||||||||
| Protection Level | IP54, IEC 60529 | |||||||||||||||||||||||||
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 | |||||||||||||||||||||||||
| Safety | IEC 61010-1 | |||||||||||||||||||||||||
| Vibration | 2 g, IEC 60068-2-6 | |||||||||||||||||||||||||
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 | |||||||||||||||||||||||||
| Shock | 25 g, IEC 60068-2-27 | |||||||||||||||||||||||||
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) | |||||||||||||||||||||||||
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) | |||||||||||||||||||||||||
| Relative Humidity | <95% non-condensing | |||||||||||||||||||||||||
| Dimension | 210.1 × 141.03 × 87.8 mm (8.27 × 5.55 × 3.45 in) | |||||||||||||||||||||||||
| Weight | Approx. 1451 g (3.2 lb) | |||||||||||||||||||||||||
| Tripod Mounting | UNC ¼”-20 | |||||||||||||||||||||||||
| Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | |||||||||||||||||||||||||
| LED Light | Yes | |||||||||||||||||||||||||
