Description
The New MagicLine Laser – Visible outdoors and Eye Safe. a world-first laser that is visitbompact high-performance module
The MagicLine laser is a new generation of high-powered laser, visible outdoors and only Laser Class 2M.
With an optical output power of 600 mW in compliance with laser class 2M safety standards, the ZQ1-MagicLine combines unrivalled performance with reliable safety.
This combination makes it the world’s brightest eye-safe laser in its class and sets new standards in laser technology.
Wherever high output power, excellent beam characteristics and industrial-grade design are required, the MagicLine is the right choice.
The user can manually focus the beam the optimum line witdth and visibility can be achieved. Combined with its intelligent monitoring functions, the laser allows for high power stability even in harsh environments. The integrated active peltier cooling supports this function by keeping the laser diode constantly in the optimal temperature range.
- Manually focusable
- Active cooling integrated
- TTL modulation up to 200 kHz
- Analog intensity control
- IP 67
- Certified according to the railway standard: DIN EN 61373:2011-04
- PC control via Graphical User Interface (GUI)
| Weight | 740 g |
|---|---|
| Dimensions | 158.5 × 65.2 × 51.5 mm |
| Wavelength |
520nm |
| Output power |
600 mW |
| Fan Angle |
70 degrees |
| Projection |
line |
| Focus |
manual focus |
| Modulation |
analog, digital |
| Supply voltage |
12 VDC – 24 VDC |
| IP protection class |
IP 67 |
| Applications |

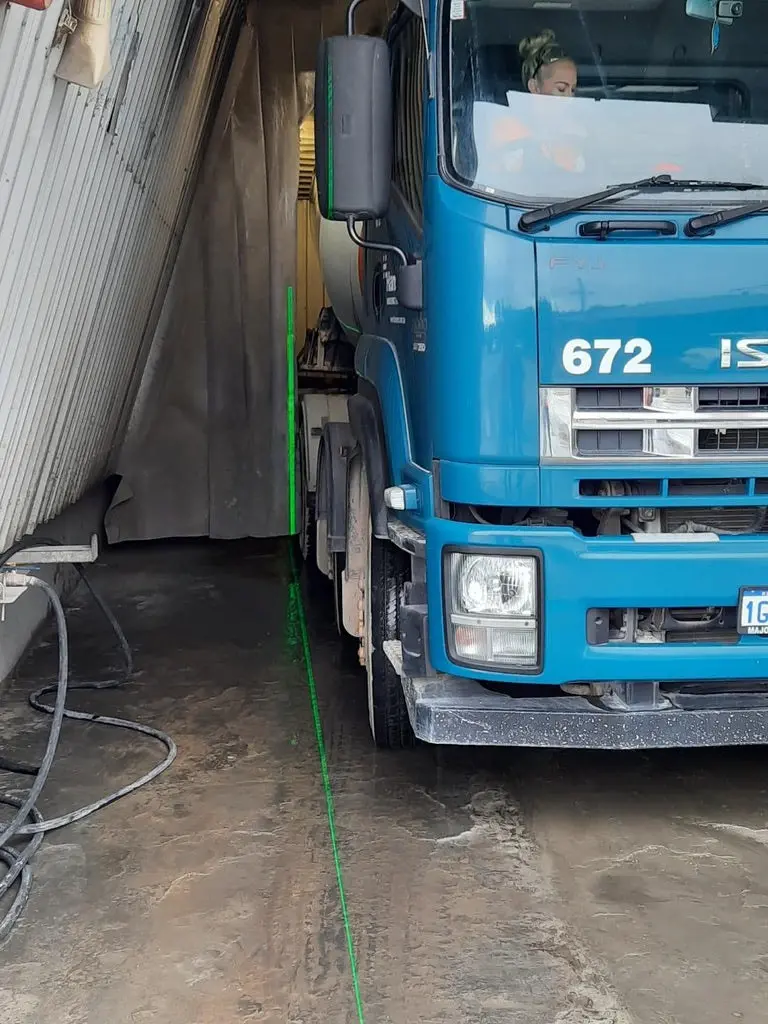

Transport & Logistics, Materials Processing (Timber, Glass, Stone), Machine Vision |
