Description
Oscilloscope and True RMS Multimeter
This high accuracy True RMS multimeter has a fast sampling time, built-in data logging and Trend Capture features, plus it includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements – all displayed on a colour TFT display! With TFT colour display, this meter enables the user to trace and identify problems on equipment, and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events! The meter is housed in a double moulded rubber casing with an IP67 waterproof design.
- CAT IV 600V and CAT III 1000V
- IP67 – Dust & Waterproof
- Large 50 000 Count 320 x 240 TFT colour LCD display/ Low pass filter
- 10MHz / 50MS/s Bandwidth/ Real time sample rate
- Logging function with Trend Capture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz Bandwidth (voltage/current)
- AC, AC+ DC, True RMS measurements
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- Motor winding and low ohm (500) measurement range
- The Meterbox software supports bluetooth products transferring the measured data to the customers’ smart phone
Accessories
Carrying Case

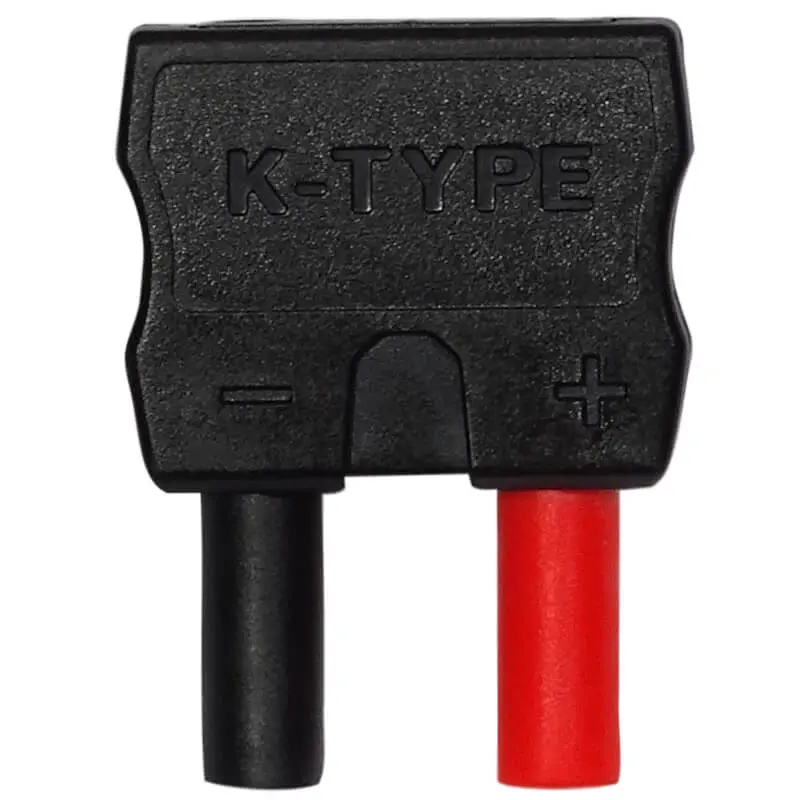

Temperature Probe
Battery Pack
Test Leads
Instruction Manual
Charger
Software
USB Cable
1 x Scope Probe
