Description

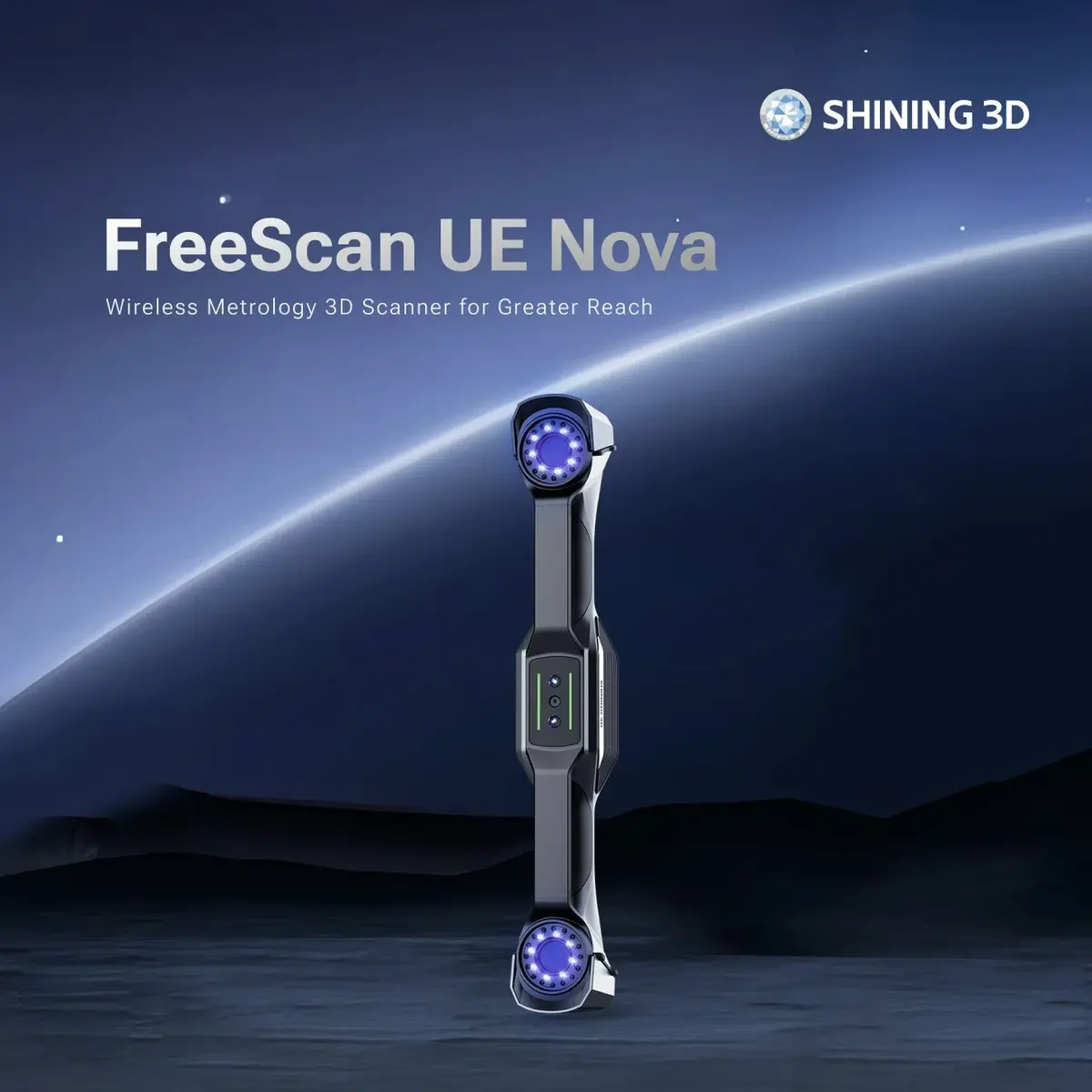

FreeScan UE Nova

Wireless Metrology 3D scanner for greater reach

• Extra-Large FOV of 2.6 × 2.2 m
• Ultra-Fast Scan Speed
• Integrated Video Photogrammetry (VPG)
• Complete Wireless

Wireless Metrology 3D Scanner for Greater Reach

FreeScan UE Nova sets a new standard in 3D scanning with its unmatched field of view, enabling highly efficient capture of large objects and significantly enhancing portability, productivity, and versatility.

Large-Scale Scanning Coverage

With an extra-large FOV of 2.6 × 2.2 m and a maximum scanning distance of 2.6 m, it is ideal for large-scale projects.

Ultra-Fast Scan Speed

50 laser lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.

Integrated Video Photogrammetry (VPG)

Utilizing SHINING 3D’s patented video-based photogrammetry without coded markers.

Flexible FOV

 Offers the flexible field of view depending on 3 selectable working range, adapt to different on-site operation conditions.

Wide-Range Laser Scan: Vast and Fast

FreeScan UE Nova offers expansive coverage, delivering unparalleled efficiency and flexibility.

• Large-scale scanning coverage: FOV of 2.6 × 2.2 m

• Maximum scanning distance of 2.6 m

50 Laser Lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.

Flexible FOV

FreeScan UE Nova offers the flexible field of view depending on three selectable working range, adapt to different on-site operation conditions.

• Near Mode (300 ~ 800 mm): For detailed work in tight spaces, allowing to capture intricate precise details.

• Standard Mode (600 ~ 1500 mm): For general-purpose scanning tasks, offering a balanced range for both speed and details performance.

• Far Mode (1200 ~2600 mm): For very large-scale objects, enabling you to cover expansive areas quickly.

Free to Scan, Built to Perform

• Integrated Wireless Modules: ensure real-time data transmission with high frame rates and stability.

• Swappable Batteries: features detachable and hot-swappable batteries for continuous scanning during long-time projects or in remote locations.

• Built-In Computing Modules: enable rapid and efficient processing. These onboard capabilities ensure fast, reliable results on the go.

Video Photogrammetry (VPG)

Utilizing SHINING 3D’s patented video-based photogrammetry (VPG) without coded markers, it integrates with a calibration rod for real-time marker verification, delivering volumetric accuracy of 0.072  + 0.012 mm/m for more efficient and reliable data acquisition.

• Learn More

Expand Possibilities with Trak Nova

Elevate your capabilities and tackle even the most complex work environments with FreeScan Trak Nova. Click below to discover more!

• Dynamic tracking

• Marker-free scanning

Technical Data

• VPGIncluded (no coded markers required)
• Accuracy0.072 mm
• Volumetric accuracy with VPG0.072 + 0.012 mm/m
• Resolution0.5 ~ 10 mm
• Scan speed4,600,000 point/s
• Flexible FOVUp to 2600 x 2200 mm
• FOV indicator of VPGIncluded
• High-speed scanIncluded
• Detailed scanIncluded (support near mode)
• Depth of field2300 mm (300 ~ 2600 mm)
• ConnectionWireless & Wired mode (fiber optic)
• Net weight1.6 kg
• CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
• Acceptance testVDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
