Suparule 190 – Cable Height Meter – Height Meter for Telecommunications and Electrical Industry

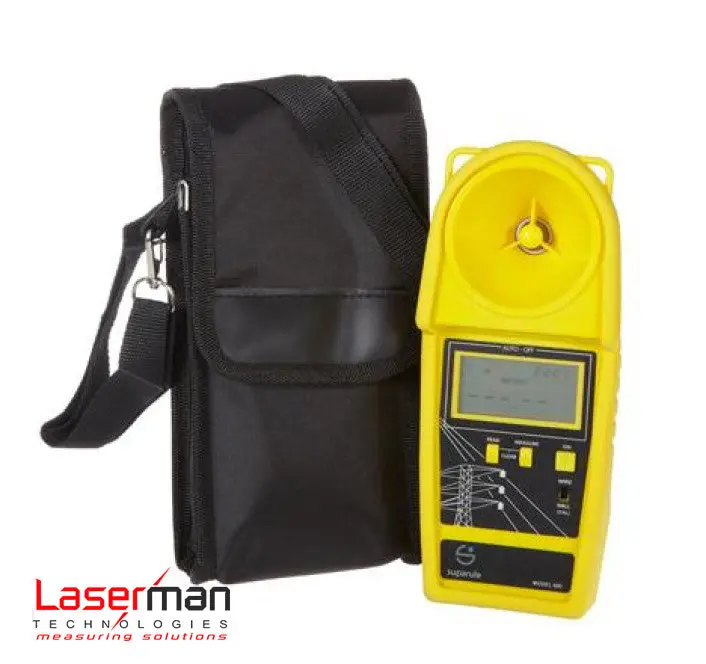

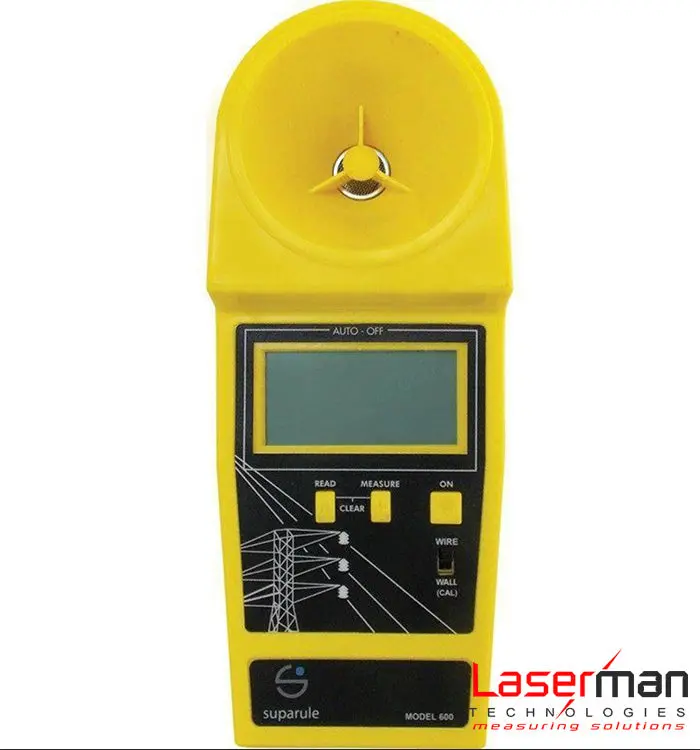

The SupaRule Cable Height Meter is a handheld meter for measurement of cable sag, cable height distance, and overhead clearance of conductors. It is a modern alternative to telescopic measuring poles. The SupaRule Cable Height Meter utilises ultrasonic signals to determine the height of overhead cables up to 15 meters (23 meters with the 600 model).
Used by line operators within the utilities industries, e.g., electricity and telecomunications, the CHM 190 measures the height of a single wire.
Since 1989, Suparule has used its considerable technical skills and resources to develop a number of unique technologies. These technologies have been patented and are now trademarked as SMF Technology™ (Suparule Magnetic Field Technology). The technologies are based on the measurement of the magnetic and electric fields generated from a current carrying conductor. The unique advantage of SMF Technology™ is that measurement is done non-invasively and the sensor rejects interference from other external fields. The solutions are achieved at a significantly lower cost, with higher accuracy levels than conventional measurement solutions.
How It Works
The Cable Height Meter emits short bursts of sound which originate from the cone-shaped transmitter. The microprocessor in the instrument calculates the elapsed time for the burst of sound to be reflected from the cable back to the instrument. The result can be displayed in either imperial or metric format.
To account for the fact that speed of sound varies with temperature, a temperature sensor, mounted at the front of the instrument, senses the actual air temperature, and automaticcaly compensates.
Applications include height measurement of:
- Telephone lines
- Distribution lines
- Transmission lines
- Cable television
- Street lighting
- SAG (lowest point to ground)
- Clearances on construction sites
Features & Benefits
- Quick Measurement– saves time and money
- Inherently Safe– no physical connection to cables or wires required to obtain measurement
- Extremely Accurate– measures to accuracy of 0.5%
- Ease of Use– simple, three button operation ensures fast, effective measurements with a minimum of operator training
- Compact Size– Its light weight and hand held portability allows easy transport and multiple measurements
Specifications
| Ambient Temperature = 20_C | SupaRule 190 |
| Range (25mm cable min) | 3 – 15m |
| Range (12mm cable min) | 3 – 15m |
| Range (5.5mm cable min) | 3 – 12m |
| Range (2.5mm cable min) | 3 – 10m |
| Number of wires measured | 1 |
| Accuracy | 0.5%_ 2 digits |
| Resolution (range <10m) | 5mm |
| Resolution (range >10m) | 10mm |
| Operating Temperature Range | -10_C to 40_C |
| Dimensions | 205 x 100 x 70mm |
| Weight | 0.5kg |
