Suparule 600 Cable Height Meter: Accurate and Easy Cable Height Measurement

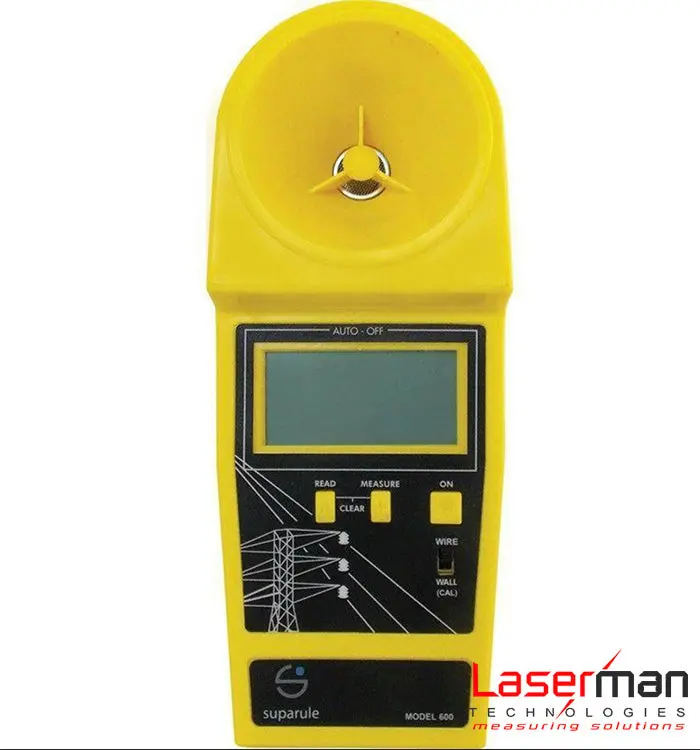

The SupaRule 600 Cable Height Meter is a handheld meter designed for the measurement of cable sag cable height distance and overhead clearance of conductors. The instrument is capable of measuring up to six cables and also features a ‘CAL’ mode which, when switched on, allows indoor use.
Since 1989, Suparule has used its considerable technical skills and resources to develop a number of unique technologies. These technologies have been patented and are now trademarked as SMF Technology™ (Suparule Magnetic Field Technology). The technologies are based on the measurement of the magnetic and electric fields generated from a current carrying conductor. The unique advantage of SMF Technology™ is that measurement is done non-invasively and the sensor rejects interference from other external fields. The solutions are achieved at a significantly lower cost, with higher accuracy levels than conventional measurement solutions.
Operation of the device is simple. Simply press ‘ON’ to power up the instrument and ‘MEASURE’ to obtain a reading.
Features
- Quick measurement
- Inherently safe: no physical connection to cable s or wire required to obtain measurement
- Extremely accurate
- Proven reliability
- Easy to use – three button operation
- Small & compact making it easily transportable
- Maintenance free
- Battery life: 50,000 measurements
- Dimensions: 205 x 100 x 70mm / 8.5 x 4 x 3 in
- Weight: 0.5kg / 1.1lb
Applications
- Telephone lines
- Distribution lines
- Transmission lines
- Cable television
- Street lighting
- SAG (lowest point to ground)
- Clearances on construction sites

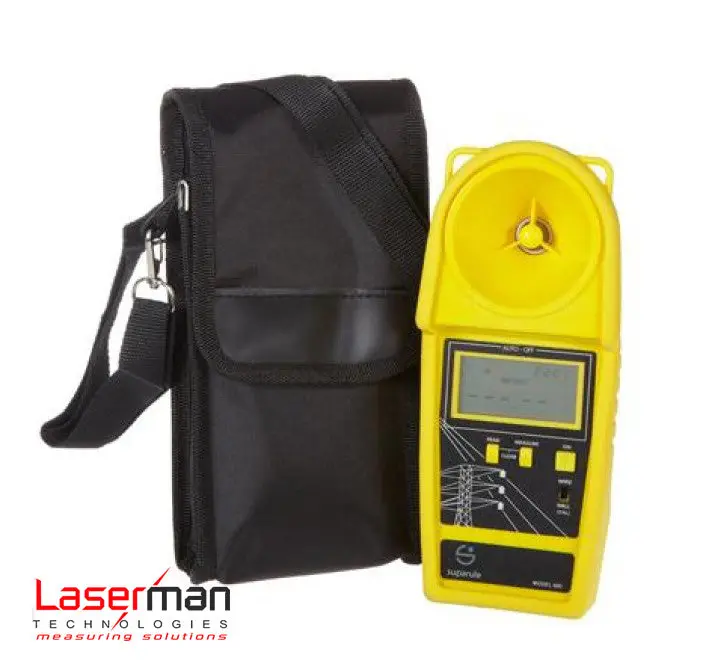

Package Includes
- Rubber boot
- Holster
- User manual
Technical Information & Downloads
Power Point
- Powerpoint Presentation
Datasheet
- Cable Height Meter Datasheet
User Manual
- Cable Height Meter User Manual
Application Notes
- CHM Instruction
- CHM Resolution
- CHM Application Notes
- CHM Measures more than cables
Cable Height Meter Instruction Video
