Topcon RL-H5A Precision Rotary Laser Level with Compatible Receiver

Description

RL-H5A Rotating Laser Level with Receiver

Options to choose

• RL-H5A with LS80X – Dry Battery
• RL-H5A with LS80X – Rechargeable

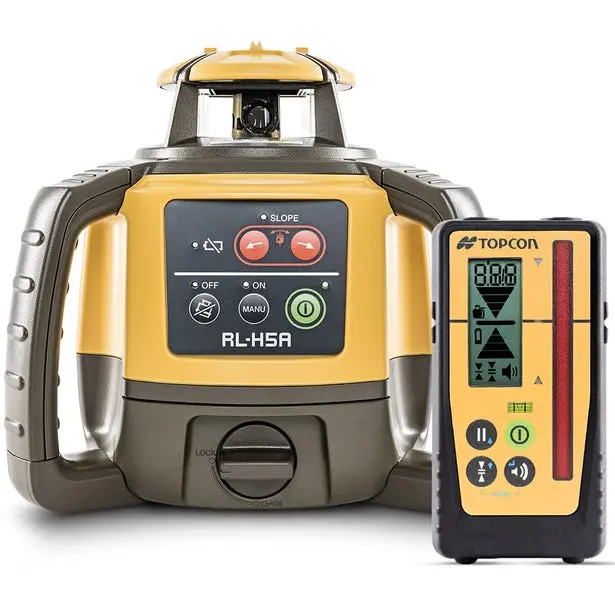

• RL-H5A with LS100D – Rechargeable
• RL-H5A with LS100D – Dry Battery

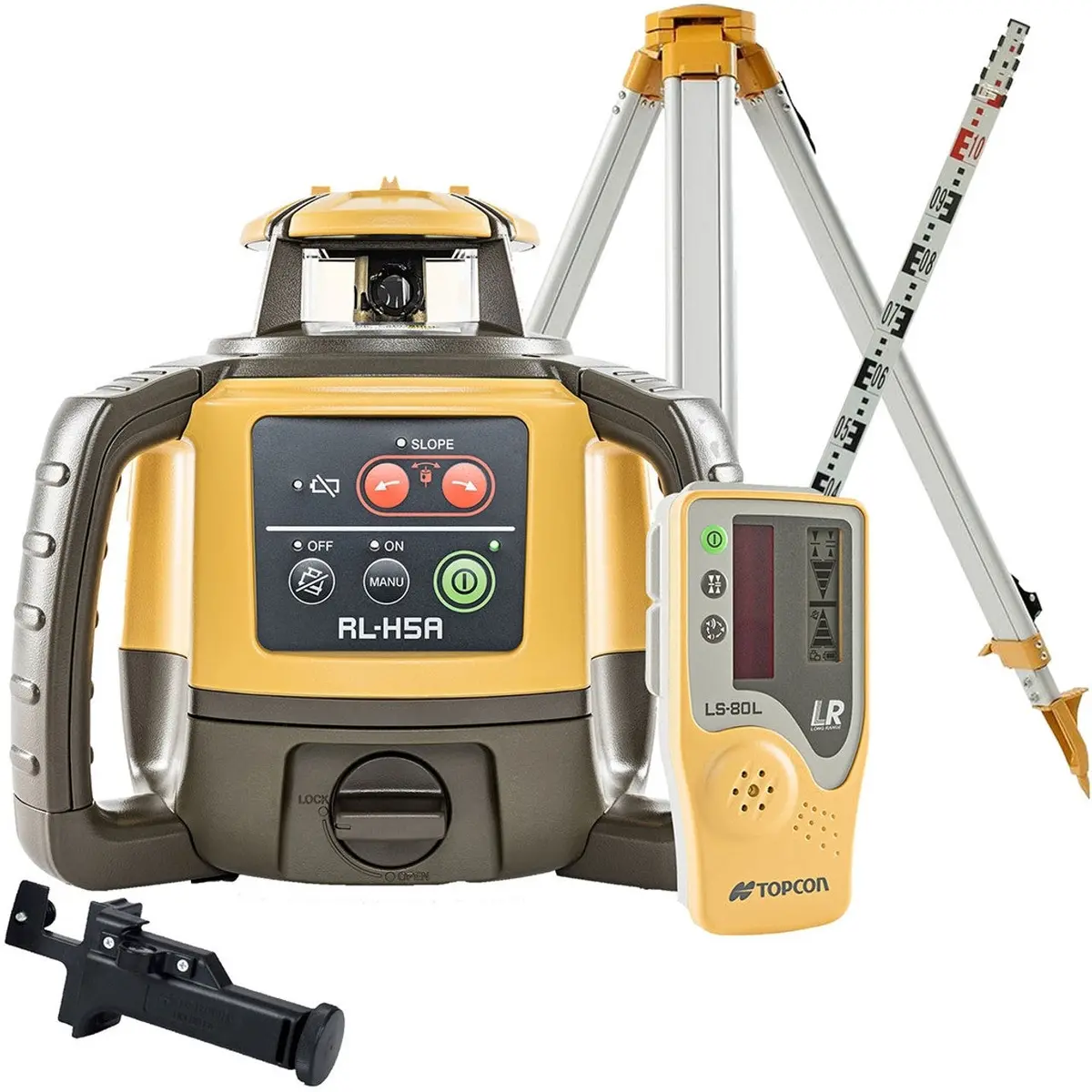

• RL-H5A with LS-80X – Dry Battery Build-Combo2_T (ML400 Dome Top Tripod & 5m E Face Staff

THE NEXT STEP IN DISTANCE AND ACCURACY

The new RL-H5A is the replacement for Topcon’s market-leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.

Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine mounted laser sensor.

The RL-H5A’s popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds.

The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover an 800m (diameter) job site. With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (not included), or 60 hours with the included rechargeable (Ni-MH) battery pack.

The RL-H5A is “job site tough” and with its IP66 rating, the unit can withstand dust, a sudden shower, and even torrential rainfall.

FEATURES

• Long-range operation (800 m)
• Smart long-range receiver
• Simple, intuitive manual slope capability
• ±10 Arc second horizontal accuracy
• Extra-long battery life (100 hours)
• Tough IP66 weatherproof rating

INCLUDES

• Topcon RL-H5A (RB) Rotating Laser Level
• Topcon Receiver Clamp
• Carry Case
• Operator Manual

SPECIFICATION

Accuracy	H: ±10 arc seconds
Self-Levelling Range	Horizontal ±5°
Working Area	800m
Rotation Speed	600 rpm
Dust/Water Rating	IP66
Operating Time	Alkaline (100 hours) ; Ni-MH (60 hours)
Operating Temperature	-20°C to 50°C
