Description

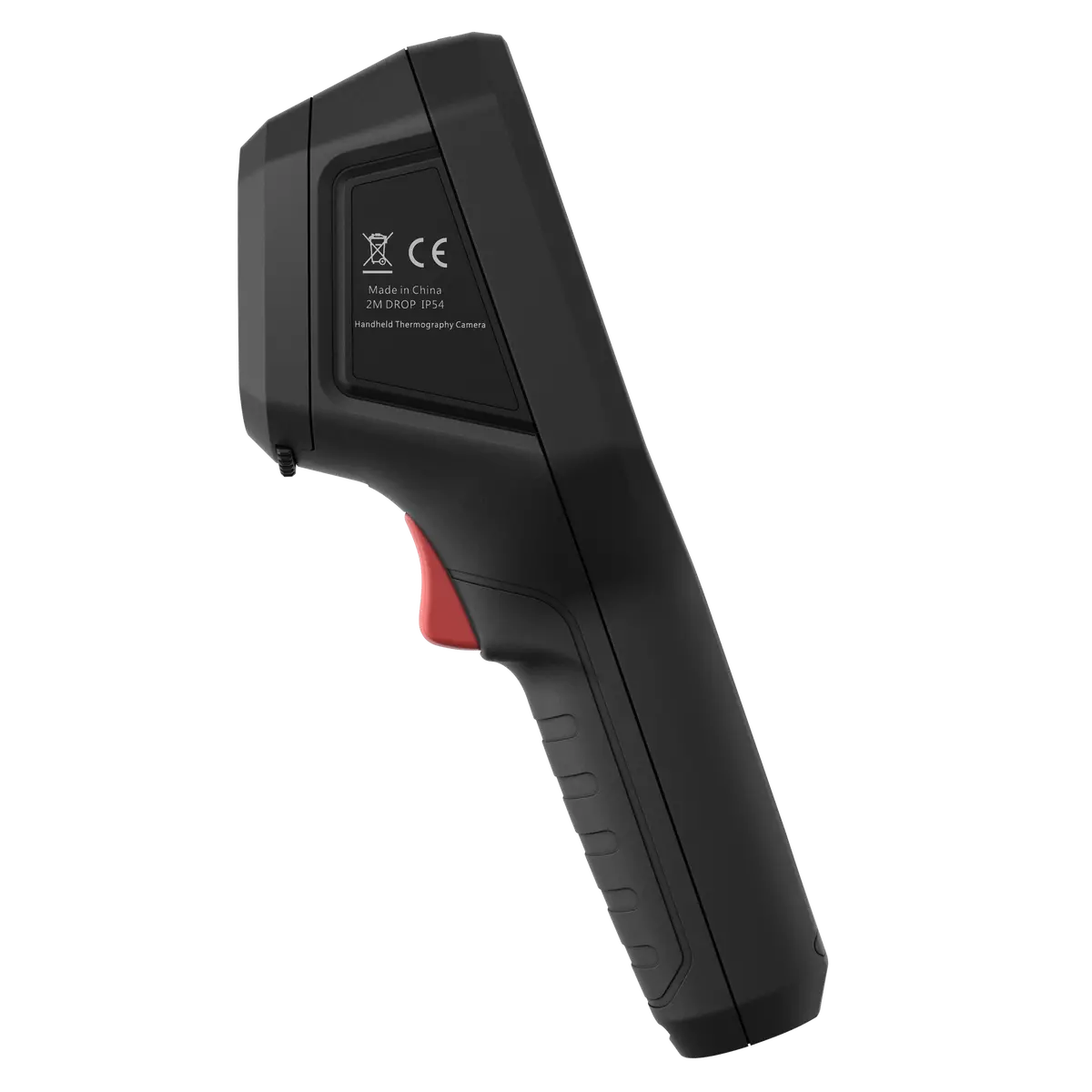

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.
Key Features
- IR resolution: 256 x 192 (49 152 pixels), 2MP Visual Resolution
- Support SuperIR image enhancement technology
- NETD : ＜40 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2″ 480 × 640 Resolution LCD Screen
- Up to 6 hours continuous running
Specification
| Infrared Image |
| IR Resolution 256 × 192 (49,152 pixels) |
| SuperIR Yes, on captured images and live view |
| NETD < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency 25 Hz |
| Detector Pitch 12 μm |
| Spectral Range 7.5 to 14 μm |
| Focal Length 3.6 mm |
| F-number F1.0 |
| Field of View (FOV) 37.2° × 50.0° |
| Spatial Resolution (IFOV) 3.3 mrad |
| Min. Focus Distance 0.3 m (0.98 ft) |
| Focus Mode Focus Free |
| Image Display |
| Visual Camera 1600 × 1200 (2 MP) |
| Display 480 × 640 Resolution, 3.2″ LCD Screen |
| Color Alarm Above alarm |
| Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Image Modes Thermal/Visual/Fusion/PIP |
| Measurement and Analysis |
| Object Temperature Range Range -20°C to 150°C (-4°F to 302°F) |
| Range 100°C to 550°C (212°F to 1022°F) |
| Accuracy |
| Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15° C to 35°C (59°F to 95°F) |
| and object temperature above 0°C (32°F) |
| Measurement Tools Center Spot, Hot Spot, Cold Spot |
| User-definable: 3 spots |
| Level and Span Mode Auto/Manual |
| Data Storage and Communication |
| Storage Media Built-in 16G eMMC (user available storage space is less than the nominal |
| capacity) |
| Image Storage Capacity Approx. 35,000 Images |
| Image File Format Radiometric JPEG |
| General |
| Wi-Fi 802.11 b/g/n (2.4GHz) |
| USB Interface USB Type-C |
| LED Light Yes |
| Power Supply USB-C (5V/2A) |
| Battery Type Rechargeable Li-ion battery |
| Battery Operating Time Approx. 6 hours |
| Battery Charging Time Approx. 3 hours fully charged |
| Protection Level IP54 |
| Drop Test Height 2 m (6.56 ft) |
| Working Temperature Range -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity < 95% non-condensing |
| Weight Approx. 380 g (0.84 lb) |
| Dimension 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in) |
| Tripod Mounting UNC ¼”-20 |
Downloads
- B20S_Datasheet_en-US_20250107.pdf
- B20S_Flyer_en-US_20240920.pdf
