Description
Thermal imaging camera for Android and iOS (USB Type-C / Lightning) with manual focus (field of view 25° × 18.8°), IR resolution of 256 x 192 (49,152 pixels), temperature range -20 to + 400 °C.

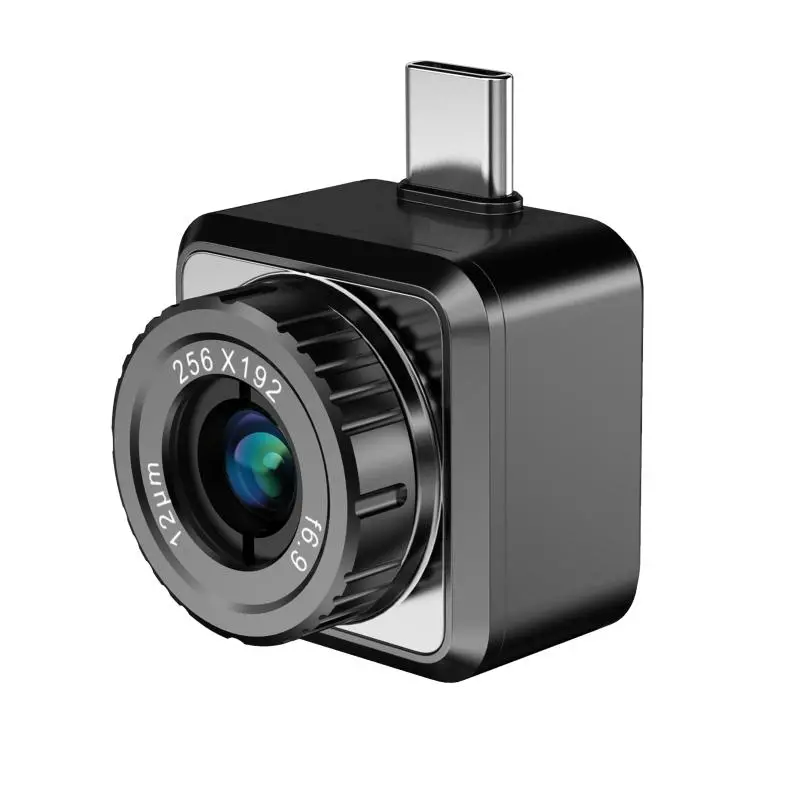

The HIKMICRO Mini2Plus V2 thermal imaging camera for Apple & Android is compact yet powerful. It weighs only 24 g and has a USB-C interface so it can be easily connected to your smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there’s no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
| Mini2 V2 | Mini2Plus V2 | |
|---|---|---|
| Dimensions | 42 X 22.5 X 11.2 mm | 26.6 X 26.6 X 25 mm |
| Field of View | 50° X 37.2° | 25° X 18.8° |
| Focus | Focus Free | Manual Focus |
Key Features
- Thermal resolution: 256 x 192 (49,152 pixels)
- SuperIR image enhancement technology on live view and captured images
- 3-in-1: USB-C (iOS & Android), Lightning (Includes a Lightning to USB-C adapter)
- NETD: <40 mK (@ 25 °C, F#=1.0)
- Accuracy: ±2 ℃ (-20 °C to 100 °C); ±2% (100 °C to 400 °C)
- Weight: 20 g or 24 g
- Compatible with the latest iPhone15 series and Android devices
- Manual focus or focus-free depending on the model
- 50° wide-angle field of view (Mini2 V2)
- Manual focus for close-up inspections and small objects (Mini2Plus V2)
- Temperature range: -20°C to 400°C (-4°F to 752°F)
- PIP mode, custom palettes, and 15 preset colour palettes
- Battery-free design powered directly by your smartphone
- Durable IP40-rated aluminium alloy housing
- Lightweight and compact design for portability
- Real-time data sharing and reporting via the HIKMICRO Viewer and Analyzer apps
- Drop-tested for durability up to 1 meter (3.3 ft)
- Ideal for applications like HVAC, electrical inspections, and building diagnostics
Includes
- Mini2 V2 or Mini2Plus V2 Module
- Carry case
- Extension cord
- Extra long lightning adaptor
- Extra long Type-C adaptor
Downloads
- Mini2Plus V2_Datasheet_en-US_20250207.pdf
- Mini Series_Flyer_en-US_20240925.pdf
